Volkswagen ID.4: Preparing and Performing a Jump-start

• Preparations
• Jump-starting
• Removing the jumper cables

Preparations

When performing a jump-start procedure on the Volkswagen ID.4, always follow these preparation guidelines carefully to ensure safety and prevent damage to the vehicle’s electrical system:

• Wear appropriate protective equipment such as safety gloves and eye protection → .
• Always follow the instructions provided by the manufacturer of the jumper cables being used.
• Open the hood of the Volkswagen ID.4 and ensure adequate access to the jump-start points.
• Use only high-quality jumper cables with fully insulated clamps and no visible damage or insulation defects → .
• Ensure sufficient distance between the Volkswagen ID.4 and the assisting vehicle to avoid unintended electrical flow during connection.
• Confirm that all terminal clamps make solid contact with clean metal surfaces for optimal conductivity.

Jumper cable

To safely jump-start the Volkswagen ID.4, it is essential to use a properly rated jumper cable suitable for modern electric vehicle systems.

The cable used must meet the following minimum requirements:

• For vehicles with an electric drivetrain like the Volkswagen ID.4, the jumper cable must have a minimum cross-section of 25 mm2 (0.038 in2) to handle the required current safely.

Vehicle Receiving the Jump-start

1. Verify that the discharged 12 V battery in the Volkswagen ID.4 is correctly connected to the vehicle’s electrical system.

2. If the battery includes a visual indicator window, check its condition. If the indicator shows light yellow or no color, do not attempt a jump-start and contact an authorized Volkswagen dealer or service facility.

Vehicle Providing the Jump-start

1. Follow the operating instructions of the assisting vehicle.

2. Ensure the donor vehicle battery matches the Volkswagen ID.4 requirements: 12 V and similar capacity. Always check the specifications printed on the battery.

Jump-starting

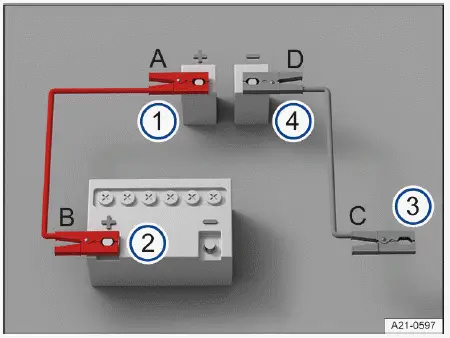

Fig. 1 Diagram for connecting the jumper cables.

1. Positive jump-start point of the Volkswagen ID.4 receiving the jump-start.
2. Positive terminal of the assisting vehicle’s battery.
3. Negative terminal of the assisting vehicle, preferably a designated ground point or engine block.
4. Negative jump-start point of the Volkswagen ID.4.

Always connect the jumper cables in the exact sequence A - B - C - D → fig. 1 to avoid sparks or system damage.

1. Switch off the ignition in both vehicles.

2. Open the protective cover over the positive jump-start terminal (+) in the Volkswagen ID.4 hood space.

3. Connect one end of the red jumper cable to the positive jump-start point (+) of the Volkswagen ID.4 → fig. 1 -1- → .

4. Connect the other end of the red cable to the positive terminal (+) of the assisting vehicle → fig. 1 -2-.

5. Connect one end of the black jumper cable to the negative terminal (-) or a suitable grounding point on the assisting vehicle → fig. 1 -3-.

Alternatively, if no dedicated ground point is available, connect to a solid metal part fixed to the engine block.

6. Connect the remaining end of the black jumper cable to the negative jump-start point of the Volkswagen ID.4 → fig. 1 -4- → .

7. Carefully route all cables to ensure they cannot come into contact with moving components in the engine compartment.

Activating the vehicle's drive system

1. Start the engine of the vehicle supplying the current and allow it to idle steadily.

2. Activate the drive system of the Volkswagen ID.4. If the system does not engage, stop after approximately 10 seconds and retry after about one minute.

If the Volkswagen ID.4 still cannot be started, contact an authorized Volkswagen dealer or qualified service center for further diagnosis.

Removing the jumper cables

When disconnecting jumper cables from your Volkswagen ID.4 after a successful jump-start, it is essential to follow the correct procedure to avoid voltage spikes and protect sensitive electrical components.

1. Before disconnecting the jumper cables, switch off the low beam headlights in the Volkswagen ID.4 if they are on.

2. In the vehicle with the discharged 12 V battery, activate electrical consumers such as the air conditioning blower and rear window defroster. This helps stabilize the electrical system and reduce voltage surges during disconnection.

3. Once the Volkswagen ID.4 has been successfully jump-started, disconnect the jumper cables strictly in reverse order: D - C - B - A → fig. 1.

4. Close the protective cover over the positive jump-start terminal (+) in the hood space, if equipped.

After jump-starting the Volkswagen ID.4, it is strongly recommended to have the 12 V battery inspected by an authorized Volkswagen dealer or qualified service facility to ensure long-term reliability.

WARNING

Incorrect jump-start procedures on the Volkswagen ID.4 can cause the 12 V battery to explode, leading to serious injuries.

• Always wear protective gloves and safety goggles.
• Never lean directly over the 12 V battery while working.
• Always connect the positive cable first, followed by the negative cable.
• Never attach the negative cable to brake lines or other unsuitable components.
• Ensure that exposed metal parts of the clamps do not touch each other.
• Only use jumper cables with intact insulation.
• Ensure the positive cable does not come into contact with conductive vehicle parts.

NOTICE

A discharged 12 V battery in the Volkswagen ID.4 may freeze at temperatures around 0 ºC (32 ºF), which can cause irreversible damage.

• Always replace a battery that has frozen or thawed.

Introduction

Towing a Volkswagen ID.4 requires experience and careful handling, especially when using a tow rope. Both drivers involved should be familiar with towing procedures. Inexperienced drivers should avoid towing operations whenever possible.

Always comply with local laws and regulations when towing a vehicle.

Ensure that towing forces remain within permissible limits and avoid sudden jerks or shock loads, particularly when driving on uneven terrain.

When off-road, there is an increased risk of excessive stress on towing connections.

WARNING

Towing a Volkswagen ID.4 significantly affects vehicle handling and braking performance. This can lead to loss of control and result in serious or fatal injuries.

• Be aware that increased effort is required for steering and braking during towing.

WARNING

If a Volkswagen ID.4 without electrical power is towed, the electronic steering lock may engage unexpectedly, preventing steering and causing dangerous situations.

• Never switch off the ignition using the start button while the vehicle is being towed.
• If power is lost during towing, stop immediately and seek assistance from an authorized Volkswagen service center.

NOTICE

Improper pushing of the Volkswagen ID.4 by hand can damage exterior components such as taillights, body panels, and the rear spoiler.

• Do not apply force to taillights, spoilers, or large body panels when moving the vehicle manually.

Towing

Towing refers to using another vehicle to move a Volkswagen ID.4 that is no longer drivable.

The Volkswagen ID.4 can be towed using either a tow bar or a tow rope under the following conditions:

• Maximum permissible speed: 50 km/h (30 mph).
• Maximum permissible towing distance: 50 km (30 miles).

The safest and most stable method for towing a Volkswagen ID.4 is with a tow bar. A tow rope should only be used if a tow bar is not available.

If using a tow rope, it should be elastic to absorb shock loads and protect both vehicles. Synthetic rubber or similar flexible materials are recommended.

Towing with a tow truck

For maximum safety, the Volkswagen ID.4 should be transported with all four wheels off the ground using a tow truck platform.

WARNING

Incorrect attachment of tow ropes or tow bars can cause severe damage to the Volkswagen ID.4 and increase the risk of accidents.

• Always attach towing equipment only to designated mounting points.
• Never attach towing equipment to axle or suspension components.
• If necessary, contact an authorized Volkswagen dealer or service facility to arrange professional towing.
