Volkswagen ID.4: Limits of the sensor system

• Limits of the radar sensor
• Limits in certain driving situations

Limits of the radar sensor

Driver assistance systems in the Volkswagen ID.4 that rely on radar sensors may not respond, may react with a delay, or may behave unpredictably in certain situations. Understanding these limitations is essential for safe operation.

• When driving the Volkswagen ID.4 in adverse weather conditions such as heavy rain, snow, or dense spray.
• When passing through construction zones, tunnels, or toll stations.
• On winding or mountainous roads with sharp curves.
• Before road crests, bumps, or dips.
• During off-road driving or on uneven terrain.
• When driving in parking structures or ramps.
• On roads containing metal elements, such as railway tracks.
• On loose surfaces like gravel roads.
• In complex traffic environments, such as traffic islands or intersections.
• After strong impacts affecting radar components, such as rear-end collisions.
• If radar sensors on the Volkswagen ID.4 are dirty, obstructed, misaligned, or damaged.

Limits of the camera behind the windshield

The camera-based systems in the Volkswagen ID.4 may also be affected by environmental and visibility conditions, leading to delayed or inaccurate responses:

• Before road crests or depressions.
• In construction zones with unclear lane markings.
• During off-road driving.
• In poor weather conditions such as fog, snow, heavy rain, or spray.
• In low sunlight, darkness, or glare from oncoming traffic.
• When the camera is exposed to prolonged heat or direct sunlight.
• If the camera view is blocked, dirty, or damaged.
• If the camera is incorrectly aligned.

Delayed reaction

If the sensor system of the Volkswagen ID.4 is affected by environmental factors, driver assistance functions may only detect limitations after a delay. As a result, warning messages or system notifications may appear later than expected when starting or during driving.

Limits in certain driving situations

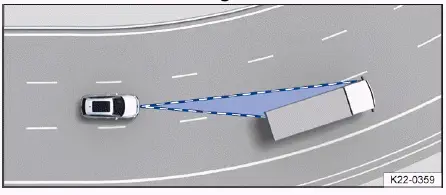

Fig. 1 Driving around curves.

The sensor system in the Volkswagen ID.4 primarily monitors straight ahead. On tight curves, vehicles may not be detected correctly or may be detected inaccurately.

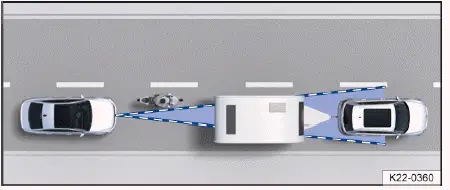

Fig. 2 Narrow vehicle.

Vehicles traveling close to the Volkswagen ID.4 but outside the sensor detection area, such as motorcycles, may not be recognized.

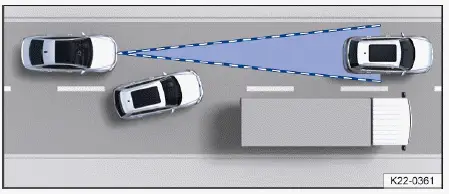

Fig. 3 Changing lanes.

Vehicles that move into your lane at short distance may not be detected in time. This also applies to vehicles carrying loads that extend beyond their standard dimensions.

Specific system limitations

In addition to general sensor limitations, each driver assistance feature in the Volkswagen ID.4 has its own operational limits. Always consider the specific behavior of the following systems:

• Predictive speed limiter (→ Speed limiter with predictive control).
• Eco assist (→ Eco assist).
• Adaptive Cruise Control (ACC) (→ Adaptive Cruise Control (ACC)).
• Predictive cruise control (→ Predictive cruise control).
• Autonomous Emergency Braking (Front Assist) (→ Autonomous Emergency Braking (Front Assist)).
• Lane Assist (→ Lane Keeping System (Lane Assist)).
• Comfort drive Travel Assist (→ Comfort drive Travel Assist).
• Emergency Assist (→ Emergency Assist).
• Lane Change System (Side Assist) (→ Lane Change System (Side Assist)).

Introduction

The cruise control system in the Volkswagen ID.4 is designed to maintain a constant speed and improve driving comfort during long journeys.

Speed range

The cruise control system in the Volkswagen ID.4 can be activated at speeds above approximately 20 km/h (around 15 mph) when driving forward.

Driving with the Cruise Control System

You can override the stored speed in the Volkswagen ID.4 at any time, for example when overtaking another vehicle. During acceleration, the system pauses speed regulation and then resumes the preset speed automatically.

Displays

When the cruise control system is active, the instrument cluster in the Volkswagen ID.4 shows the stored speed and system status.

The following indicator lights may appear depending on driving conditions and display configuration:

Cruise control system active, speed regulation engaged.

If the cruise control system is not actively regulating speed, the indicator appears dimmed or grey.

If no speed is stored, the display shows --- instead of a value.

Driving downhill

The Volkswagen ID.4 may not always maintain the preset speed when driving downhill. Drivers should remain prepared to apply the brakes when necessary.

1. Use the regenerative braking capability of the electric drivetrain to control speed on long descents.

This helps reduce strain on the conventional braking system.

WARNING

If safe driving with a constant speed and sufficient distance is not possible, using cruise control in the Volkswagen ID.4 can increase the risk of accidents and serious or fatal injuries.

• Always adjust speed and following distance according to traffic, weather, and road conditions.
• Do not use cruise control when visibility is poor or roads are steep, winding, flooded, or slippery.
• Never use cruise control when driving off-road or on unpaved surfaces.

The advanced sensor and assistance systems in the Volkswagen ID.4 enhance driving safety and comfort, but they require proper understanding and responsible use by the driver at all times.
