Volkswagen ID.4: Charging socket, with separate charging cable

•  Assembly overview - charging socket
• Removing and installing high-voltage battery charging socket 1 [UX4]
• Removing and installing actuator for high-voltage charging socket lock 1 [F498]

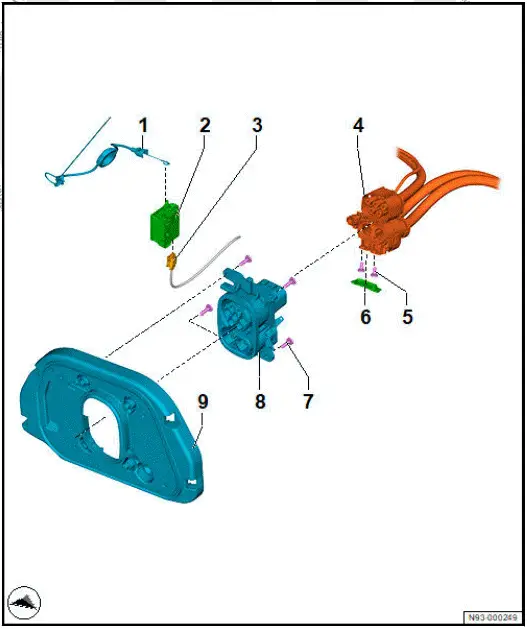

 Assembly overview - charging socket

1. Bowden cable
2. Actuator for high-voltage charging socket lock 1 - F498-

• ⇒ Rep. gr. 93 ; Removing and installing actuator for high-voltage charging socket lock 1 [F498]

3. Electrical connector
4. Charging cable
5. Bolt

• Qty. 2
• 7.5 Nm

6. Cover
7. Bolt

• Qty. 4
• 8 Nm

8. High-voltage battery charging socket 1 - UX4-

• ⇒ Rep. gr. 93 ; Removing and installing high-voltage battery charging socket 1 [UX4]

9. Charging socket holder

Removing and installing high-voltage battery charging socket 1 [UX4]

The high-voltage battery charging socket 1 - UX4- will henceforth be referred to as "charging socket".

Removing

DANGER

High voltage can cause fatal injury.

Danger of severe or fatal injuries from electric shock or electric arcs.

• Have a high-voltage technician (HVT) or a high-voltage expert (HVE) de-energise the high-voltage system.

CAUTION

The high-voltage battery can become extremely hot. This can cause injuries.

Take care not to burn your hands.

• Put on protective gloves.

• ⇒ Rep. gr. 93 ; De-energise high-voltage system .

• Remove charging flap unit ⇒ General body repairs, exterior; Rep. gr. 55 ; Charging flap unit; Removing and installing charging flap unit .
• Remove rear right wheel housing liner ⇒ General body repairs, exterior; Rep. gr. 66 ; Wheel housing liner; Removing and installing rear wheel housing liner .

Important

• High-voltage wire -2- must be detached before disconnecting charging socket in wheel housing.
• Unclip clips -1- and -3- in area of wheel housing.
• Unscrew nut -4-.

• Remove soiling from electrical connectors using lint-free cleaning cloth and cleaning solution ⇒ Electronic parts catalogue (ETKA) .
• Disconnect electrical connector -1- at top.
• Disconnect electrical connectors -2- and -5-.
• Detach Bowden cable -3- from actuator for high-voltage charging socket lock 1 - F498- -4-.
• Lever off cover -6-.

• Release charging socket holder -1- in direction of -arrow-.

• Unscrew bolts -1-.
• Disconnect high-voltage cable.

• Unscrew bolts -3-.
• Detach charging socket -2- from holder -1-.

Installing

Install in reverse order of removal, observing the following:

WARNING

High voltage can cause fatal injury.

Danger of severe or fatal injuries from electric shock or electric arcs.

• Have a high-voltage technician (HVT) or a high-voltage expert (HVE) re-energise the high-voltage system.

• ⇒ Rep. gr. 93 ; Re-energise high-voltage system .

Tightening torques

• ⇒ Rep. gr. 93 ; Assembly overview - charging socket

Removing and installing actuator for high-voltage charging socket lock 1 [F498]

The actuator for high-voltage charging socket lock 1 - F498- will henceforth be referred to as "actuator".

Removing

DANGER

High voltage can cause fatal injury.

Danger of severe or fatal injuries from electric shock or electric arcs.

• Have a high-voltage technician (HVT) or a high-voltage expert (HVE) de-energise the high-voltage system.

• Remove high-voltage battery charging socket 1 - UX4- ⇒ Rep. gr. 93 ; Removing and installing high-voltage battery charging socket 1 [UX4] .
• Release locking device -2-.
• Remove actuator -1-.

Installing

Install in reverse order of removal, observing the following:

WARNING

High voltage can cause fatal injury.

Danger of severe or fatal injuries from electric shock or electric arcs.

• Have a high-voltage technician (HVT) or a high-voltage expert (HVE) re-energise the high-voltage system.

• ⇒ Rep. gr. 93 ; Re-energise high-voltage system .
