Volkswagen ID.4: Rear window washer system

• Assembly overview - rear window washer system
• Removing and installing spray jet

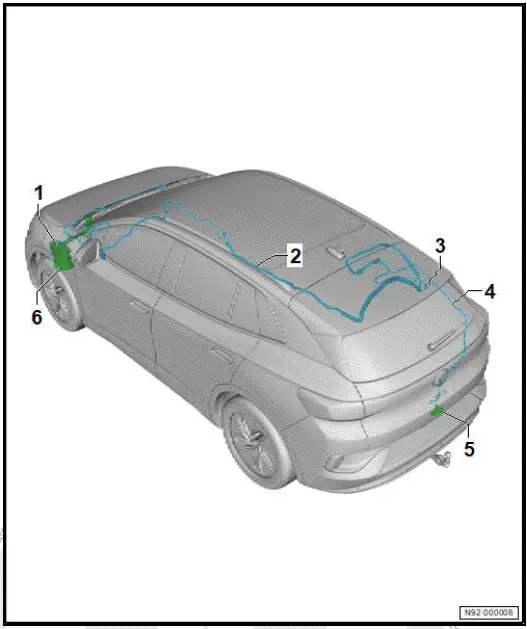

Assembly overview - rear window washer system

1. Washer fluid reservoir

• ⇒ Rep. gr. 92 ; Removing and installing washer fluid reservoir

2. Washer fluid hose

• In side member to spray jet of rear window washer system

3. Rear window washer system spray jet

• Depends on equipment/ version
• ⇒ Rep. gr. 92 ; Removing and installing spray jet, rear window washer system

4. Washer fluid hose

• In rear lid to spray jet for reversing camera

5. Spray jet for reversing camera

• ⇒ Rep. gr. 92 ; Removing and installing spray jet, reversing camera

6. Windscreen and rear window washer pump - V59-

• ⇒ Rep. gr. 92 ; Removing and installing washer pump

Removing and installing spray jet

Removing and installing spray jet, rear window washer system

Removing

• Remove carrier for spoiler trim ⇒ General body repairs, exterior; Rep. gr. 66 ; Spoiler; Removing and installing spoiler trim carrier .
•  Remove upper rear lid trim ⇒ General body repairs, interior; Rep. gr. 70 ; Luggage compartment trims; Removing and installing upper rear lid trim
• Release and pull off washer fluid hose -2-.
• Disconnect electrical connector -3-.
• Remove wiring harness -1- with sealing grommet -4- towards rear.

• Pull spray jet with washer fluid hose -1- and electrical wire -3- through sealing grommet -2-.
• Disconnect spray jet with washer fluid hose -1- for electrical wire -3-.
• Remove spray jet with washer fluid hose -1-.

Installing

Install in reverse order of removal, observing the following:

NOTICE

Leaks from connection for washer fluid hose.

• When connecting washer fluid hose, securing clip must engage audibly in connection for washer fluid hose.

• Connect washer fluid hose.
• Use adhesive tape to attach electrical wire to spray jet with washer fluid hose ⇒ Electronic parts catalogue (ETKA) .

Removing and installing spray jet, reversing camera

Removing

•  Remove rear lid handle - EX37- ⇒ General body repairs, exterior; Rep. gr. 55 ; Rear lid; Assembly overview - electrically operated rear lid .
• Release locking devices -1-.
• Pull out spray jet -2-.

Installing

Install in reverse order of removal.
