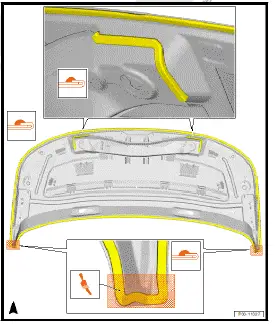

Volkswagen ID.4: Seam seals, bonnet, inner side

Fine seam seals:

Fine seam seals require that the sealant extend at least 3 mm from the seam in each direction and must have a height of 0.5 mm.

Brushing seals:

Following application, brush sealant in the marked areas to uniformly cover surface.

When brushing the sealing seam, ensure that the sheet metal edges which are to be protected are not exposed. The metal must be covered with a sufficiently thick layer of PVC.

Seam seals, roof

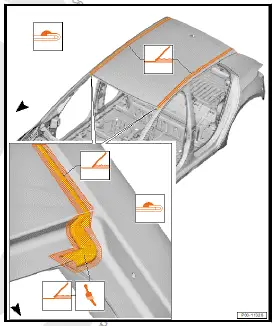

Seam seals, without glass panel

Fine seam seals: Fine seam seals require that the sealant extend at least 3 mm from the seam in each direction and must have a height of 2 mm.

Brushing and smoothing seals: Sealant in the marked areas must first be brushed and then smoothed following application.

When smoothing and brushing the sealing seam, ensure that the sheet metal edges which are to be protected are not exposed.

The metal must be covered with a sufficiently thick layer of PVC.

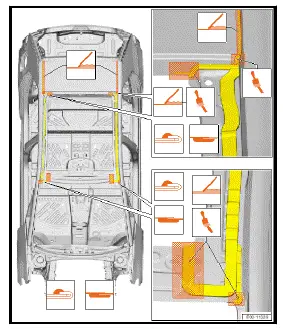

Seam seals, with glass panel

Fine seam seals: Fine seam seals require that the sealant extend at least 3 mm from the seam in each direction and must have a height of 2 mm.

Brushing and smoothing seals: Sealant in the marked areas must first be brushed and then smoothed following application.

When smoothing and brushing the sealing seam, ensure that the sheet metal edges which are to be protected are not exposed.

The metal must be covered with a sufficiently thick layer of PVC.
