Volkswagen ID.4: Steering column switch module

• Assembly overview - steering column switch module
• Removing and installing steering column electronics control unit [J527]

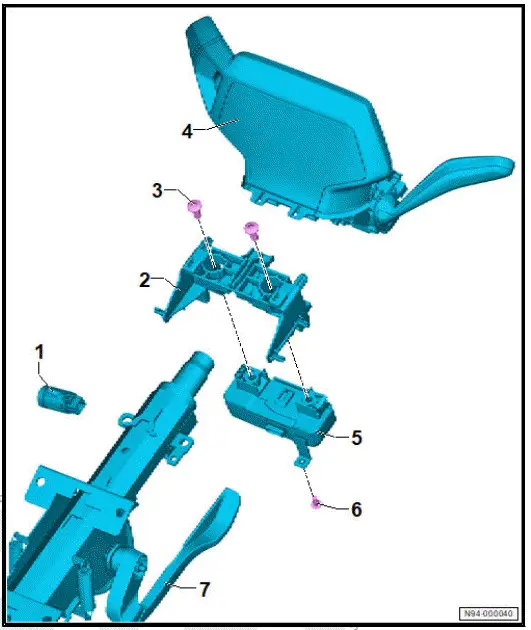

Assembly overview - steering column switch module

1. Starter button - E378-

• ⇒ "3.11 Removing and installing starter button [E378]"

2. Bracket for dash panel insert
3. Shear bolt

• Qty. 2

4. Steering column electronics control unit - J527-

• With driving mode selector, depending on equipment/version
• With wiper switch - EWith intermittent wiper switch - E22- With turn signal switch - E2- With headlight dipper and flasher switch - E4- With electromechanical parking brake button - E538-
• With airbag coil connector and return ring with slip ring - F138- With selector lever locked in position P switch - F319-
• With selector lever position display - Y6-
• Depending on equipment/ version, with cruise control system (CCS) switch - E45- With cruise control system (CCS) SET button - E227- With multifunction display call-up button - E86- Wit heated steering wheel - Z36-
• ⇒ Rep. gr. 94 ; Removing and installing steering column electronics control unit [J527]

5. Control unit for electronic steering column lock - J764-

• ⇒ Running gear, axles, steering; Rep. gr. 48 ; Steering column; Removing and installing control unit for electronic steering column lock [J764]

6. Bolt

• 2.5 Nm

7. Steering column

• ⇒ Running gear, axles, steering; Rep. gr. 48 ; Steering column; Removing and installing steering column

Removing and installing steering column electronics control unit [J527]

Steering column electronics control unit - J527- is referred to hereafter as control unit.

Removing

• Move steering wheel to rearmost and lowest position. Use full range of steering column adjustment for this purpose.
• Remove lower steering column trim ⇒ General body repairs, interior; Rep. gr. 68 ; Compartments/covers; Removing and installing lower steering column trim .
• Remove control unit with display unit for driver information system - J1254- ⇒ Rep. gr. 90 ; Removing and installing control unit with display unit for driver information system [J1254] .

NOTICE

Risk of damage to the electronic components due to electrostatic discharge.

• Discharge any static charge by briefly touching the door striker plate.

• Disconnect electrical connector -2-.
•  Unscrew bolts -3-.

NOTICE

Risk of damage to the return ring.

• When removed, the return ring with slip ring must not be turned.
• Pull off control unit -1-.

Installing

Install in the reverse order of removal, observing the following:

Before pushing on control unit -3-, ensure the following:

• "Arrows" -4- must align.
• Coil connector -2- must be visible in window -1-.
