Body dimensions

Preliminary work for determining body dimensions

Important

• Remove any bolts, screws, plugs, trims and attachments before starting the measuring process.
• The telescopic measuring rod of the respective measuring system must be used to determine the body dimensions.
• Make sure that the measuring probes are always of the same length to avoid inaccuracies during measurement.

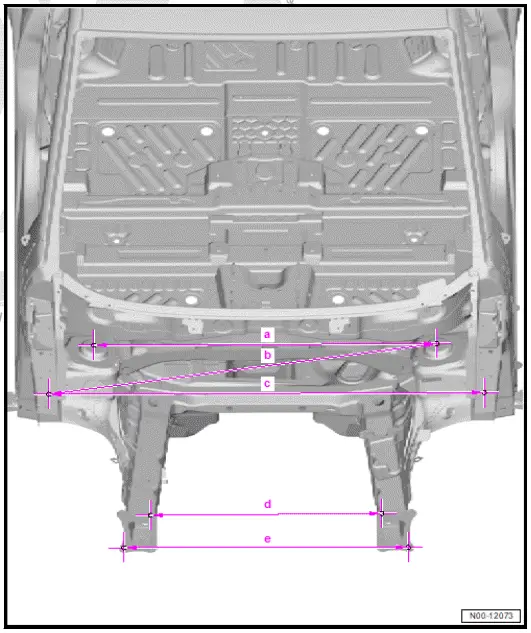

Front body

1. 1155 mm +-2.0 mm
2. 1155 mm +-2.0 mm
3. 1467 mm +-2.0 mm
4. 782 mm +-2.0 mm
5.  959 mm +-2.0 mm

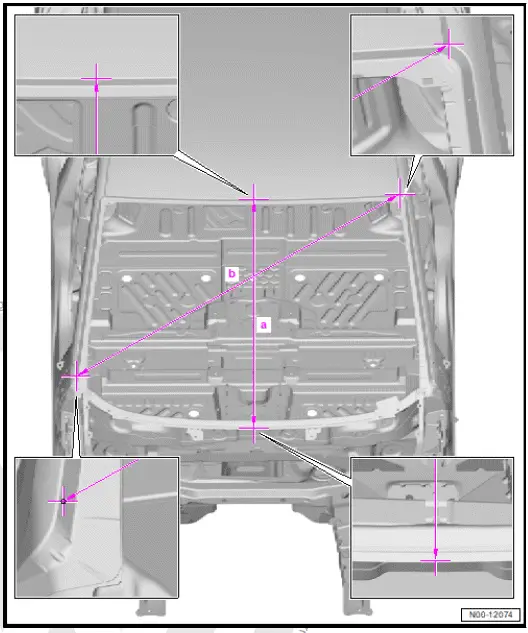

Body - centre

Windscreen aperture

1. 1021 mm +-2.0 mm
2. 1582 mm +-2.0 mm

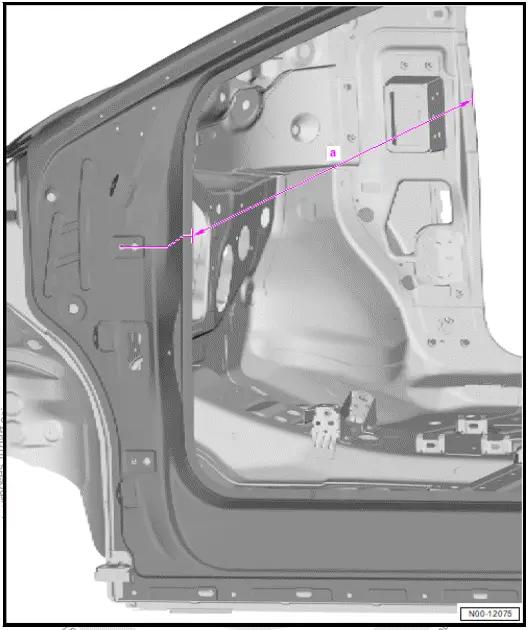

Distance between A-pillars

1. 1513 mm +-2.0 mm

• Measurement made on inner side of body flange.

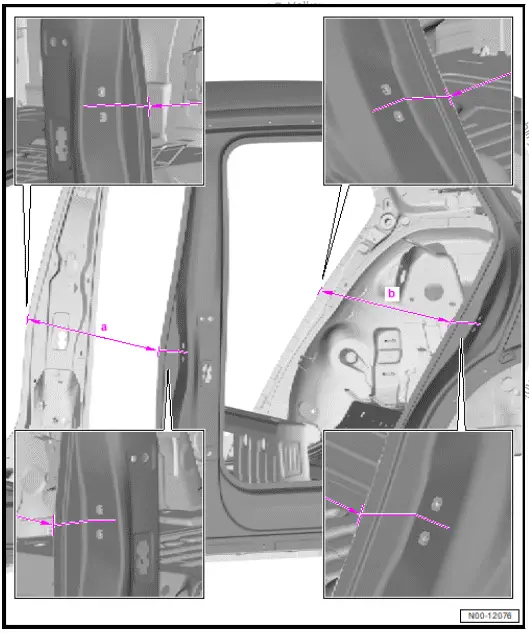

Distance between B- and C-pillars

1. 1479 mm +-2.0 mm

• Measurement made on inner side of body flange.

2. 1473 mm +-2.0 mm

• Measurement made on inner side of body flange.

Front door aperture

1. 910 mm +-2.0 mm
2. 961 mm +-2.0mm

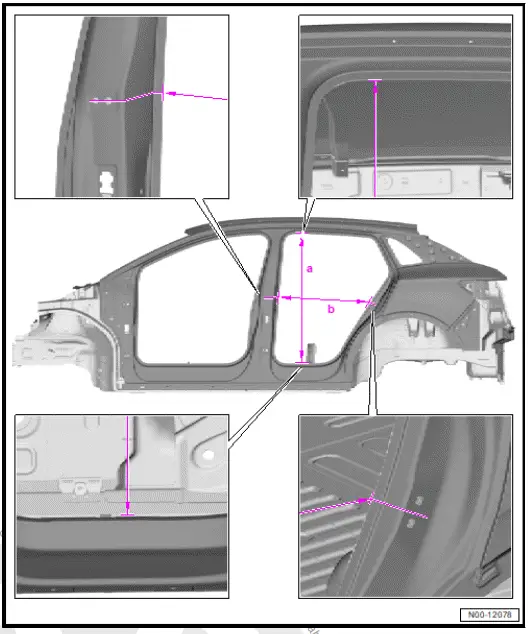

Rear door aperture

1. 1044 mm +-2.0 mm
2. 757 mm +-2.0 mm

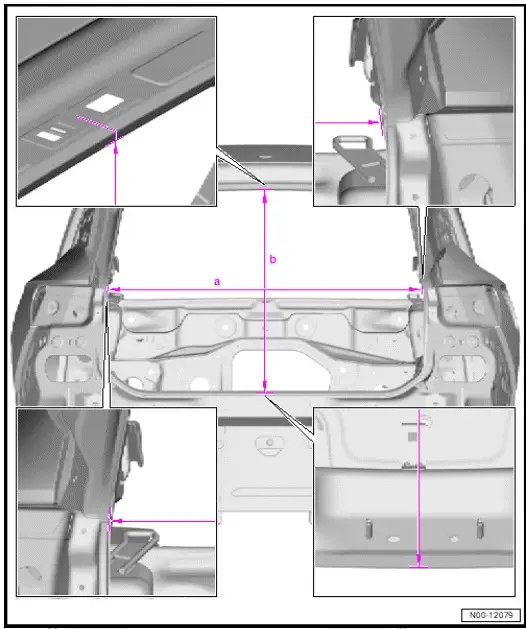

Body - rear

Rear lid aperture

1. 1127 mm +-2.0 mm
2. 1004 mm +-2.0 mm

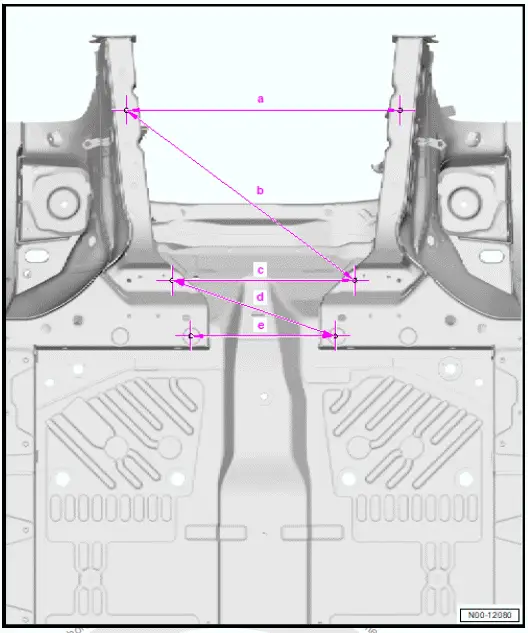

Floor panel, front

1. 791 mm +-2.0 mm
2. 854 mm +-2.0 mm
3. 530 mm +-2.0 mm
4. 505 mm +-2.0 mm
5. 419 mm +-2.0 mm

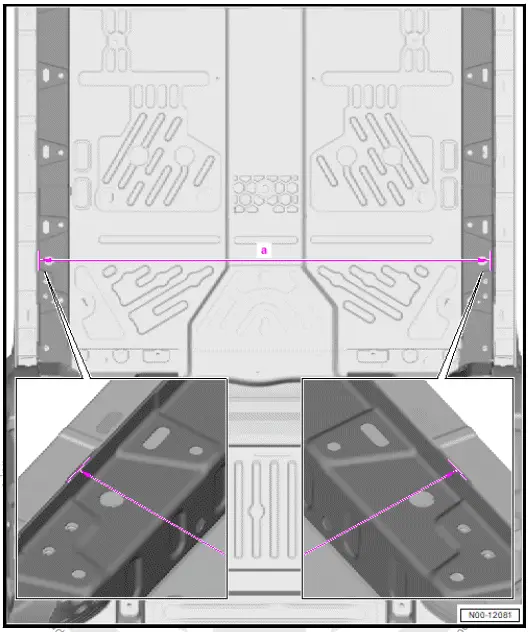

Floor panel, centre

1. 1533 mm +-2.0 mm

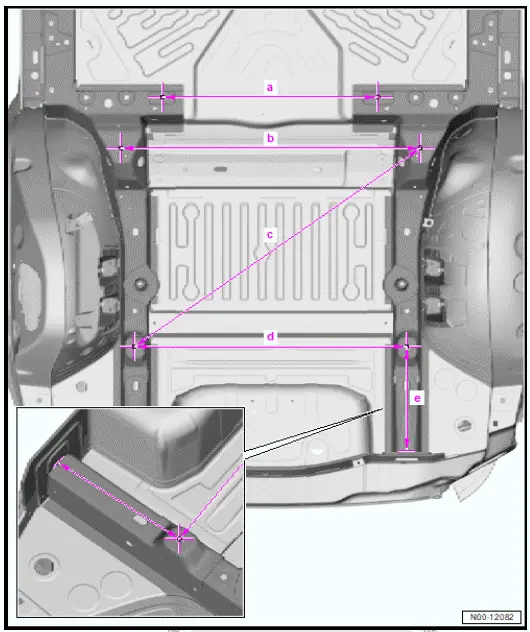

Floor panel, rear

1. 1533 mm +-2.0 mm
2. 1008 mm +-2.0 mm
3. 1174 mm +-2.0 mm
4. 918 mm +-2.0 mm
5. 366 mm +-2.0 mm
