Volkswagen ID.4: Warning stickers

• Checking warning stickers
• Checking warning stickers

Checking warning stickers

All high-voltage components are equipped with warning stickers.

• Renew any illegible or damaged identification labels and information or warning signs found on components of this vehicle, and affix the new ones in the same location.
• They must be fitted on all high-voltage components.

Warning stickers in visible areas

Emergency label must be checked on the following components:

• Emergency label in the interior, on fuse carrier behind fuse box cover.

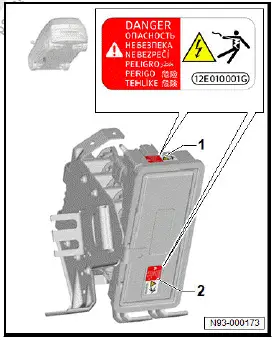

• Emergency label, maintenance connector for high-voltage system - TW- .

Continued

Warning stickers must be checked on the following components:

• Warning sticker on front left lock carrier.

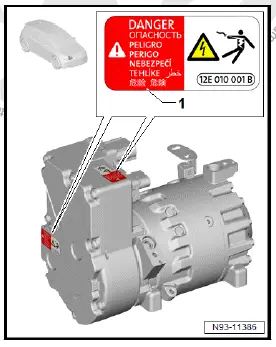

• Warning sticker on air conditioner compressor - VX81-

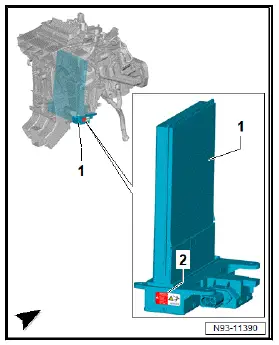

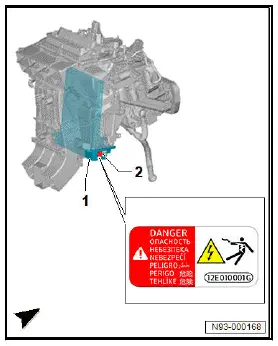

• Warning sticker on high-voltage heater (PTC) - ZX17- .

Rear-wheel drive

• Warning sticker on voltage converter - A19- .

All vehicles (continued)

Warning stickers in non-visible areas

Emergency label must be checked on the following components:

• Emergency label behind right luggage compartment side trim.

Continued

Emergency label must be checked on the following components:

•  Emergency label behind right tail light cluster.

Continued

Warning stickers must be checked on the following components:

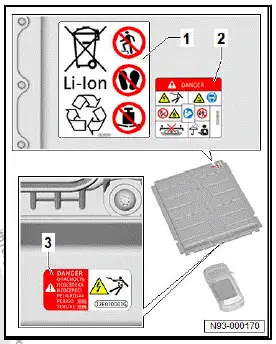

• Warning sticker on high-voltage battery 1 - AX2- .

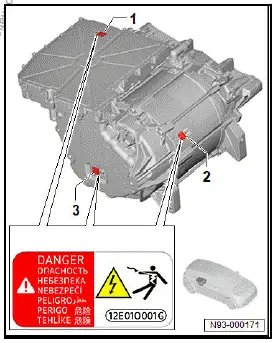

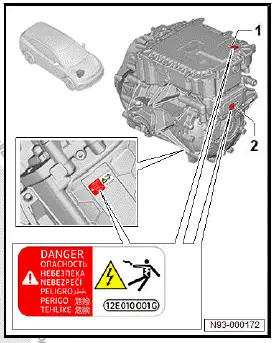

• Warning sticker on three-phase current drive - VX54- .

• With power and control electronics for electric drive - JX1- .

Checking warning stickers

All high-voltage components are equipped with warning stickers.

• Renew any illegible or damaged identification labels and information or warning signs found on components of this vehicle, and affix the new ones in the same location.

  They must be fitted on all high-voltage components.

Warning stickers in visible areas

Emergency label must be checked on the following components:

• Emergency label in the interior, on fuse carrier behind fuse box cover.

• Emergency label, maintenance connector for high-voltage system - TW- .

Continued

Warning stickers must be checked on the following components:

• Warning sticker on front left lock carrier.

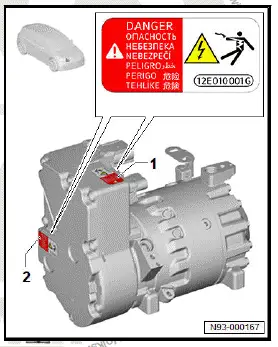

• Warning sticker on air conditioner compressor - VX81- .

• Warning sticker on high-voltage heater (PTC) - ZX17- .

Rear-wheel drive

• Warning sticker on voltage converter - A19

All vehicles (continued)

Warning stickers in non-visible areas

Emergency label must be checked on the following components:

• Emergency label behind right luggage compartment side trim.

Continued

Emergency label must be checked on the following components:

• Emergency label behind right tail light cluster.

Continued

Warning stickers must be checked on the following components:

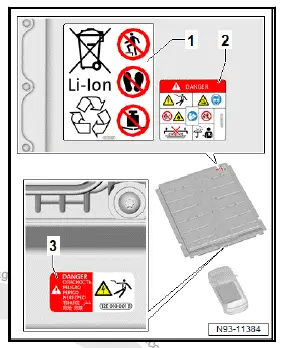

• Warning sticker on high-voltage battery 1 - AX2- .

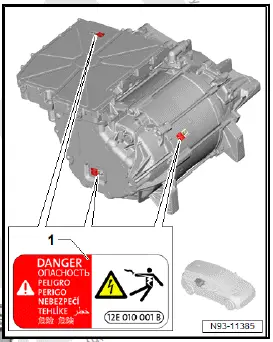

• Warning sticker on three-phase current drive - VX54- .

• With power and control electronics for electric drive - JX1- .

• Warning sticker on three-phase current drive 2 - VX97- .

• With power and control electronics 2 for electric drive - JX4- .

• Warning sticker on heater element (PTC) 3 - Z132- .

• Warning sticker on charging unit 1 for high-voltage battery - AX4- .
