Volkswagen ID.4: Adjusting power front seats

The electric seat controls in the Volkswagen ID.4 may differ depending on equipment level and market-specific configurations.

The front passenger seat controls are designed as a mirror image of the driver’s seat for intuitive operation.

In some Volkswagen ID.4 versions, both manual and electric seat adjustments are available simultaneously.

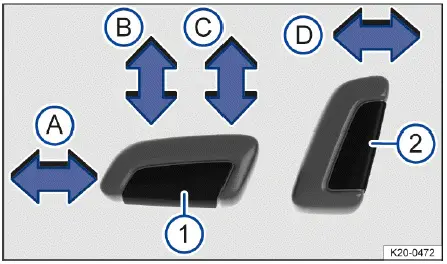

Fig. 1 Switch on the driver seat: Adjusting the front seat forward/back, the height and angle of the seat surface, and the front seat backrest.

Press the switch in the indicated direction:

1.

1. Move the seat forward or backward to achieve the correct driving position.
2. Adjust the angle of the seat cushion for better leg support in the Volkswagen ID.4.
3. Modify the seat height for improved visibility and ergonomics.

2.

4. Adjust the backrest angle to ensure a comfortable and safe posture.

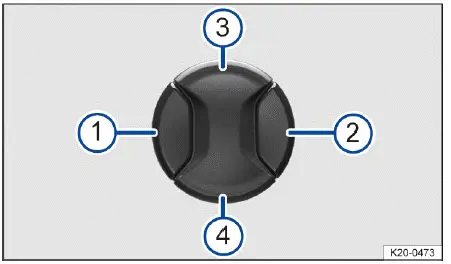

Fig. 2 Switch on the driver seat: Adjusting the lumbar support.

Use the switch to adjust lumbar support in the Volkswagen ID.4 according to your preference:

1. Move the lumbar support forward to increase back support.
2. Move it backward to reduce pressure.
3. Raise the support to align with your lower back.
4. Lower the support for optimal comfort.

WARNING

Improper use of power front seats in the Volkswagen ID.4 can result in serious injuries.

• Seats can be adjusted even when the ignition is off. Never leave children or vulnerable individuals unattended in the Volkswagen ID.4.
• In an emergency, stop seat movement immediately by pressing another control switch.

NOTICE

Incorrect use may damage electrical seat components in the Volkswagen ID.4.

• Avoid applying excessive pressure on specific areas of the seat cushion or backrest.

If the 12 V battery level is low, electric seat adjustment in the Volkswagen ID.4 may not function.

Seat adjustments may be temporarily interrupted while the Volkswagen ID.4 drive system is being activated.

Introduction

The following section outlines the available rear seat adjustment options in the Volkswagen ID.4, ensuring proper seating position and safety for all passengers.

WARNING

Incorrect positioning of rear seats in the Volkswagen ID.4 increases the risk of injury in the event of an accident.

• Ensure all passengers are seated upright with properly fastened seat belts before driving.
• Adjust rear seats only when no one is within their movement range.

WARNING

Adjusting rear seats while driving the Volkswagen ID.4 may result in loss of proper seating position and increase injury risk.

• Only adjust rear seats when the vehicle is stationary.

WARNING

Improper use of the rear center armrest in the Volkswagen ID.4 can cause serious injuries.

• The center armrest must remain folded up during driving.
• Never allow passengers to sit on or use the armrest as a seat.
• The center seat position must not be used when the armrest is folded down.

NOTICE

Objects in the luggage compartment may interfere with seat movement and cause damage in the Volkswagen ID.4.

• Remove any objects between the seat and the luggage compartment floor before adjusting the rear seats.

NOTICE

Sharp objects may damage seat surfaces in the Volkswagen ID.4.

• Avoid contact with sharp items such as zippers, rivets, or belts that could damage upholstery.

For maximum comfort and safety, regularly check seat adjustments and ensure all seating positions in your Volkswagen ID.4 are correctly configured before driving.
