Volkswagen ID.4: Airbag system

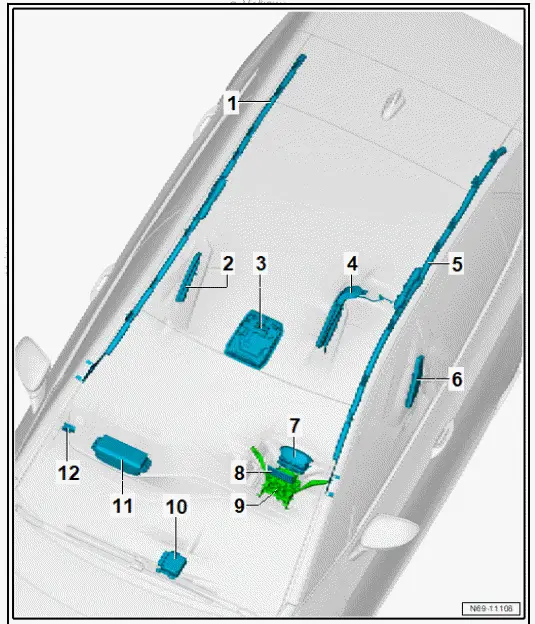

Overview of fitting locations - airbag system

The overview shows a left-hand drive vehicle as an example.

1. Head airbag, front passenger side

• Left-hand drive vehicles: with front passenger side curtain airbag igniter - N252-
• Right-hand drive vehicles: with driver side curtain airbag igniter - N251-
• ⇒ Rep. gr. 69 ; Assembly overview - curtain airbag
• ⇒ Rep. gr. 69 ; Removing and installing curtain airbag with igniter

2. Front side airbag, front passenger side

• Left-hand drive vehicles: with side airbag igniter on front passenger side - N200-
• Right-hand drive vehicles: with side airbag igniter on driver side - N199-
• ⇒ "8.1 Assembly overview  front side airbag, outer side"
• ⇒ "8.3 Removing and installing front outer side airbag"

3. Warning lamp for airbag deactivated on front passenger side - K145-

• Can be renewed only together with front interior light - WX1-
• ⇒ Electrical system; Rep. gr. 96 ; Controls; Removing and installing front interior light/reading light

4. Front side airbag on driver side with igniter for central airbag for occupant collision protection, driver side - N737-

• ⇒ "8.2 Assembly overview - front side airbag, inner side"
• ⇒ "8.4 Removing and installing front inner side airbag"

5. Head airbag, driver side

• Left-hand drive vehicles: with driver side curtain airbag igniter - N251-
• Right-hand drive vehicles: with front passenger side curtain airbag igniter - N252-
• ⇒ Rep. gr. 69 ; Assembly overview - curtain airbag
• ⇒ Rep. gr. 69 ; Removing and installing curtain airbag with igniter

6. Front side airbag, driver side

• Left-hand drive vehicles: with side airbag igniter on driver side - N199-
• Right-hand drive vehicles: with side airbag igniter on front passenger side - N200-
• ⇒ "8.1 Assembly overview   front side airbag, outer side"
• ⇒ "8.3 Removing and installing front outer side airbag"

7. Airbag unit on driver side with airbag igniter on driver side - N95-

• ⇒ Rep. gr. 69 ; Assembly overview - front airbag, driver side
• ⇒ Rep. gr. 69 ; Removing and installing airbag unit with airbag igniter on driver side [N95]

8. Control unit with display unit for driver information system - J1254-

• ⇒ Electrical system; Rep. gr. 90 ; Dash panel insert; Removing and installing control unit with display unit for driver information system [J1254]

9. Steering column electronics control unit - J527-

• ⇒ Electrical system; Rep. gr. 94 ; Steering column switch module; Removing and installing steering column electronics control unit [J527]

10. Airbag control unit - J234-

• ⇒ Rep. gr. 69 ; Assembly overview - airbag control unit
• ⇒ Rep. gr. 69 ; Removing and installing airbag control unit [J234]

11. Airbag unit on front passenger side

• With front passenger side airbag igniter 1 - N131- .
• With front passenger airbag unit - NX3- incl. airbag igniter 1 on front passenger side - N131- and airbag igniter 2 on front passenger side - N132-
• ⇒ Rep. gr. 69 ; Assembly overview - front passenger airbag
• ⇒ Rep. gr. 69 ; Removing and installing front passenger airbag unit with igniter

12. Key-operated switch to deactivate airbag on front passenger side - E224-

• Depending on equipment/version
• ⇒ Rep. gr. 69 ; Removing and installing key-operated switch to deactivate airbag on front passenger side [E224]

Child seat anchorsAirbag control unit
