Volkswagen ID.4: Areas exposed to stone chipping
Volkswagen ID.4 (E21) 2021-2026 Service Manual / Vehicle-specific paint information / Areas exposed to stone chipping
Areas exposed to stone chipping - overview
General overview without glass panel

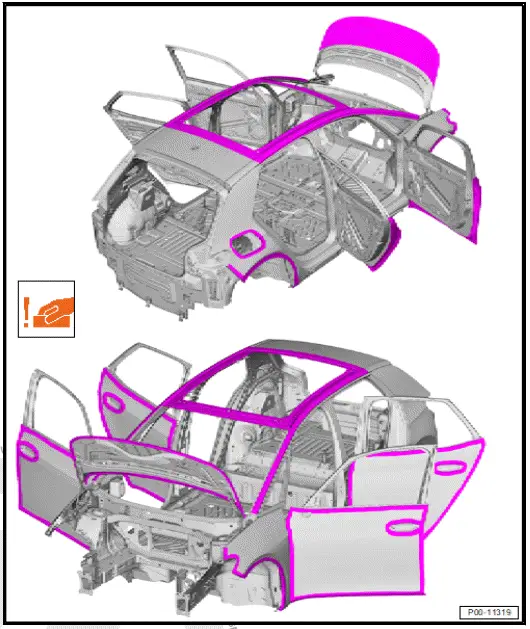

General overview with glass panel
Masked sectors

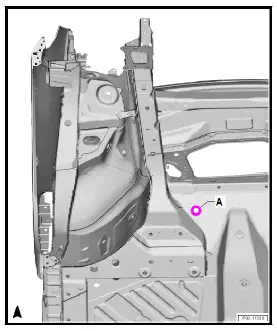

Masking areas, front body
Vehicle front end, centre
Important
- Keep marked areas for threads and contact surfaces -A- free of sealant and wax.

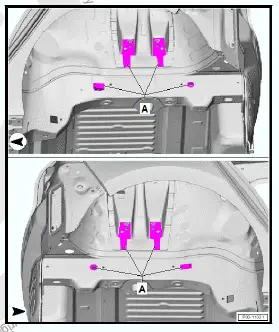

Masking areas, rear body
Rear left and right wheel housing
Important
- Keep marked areas for threads and contact surfaces -A- free of sealant and wax.

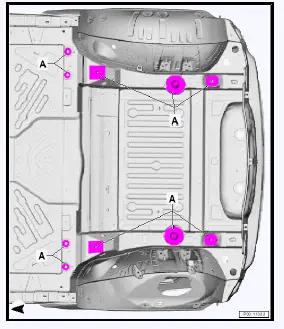

Underbody
Important
- Keep marked areas for threads and contact surfaces -A- free of sealant and wax.
Volkswagen ID.4 (E21) 2021-2026 Service Manual
