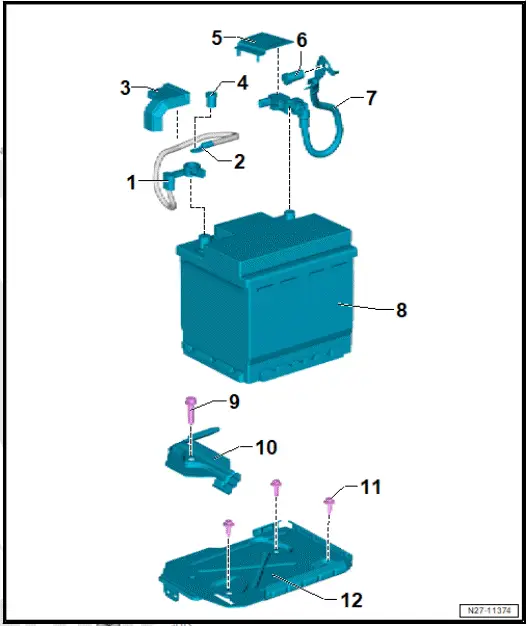

Volkswagen ID.4: Assembly overview - battery

1. Battery clamp for battery positive terminal

• 5 Nm

2. Positive cable
3. Cover for positive battery terminal
4. Nut for positive jump start terminal

• 20 Nm

5. Cover for negative battery terminal
6. Nut for negative jump start terminal

• 20 Nm

7. Earth cable

• With battery clamp for negative battery terminal
• With battery monitoring control unit - J367-
• ⇒ Rep. gr. 27 ; Removing and installing earth wire with battery monitor control unit [J367]
• ⇒ Rep. gr. 27 ; Adapting battery monitor control unit [J367]
• 5 Nm

8. Battery - A-

• ⇒ Rep. gr. 27 ; Removing and installing battery [A]
• ⇒ Rep. gr. 27 ; Disconnecting and connecting battery

9. Bolt

• 20 Nm

10. Retaining clip
11. Bolt

• Qty. 3
• 9 Nm

12. Battery tray

• ⇒ Rep. gr. 27 ; Removing and installing battery tray
