Volkswagen ID.4: Dimensions

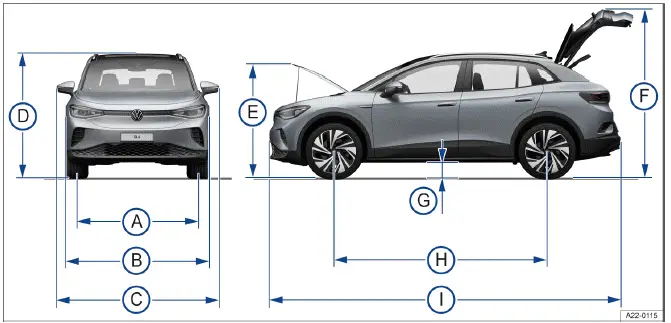

Fig. 1 Vehicle dimensions.

The dimensional data shown for the Volkswagen ID.4 refers to the standard production model equipped with factory-standard components. These measurements provide a reliable reference for understanding the size, proportions, and spatial characteristics of the Volkswagen ID.4.

Depending on optional equipment, wheel and rim configurations, trim levels, or retrofitted accessories, the actual dimensions of the Volkswagen ID.4 may vary slightly. Special-purpose versions or market-specific variants may also differ from the standard specifications.

Further details on how weight-related values are calculated and standardized for the Volkswagen ID.4 can be found in the section (→ Technical data). This ensures clarity regarding measurement conditions and regulatory compliance.

109 kW, 52 (55) kWh, rear-wheel drive, electric motor

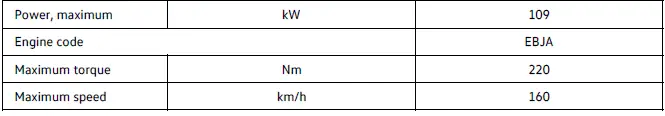

Engine overview

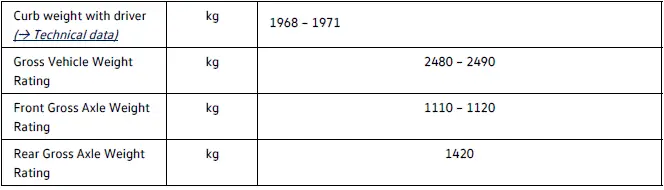

Weight specifications and axle loads

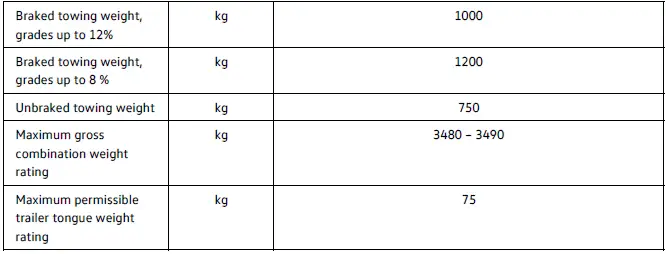

Towing weights

125 kW, 52 (55) kWh, rear-wheel drive, electric motor

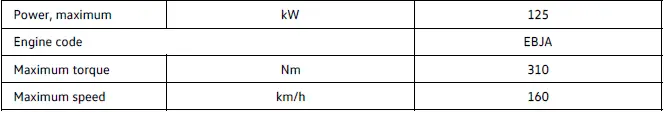

Engine overview

Weight specifications and axle loads

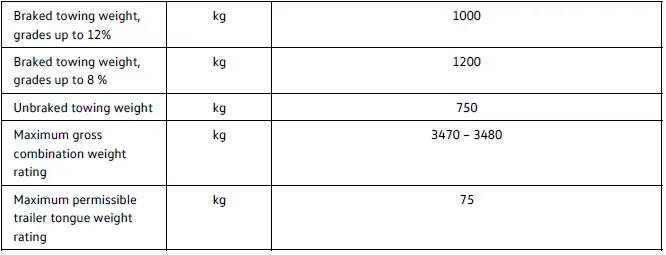

Towing weights

128 kW, 77 (82) kWh, rear-wheel drive, electric motor

Engine overview

Weight specifications and axle loads

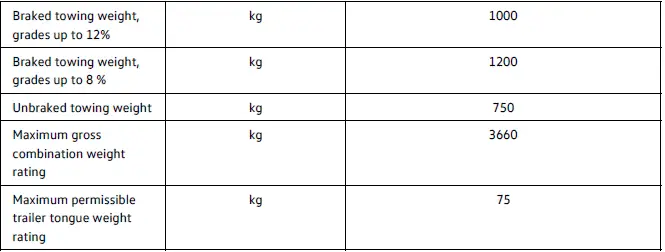

Towing weights

150 kW, 77 (82) kWh, rear-wheel drive, electric motor

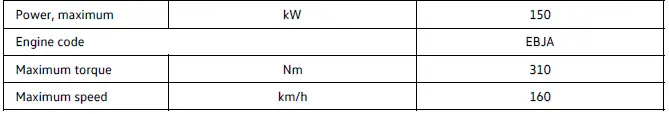

Engine overview

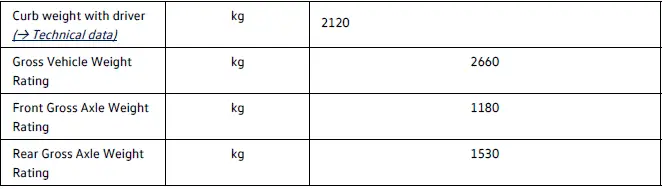

Weight specifications and axle loads

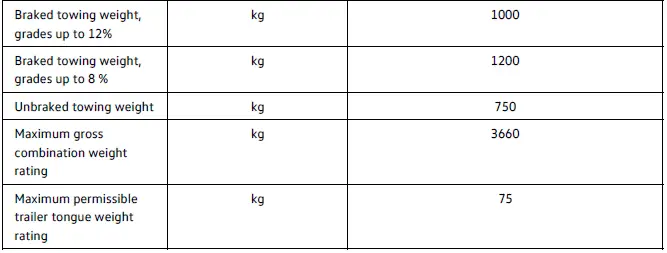

Towing weights

195 kW, 77 (82) kWh, all-wheel drive, electric motor

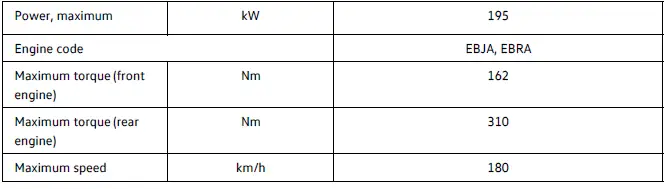

Engine overview

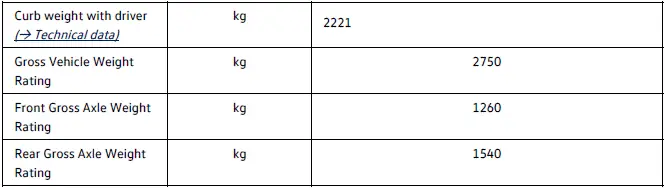

Weight specifications and axle loads

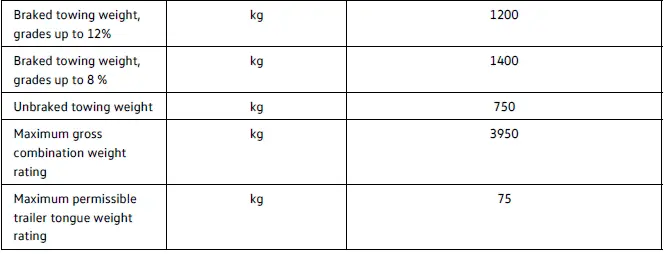

Towing weights

220 kW, 77 (82) kWh, all-wheel drive, electric motor

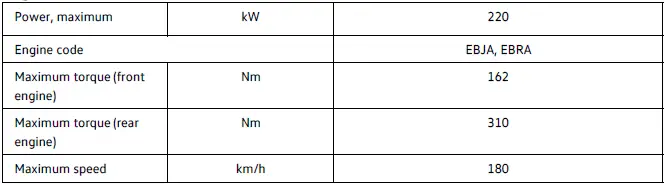

Engine overview

Weight specifications and axle loads

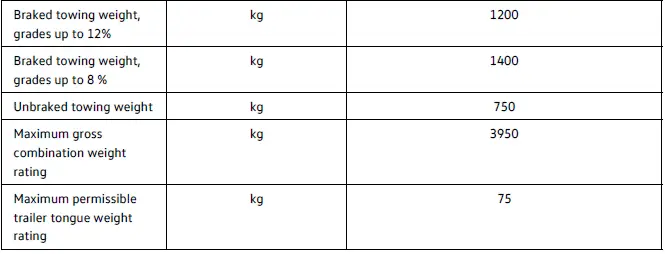

Towing weights

The Volkswagen ID.4 combines optimized dimensions with electric platform efficiency, providing a balance between interior space, aerodynamics, and driving comfort. Understanding these specifications helps ensure correct vehicle usage, especially when loading cargo, selecting accessories, or towing.
