Volkswagen ID.4: Explanation of symbols

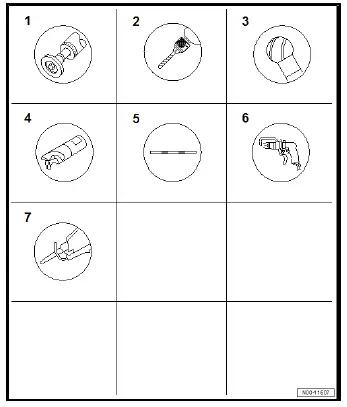

Symbols relating to procedures for separating components

1. Grinding / sanding (down to bare metal)
2. Drilling
3. Ball-nose cutter
4. BTR cutter
5. Separating cut
6. Detaching spot weld
7. Saw-cutting

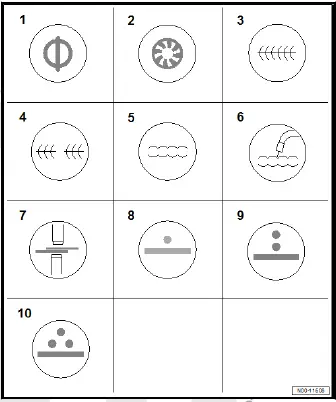

Symbols relating to welding, brazing and soldering

1. Stepped weld seam
2. SG plug weld seam
3.  SG continuous weld seam
4. Staggered SG continuous weld seam
5. Brazing
6. MIG brazing
7. Spot welding (RP spot), general
8. RP spot, single-row
9. RP spot, double-row
10. RP spot, double-row, offset

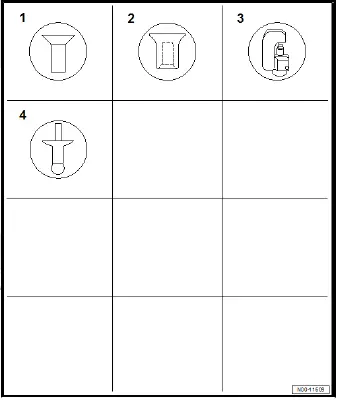

Symbols for rivets

1. Solid rivet
2. Hollow punch rivet
3. Use rivet tool
4. Pop rivet

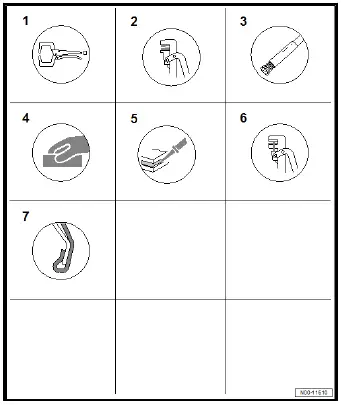

Symbols relating to preparations

1. Clamping
2. Joggling
3. Paint removal on surfaces difficult to access
4. Grinding by hand
5. Applying adhesive
6. Piercing
7. Flanging

Symbols for corrosion protection

1. Cavity sealing
2. Sealing
