Volkswagen ID.4: High-voltage battery components, edge of upper part of battery housing without wax

Volkswagen ID.4 (E21) 2021-2026 Service Manual / Electric drive EIP220, EIA200, EIA210 / Electric drive systems / High-voltage battery components, edge of upper part of battery housing without wax

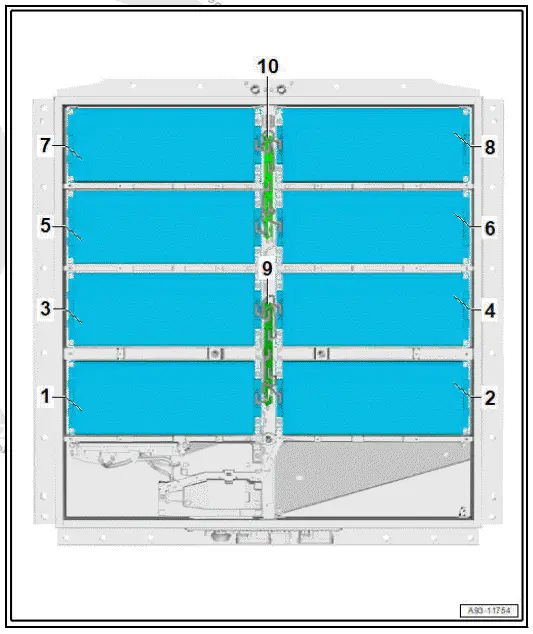

Overview of fitting locations - battery modules, 48, 55 kWh

Overview of fitting locations - battery modules

Volkswagen ID.4. Overview of fitting locations - battery modules

  1. Battery module 1 - J991-
  • ⇒ Rep. gr. 93 ; Removing battery module
  • ⇒ Rep. gr. 93 ; Installing battery module
  1. Battery module 2 - J992-
  • ⇒ Rep. gr. 93 ; Removing battery module
  • ⇒ Rep. gr. 93 ; Installing battery module
  1. Battery module 3 - J993-
  • ⇒ Rep. gr. 93 ; Removing battery module
  • ⇒ Rep. gr. 93 ; Installing battery module
  1. Battery module 4 - J994-
  • ⇒ Rep. gr. 93 ; Removing battery module
  • ⇒ Rep. gr. 93 ; Installing battery module
  1. Battery module 5 - J995-
  • ⇒ Rep. gr. 93 ; Removing battery module
  • ⇒ Rep. gr. 93 ; Installing battery module
  1. Battery module 6 - J996-
  • ⇒ Rep. gr. 93 ; Removing battery module
  • ⇒ Rep. gr. 93 ; Installing battery module
  1. Battery module 7 - J997-
  • ⇒ Rep. gr. 93 ; Removing battery module
  • ⇒ Rep. gr. 93 ; Installing battery module
  1. Battery module 8 - J998-
  • ⇒ Rep. gr. 93 ; Removing battery module
  •  ⇒ Rep. gr. 93 ; Installing battery module
  1. Battery modules control unit - J1208-
  • ⇒ Rep. gr. 93 ; Removing and installing battery modules control unit
  1. Battery modules control unit 5 - J1212-
  • ⇒ Rep. gr. 93 ; Removing and installing battery modules control unit

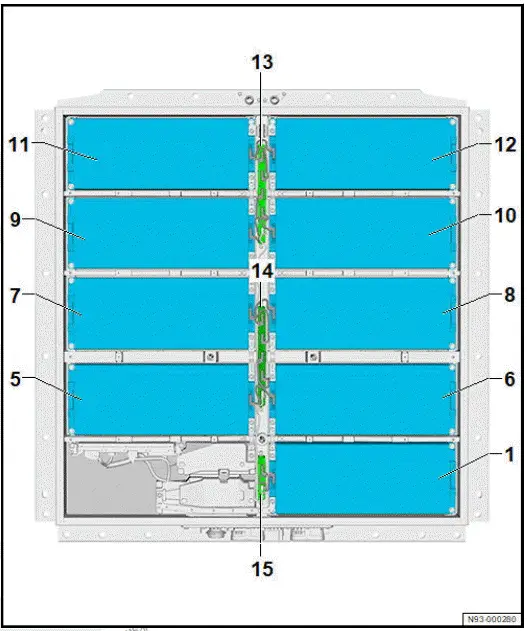

Overview of fitting locations - battery modules, 62 kWh

Overview of fitting locations - battery modules

  1. Battery module 1 - J991-
  • ⇒ Rep. gr. 93 ; Removing battery module
  •  ⇒ Rep. gr. 93 ; Installing battery module
  1. Not fitted
  2. Not fitted
  3. Not fitted
  4. Battery module 5 - J995-
  • ⇒ Rep. gr. 93 ; Removing battery module
  • ⇒ Rep. gr. 93 ; Installing battery module
  1. Battery module 6 - J996-
  • ⇒ Rep. gr. 93 ; Removing battery module
  • ⇒ Rep. gr. 93 ; Installing battery module
  1. Battery module 7 - J997-
  • ⇒ Rep. gr. 93 ; Removing battery module
  • ⇒ Rep. gr. 93 ; Installing battery module
  1. Battery module 8 - J998-
  • ⇒ Rep. gr. 93 ; Removing battery module
  • ⇒ Rep. gr. 93 ; Installing battery module
  1. Battery module 9 - J999-
  • ⇒ Rep. gr. 93 ; Removing battery module
  • ⇒ Rep. gr. 93 ; Installing battery module
  1. Battery module 10 - J1000-
  • ⇒ Rep. gr. 93 ; Removing battery module
  • ⇒ Rep. gr. 93 ; Installing battery module
  1. Battery module 11 - J1001-
  • ⇒ Rep. gr. 93 ; Removing battery module
  • ⇒ Rep. gr. 93 ; Installing battery module
  1. Battery module 12 - J1002-
  • ⇒ Rep. gr. 93 ; Removing battery module
  • ⇒ Rep. gr. 93 ; Installing battery module
  1. Battery modules control unit 9 - J1216-
  • ⇒ Rep. gr. 93 ; Removing and installing battery modules control unit
  1. Battery modules control unit 5 - J1212-
  • ⇒ Rep. gr. 93 ; Removing and installing battery modules control unit
  1. Battery modules control unit - J1208-
  • ⇒ Rep. gr. 93 ; Removing and installing battery modules control unit

Volkswagen ID.4. Overview of fitting locations - battery modules

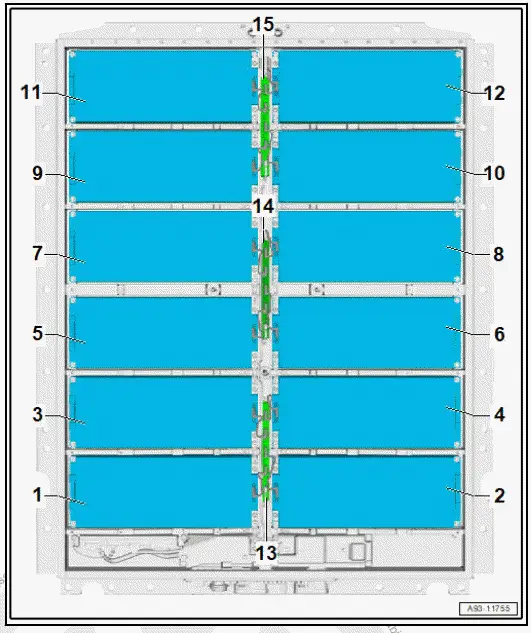

Overview of fitting locations - battery modules, 82 kWh

Overview of fitting locations - battery modules

Volkswagen ID.4. Overview of fitting locations - battery modules

  1. Battery module 1 - J991-
  • ⇒ Rep. gr. 93 ; Removing battery module
  • ⇒ Rep. gr. 93 ; Installing battery module
  1. Battery module 2 - J992-
  • ⇒ Rep. gr. 93 ; Installing battery module
  • ⇒ Rep. gr. 93 ; Removing battery module
  1. Battery module 3 - J993-
  • ⇒ Rep. gr. 93 ; Installing battery module
  • ⇒ Rep. gr. 93 ; Removing battery module
  1. Battery module 4 - J994-
  • ⇒ Rep. gr. 93 ; Installing battery module
  • ⇒ Rep. gr. 93 ; Removing battery module
  1. Battery module 5 - J995-
  • ⇒ Rep. gr. 93 ; Installing battery module
  • ⇒ Rep. gr. 93 ; Removing battery module
  1. Battery module 6 - J996-
  • ⇒ Rep. gr. 93 ; Installing battery module
  • ⇒ Rep. gr. 93 ; Removing battery module
  1. Battery module 7 - J997-
  • ⇒ Rep. gr. 93 ; Installing battery module
  • ⇒ Rep. gr. 93 ; Removing battery module
  1. Battery module 8 - J998-
  • ⇒ Rep. gr. 93 ; Installing battery module
  • ⇒ Rep. gr. 93 ; Removing battery module
  1. Battery module 9 - J999-
  • ⇒ Rep. gr. 93 ; Installing battery module
  • ⇒ Rep. gr. 93 ; Removing battery module
  1. Battery module 10 - J1000-
  • ⇒ Rep. gr. 93 ; Installing battery module
  • ⇒ Rep. gr. 93 ; Removing battery module
  1. Battery module 11 - J1001-
  • ⇒ Rep. gr. 93 ; Installing battery module
  • ⇒ Rep. gr. 93 ; Removing battery module
  1. Battery module 12 - J1002-
  • ⇒ Rep. gr. 93 ; Installing battery module
  • ⇒ Rep. gr. 93 ; Removing battery module
  1. Battery modules control unit - J1208-
  • ⇒ Rep. gr. 93 ; Removing and installing battery modules control unit
  1.  Battery modules control unit 5 - J1212-
  •  ⇒ Rep. gr. 93 ; Removing and installing battery modules control unit
  1. Battery modules control unit 9 - J1216-
  • ⇒ Rep. gr. 93 ; Removing and installing battery modules control unit

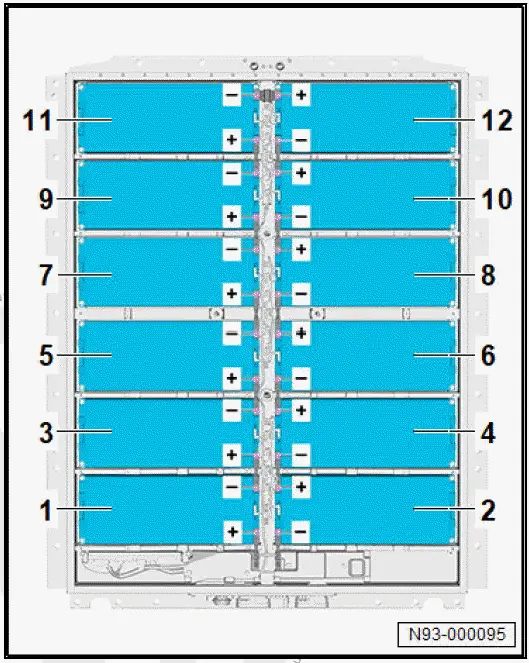

Overview of fitting locations - battery connectors

Overview shows high-voltage battery, 82 kWh as an example

  1. Battery module 1 - J991-
  2. Battery module 2 - J992-
  3. Battery module 3 - J993-
  4. Battery module 4 - J994-
  5. Battery module 5 - J995-
  6. Battery module 6 - J996-
  7. Battery module 7 - J997-
  8. Battery module 8 - J998-
  9. Battery module 9 - J999-
  10. Battery module 10 - J1000-
  11. Battery module 11 - J1001-
  12. Battery module 12 - J1002-

Volkswagen ID.4. Overview of fitting locations - battery connectors

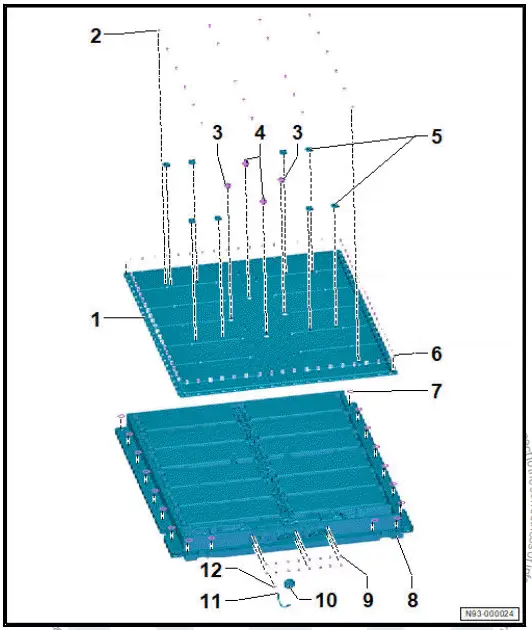

Assembly overview - high-voltage battery, removed, 48, 55, 62 kWh

Assembly overview - high-voltage battery (removed)

  1. Upper part of battery housing
  • ⇒ Rep. gr. 93 ; Opening high-voltage battery 1 AX2
  • ⇒ Rep. gr. 93 ; Checking whether upper part of battery housing can be reused
  • ⇒ Rep. gr. 93 ; Closing high-voltage battery 1 AX2
  1. Bolt
  • Qty. 14
  • Renew after removing
  • M5×18
  1. Small fastener
  • Qty. 2
  • Renew after removing
  1. Large fastener
  • Qty. 2
  • Renew after removing
  1. Spacer
  • Qty. 8
  1. Bolt
  • Qty. 72
  • Renew after removing
  1. Separating film
  • Renew after removal of high-voltage battery 1 - AX2-
  • Qty. 14
  1. Lower part of battery housing
  2. Bolt
  • Qty. 16
  • Renew after removing
  • M5×25
  • 4.5 Nm
  1. Pressure relief valve
  •  Renew after removing
  1. Potential equalisation
  2. Nut
  • M6×10
  • 8 Nm

Volkswagen ID.4. Assembly overview - high-voltage battery, removed, 48, 55, 62 kWh

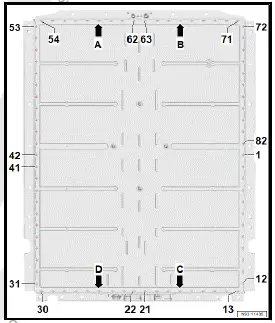

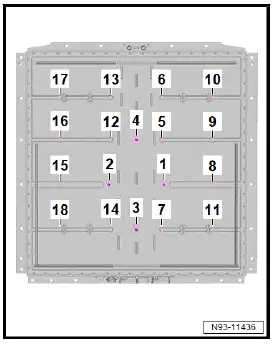

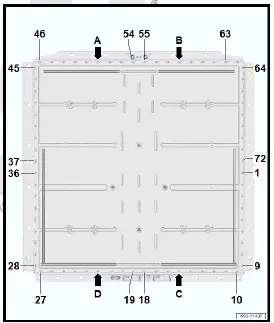

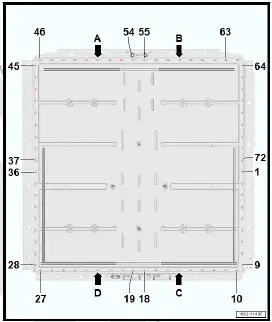

Upper part of battery housing - specified torque and tightening sequence 1

Volkswagen ID.4. Assembly overview - high-voltage battery, removed, 48, 55, 62 kWh

Upper part of battery housing - specified torque and tightening sequence 2 for production condition and repair bolt stage 2

Volkswagen ID.4. Assembly overview - high-voltage battery, removed, 48, 55, 62 kWh

Upper part of battery housing - specified torque and tightening sequence 2 for repair bolt stage 1

Volkswagen ID.4. Assembly overview - high-voltage battery, removed, 48, 55, 62 kWh

Assembly overview - high-voltage battery, removed, 82 kWh

Assembly overview - high-voltage battery (removed)

Volkswagen ID.4. Assembly overview - high-voltage battery (removed)

  1. Upper part of battery housing
  • ⇒ Rep. gr. 93 ; Opening high-voltage battery 1 AX2
  • ⇒ Rep. gr. 93 ; Checking whether upper part of battery housing can be reused
  • ⇒ Rep. gr. 93 ; Closing high-voltage battery 1 AX2 2 - Bolt
  • Qty. 22
  • Renew after removing
  • M5×18
  1. Small fastener
  • Qty. 2
  • Renew after removing
  1. Large fastener
  • Qty. 2
  • Renew after removing
  1. Spacer
  • Qty. 8
  1. Bolt
  • Qty. 82
  • Renew after removing
  1. Separating film
  • Renew after removal of high-voltage battery 1 - AX2-
  • Qty. 22
  1. Lower part of battery housing
  2. Bolt
  • Qty. 16
  • Renew after removing
  • M5×25
  • 4.5 Nm
  1. Pressure relief valve
  • Renew after removing
  1. Potential equalisation line
  2. Nut
  • M6×10
  • 8 Nm

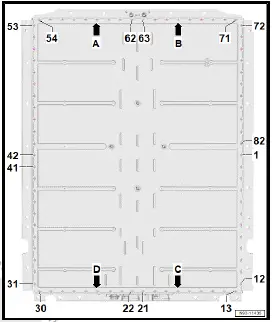

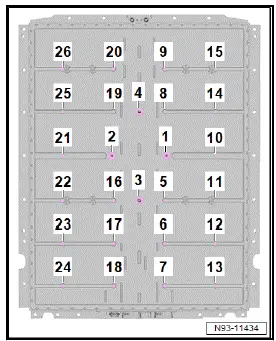

Upper part of battery housing - specified torque and tightening sequence 1

Volkswagen ID.4. Assembly overview - high-voltage battery (removed)

Upper part of battery housing - specified torque and tightening sequence 2 for production condition and repair bolt stage 2

Volkswagen ID.4. Assembly overview - high-voltage battery (removed)

Upper part of battery housing - specified torque and tightening sequence 2 for repair bolt stage 1

Volkswagen ID.4. Assembly overview - high-voltage battery (removed)

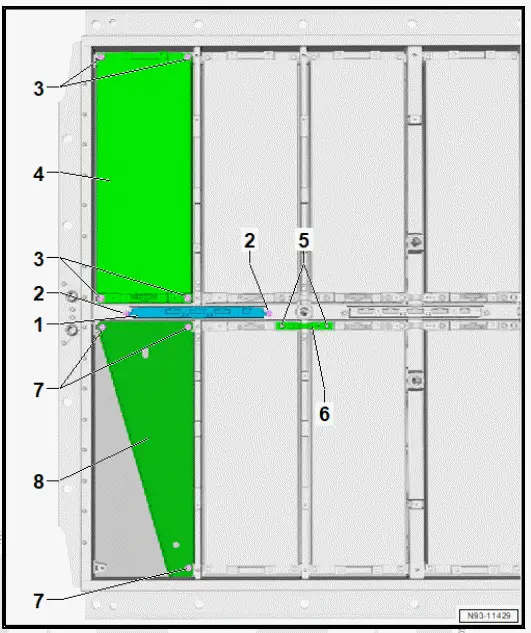

Assembly overview - battery modules

Volkswagen ID.4. Assembly overview - battery modules

  1. Battery modules control unit
  • ⇒ Rep. gr. 93 ; Removing and installing battery modules control unit
  1. Bolt
  • Qty. 2
  • M5 x 25
  •  4.5 Nm
  1.  Bolt
  • Qty. 4
  •  Renew after removing
  • M8 x 72
  • 16 Nm + 180º
  1. Battery module
  • ⇒ Rep. gr. 93 ; Removing battery module
  • ⇒ Rep. gr. 93 ; Installing battery module
  1. Bolt
  • Qty. 2
  • M6 x 20
  • 8 Nm
  1. High-voltage connector
  2. Bolt
  • Qty. 3
  • M8 x 25
  • 20 Nm
  1. Reinforcement for highvoltage battery body aperture
  • Depending on equipment/version

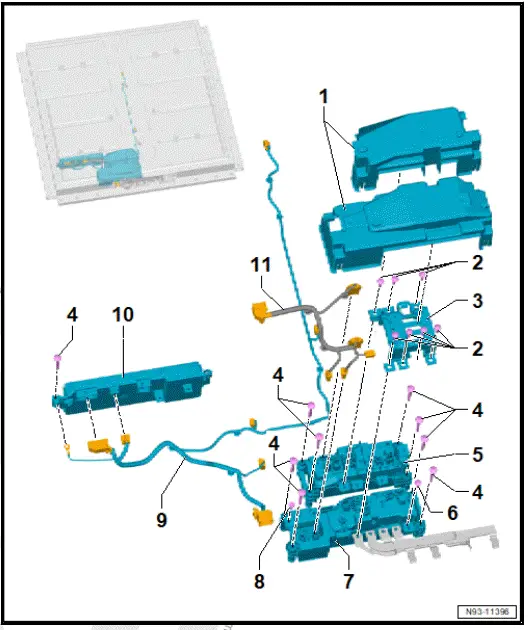

Assembly overview - switching unit for high-voltage battery, 48, 55, 62 kWh

Assembly overview - switching unit for high-voltage battery

Volkswagen ID.4. Assembly overview - switching unit for high-voltage battery, 48, 55, 62 kWh

  1. Cover
  • 2x
  1. Bolt
  • 7x
  • Renew after removing
  • M6 x 20
  • 8 Nm
  1. Bridge
  2. Bolt
  • 9x
  • M6 x 52
  • 8 Nm
  1. Switching unit for highvoltage battery, positive terminal - SX8-
  • ⇒ Rep. gr. 93 ; Removing and installing switching unit for highvoltage battery, positive terminal SX8
  1. Bolt
  • Renew after removing
  • M6 x 20
  • 8 Nm
  1. Switching unit for highvoltage battery, negative terminal - SX7-
  • With high-voltage battery isolation igniter - N563-
  •  ⇒ Rep. gr. 93 ; Removing and installing switching unit for high-voltage battery, negative terminal SX7
  1. Bolt
  • M6 x 20
  • 8 Nm
  1. Electrical wire
  2. Battery regulation control unit - J840-
  • ⇒ Rep. gr. 93 ; Removing and installing battery regulation control unit J840
  1. Electrical wire

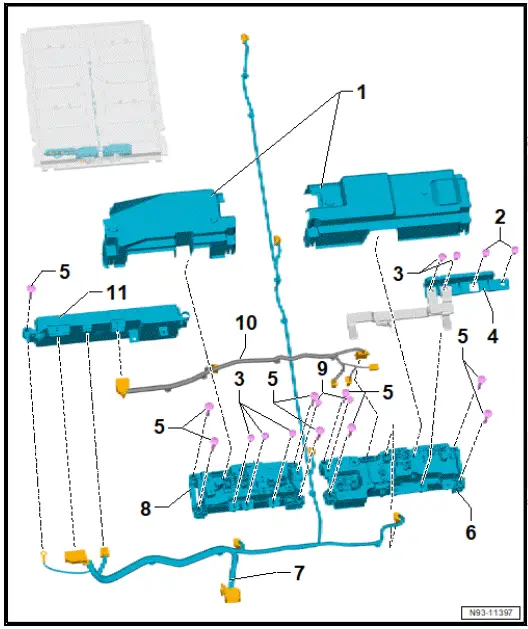

Assembly overview - switching unit for high-voltage battery, 82 kWh

Assembly overview - switching unit for high-voltage battery

Volkswagen ID.4. Assembly overview - switching unit for high-voltage battery, 82 kWh

  1. Cover
  • 2x
  1. Bolt
  • 2x
  • Renew after removing
  • M6 x 20
  • 8 Nm
  1. Bolt
  • 5x
  • Renew after removing
  • M6 x 20
  • 8 Nm
  1. Bridge
  2. Bolt
  • 9x
  • M6 x 52
  • 8 Nm
  1. Switching unit for highvoltage battery, negative terminal - SX7-
  • With high-voltage battery isolation igniter - N563-
  • ⇒ Rep. gr. 93 ; Removing and installing switching unit for highvoltage battery, negative terminal SX7
  1. Electrical wire
  2.  Switching unit for highvoltage battery, positive terminal - SX8-
  • ⇒ Rep. gr. 93 ; Removing and installing switching unit for high-voltage battery, positive terminal SX8
  1. Bolt for high-voltage connecting bracket
  • M6 x 20
  • 8 Nm
  1. Electrical wire
  2. Battery regulation control unit - J840-
  • ⇒ Rep. gr. 93 ; Removing and installing battery regulation control unit J840

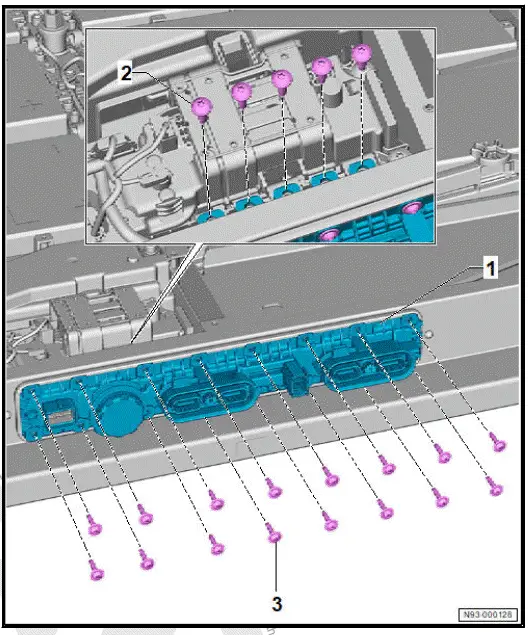

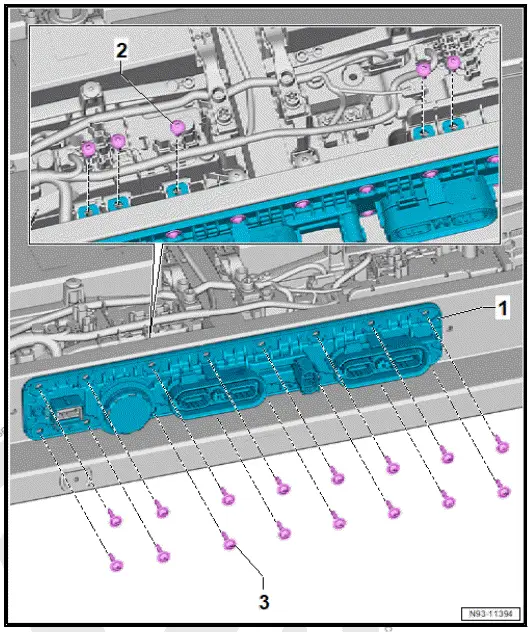

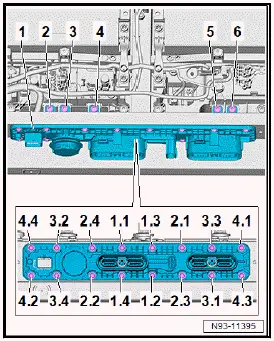

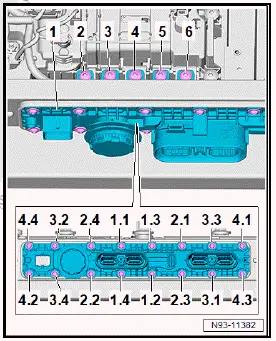

Assembly overview - high-voltage battery, connecting element, 48, 55, 62 kWh

Assembly overview - high-voltage battery, connector strip

Volkswagen ID.4. Assembly overview - high-voltage battery, connecting element, 48, 55, 62 kWh

  1. Connector strip
  • ⇒ Rep. gr. 93 ; Removing and installing connector strip
  1. Bolt
  • Qty. 5
  • Renew after removing
  • Specified torque and tightening sequence
  • M6×20
  1. Bolt
  • Qty. 16
  • Renew after removing
  • Specified torque and tightening sequence
  • M5×25

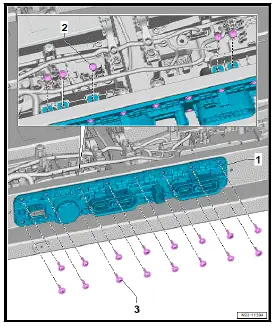

Connector strip - specified torque and tightening sequence

Volkswagen ID.4. Assembly overview - high-voltage battery, connecting element, 48, 55, 62 kWh

Assembly overview - high-voltage battery, connecting element, 82 kWh

Assembly overview - high-voltage battery, connector strip

  1. Connector strip
  • ⇒ Rep. gr. 93 ; Removing and installing connector strip
  1. Bolt
  • Qty. 5
  • Renew after removing
  • Specified torque and tightening sequence
  • M6×20
  1. Bolt
  • Qty. 16
  • Renew after removing
  • Specified torque and tightening sequence
  • M5×25

Volkswagen ID.4. Assembly overview - high-voltage battery, connecting element, 82 kWh

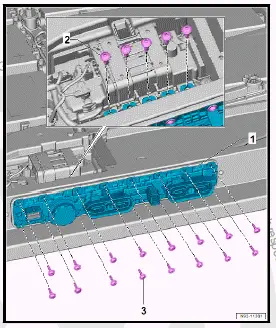

Connection strip - specified torque and tightening sequence

Volkswagen ID.4. Assembly overview - high-voltage battery, connecting element, 82 kWh

Removing battery module

Special tools and workshop equipment required

  • Contact protection - T10608-
  • High-voltage tool kit - VAS 6762-
  • High-voltage tool kit - VAS 6883A-
  • adapter - 10-222A/14-
  • contact protection - T10628-
  • hook - 10-222A/10-
  • lifting tackle - 3033-
  • lifting tackle - T10619-
  • removal wedge set - VAS 895 015-
  • shackle - 10-222A/12-
  • support bracket - 10-222B-
  • workshop hoist - VAS 6100-

DANGER

High voltage can cause fatal injury.

Danger of severe or fatal injuries from electric shock or electric arcs.

  • Suitable personal protective equipment (PPE) must be worn for the following work.
  • The following steps require a second suitably qualified person to be present to supervise.
  • Outside the danger zone, the second person may assist the high-voltage expert where required to the extent of his/her qualification.
  • The personal protective equipment (PPE) must be dry and undamaged.

Put on protective equipment ⇒ Electronic parts catalogue (ETKA) before performing the following work steps:

  • Clothing approved for working with electric arcs (minimum protection class 2, at least 318 kJ)
  • Helmet with visor approved for working with electric arcs (minimum protection class 2, at least 318 kJ)
  •  Gloves approved for working with electric arcs with nitrile glove liners (minimum protection class 2, at least 318 kJ), minimum insulating effect up to 500 V
  • Safety shoes with ESD protection
  • ⇒ Rep. gr. 93 ; Open high-voltage battery 1 AX2 .
  • ⇒ Rep. gr. 93 ; Interrupt electrical circuit .
  • ⇒ Rep. gr. 93 ; Charging and discharging battery modules
  • Mark installation position of electrical connectors and highvoltage connecting brackets.
  • Unplug electrical connector -2-.
  •  Fit contact protection - T10628- -A- on battery module -1-.
  • Remove bolts -3-.
  • Remove high-voltage connecting bracket -4-.
  • Fit contact protection - T10608- on open high-voltage connection at battery module.

Volkswagen ID.4. Removing battery module

Important

  • Contact protection - T10608- -B- must be fitted.

Volkswagen ID.4. Removing battery module

  • Fit contact protection - T10628- -A-.
  • Remove bolts -2-.
  • Remove high-voltage connecting bracket -3-.
  • Fit contact protection - T10608- on open high-voltage connection at battery module.

Important

  • Contact protection - T10608- -2- must be fitted on open highvoltage connections.

Volkswagen ID.4. Removing battery module

  • Remove bolts -3-.

NOTICE

Mechanical forces on connector housing of battery modules control unit Risk of damage to battery modules control unit

  • Unplug electrical connector of battery modules control unit in vicinity of battery module that is to be removed.

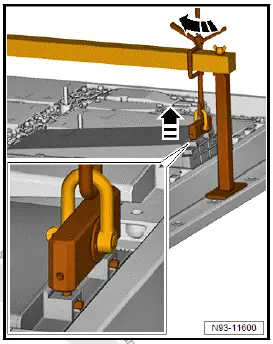

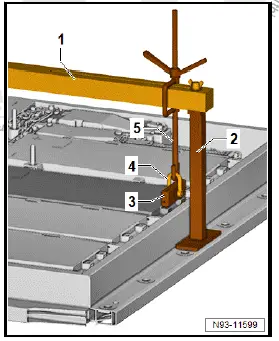

  • Prepare support bracket - 10-222B- -1- and adapter - 10-222A/14- -2- and position over centre of battery module.
  • Connect battery module to lifting tackle - T10619- -3-, shackle - 10-222A/12- -4- and hook - 10-222A/10- -5-.

Volkswagen ID.4. Removing battery module

  • Lift battery module off lower part of battery housing at outside in direction of -arrow- until battery module is released.

Volkswagen ID.4. Removing battery module

  • Remove support bracket - 10-222B- -1- and adapter - 10-222A/14- -2-.

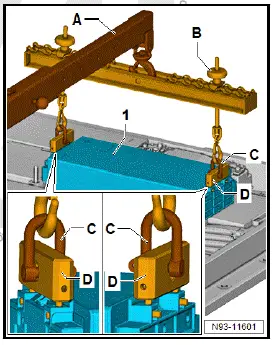

  • Attach lifting tackle - 3033- -B- to workshop hoist - VAS 6100- -A-.
  • Lift battery module -1- using workshop hoist - VAS 6100- -A-, lifting tackle - T10619- -D-, shackle - 10-222A/12- -Cand lifting tackle - 3033- -B-.
  • Set battery module down on a clean surface.

Volkswagen ID.4. Removing battery module

Important

  • After the module has been lifted, the 2-component thermal grease must be renewed.

NOTICE

Risk of leaks in high-voltage battery 1 - AX2- .

  • Do not remove 2-component thermal grease from sealant on inner edge of lower part of battery housing. If 2-component thermal grease is touching sealant, leave approx.

    3 mm of 2-component thermal grease on sealant.

  • Carefully remove 2-component thermal grease residue from lower part of battery housing using a suitable scraper from removal wedge set - VAS 895 015- .

If reusing battery module

  • Remove 2-component thermal grease from battery module, making sure no residue is left.

Installing battery module

Special tools and workshop equipment required

  • High-voltage tool kit - VAS 6762-
  • High-voltage tool kit - VAS 6883A-
  • Torque wrench - VAS 6883/1A-
  • accidental contact protection - T10608-
  • accidental contact protection insert - T10628-
  • cartridge opener - VAS 221 005-
  • double cartridge gun - VAS 5237-
  • lifting bracket - T10619-
  • lifting tackle - 3033-
  • reversible ratchet - VAS 6762/29-
  • shackle - 10-222A/12-
  • template - T10606-
  • workshop hoist - VAS 6100-

DANGER

High voltage can cause fatal injury.

Danger of severe or fatal injuries from electric shock or electric arcs.

  • Suitable personal protective equipment (PPE) must be worn for the following work.
  • The following steps require a second suitably qualified person to be present to supervise.
  • Outside the danger zone, the second person may assist the high-voltage expert where required to the extent of his/her qualification.
  • The personal protective equipment (PPE) must be dry and undamaged.

Put on the required protective equipment for the subsequent work steps ⇒ Electronic parts catalogue (ETKA) :

  • Arc flash resistant clothing (at least APC 2, at least 318 kJ)
  • Helmet with arc flash resistant visor (at least APC 2, at least 318 kJ)
  • Arc flash resistant gloves with nitrile glove liners (at least APC 2, at least 318 kJ), insulating up to at least 500 V
  • Safety shoes with ESD protection

Installing

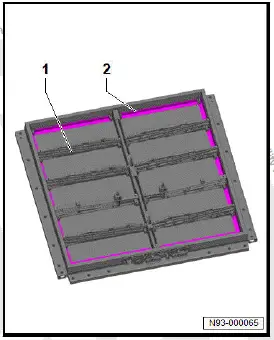

  • On removed battery module, check if separating film of lower part of battery housing -2- is present and undamaged.
  • Only affix separating film -2- on inner edges of lower part of battery housing -1-.

Volkswagen ID.4. Installing battery module

Important

  • Removed battery modules must be inserted in lower part of battery housing with 2-pack thermal grease ⇒ Electronic parts catalogue (ETKA) .
  • Before installing, adhere to cleaning solution flash-off time of 10 minutes.
  • Bonding surfaces are dry.
  • Clean surfaces onto which 2-pack thermal compound is to be applied using cleaning solution ⇒ Electronic parts catalogue (ETKA) .
  • Insert template - T10606- -A- into lower part of battery housing.

    Push in direction of -arrows- up to position shown.

Volkswagen ID.4. Installing battery module

NOTICE

2-pack thermal grease application insufficient.

Thermal conductivity impaired.

  • Apply 2-pack thermal grease in one pass and without bubbles.

Important

  • Use cartridge opener - VAS 221 005- to open cartridge.
  • Fill 2-pack thermal grease -A- using double cartridge gun - VAS 5237- -C- up to edge of template - T10606- -B-.
  • Remove template - T10606- -B- from lower part of battery housing.

Volkswagen ID.4. Installing battery module

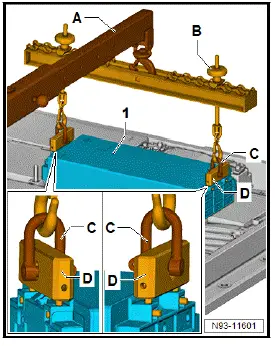

  • Attach lifting tackle - 3033- -B- to workshop hoist - VAS 6100- -A-.
  • Position battery module -1- with workshop hoist - VAS 6100- -A-, lifting bracket - T10619- -D-, shackle - 10-222A/12- -Cand lifting tackle - 3033- -B- above lower part of battery housing.
  • Screw in bolts of battery module by hand to continue guiding battery module.
  • Lower battery module -1- into lower part of battery housing up to 3 cm before end position. Screw in bolts 3 to 4 turns of thread.
  • Lower battery module -1- to final position.

Volkswagen ID.4. Installing battery module

Important

  • Torque must be monitored by a 2nd person.
  • Tighten bolts of battery module in diagonal sequence using torque wrench - VAS 6883/1A- .
  • Tighten bolts of battery module to turning further angle in diagonal sequence using reversible ratchet - VAS 6762/29- .

Installing

Important

  • Torque must be monitored by a 2nd person.
  • Remove accidental contact protection - T10608- from battery module -1-.
  •  Fit accidental contact protection insert - T10628- -A-.
  • Install battery connector -4-.
  • Tighten bolts -3-.
  • Test battery connector against housing for short circuit.
  • Connect electrical connector -2-.

Volkswagen ID.4. Installing battery module

Important

  • Torque must be monitored by a 2nd person.
  • Remove accidental contact protection - T10608- -B- from battery module -1-.
  • Fit accidental contact protection insert - T10628- -A-.
  • Install battery connector -3-.
  • Tighten bolts -2-.
  • Test battery connector against housing for short circuit.

Volkswagen ID.4. Installing battery module

Tightening torques

  • ⇒ Rep. gr. 93 ; Assembly overview - high-voltage battery, battery modules

Removing and installing battery modules control unit

Special tools and workshop equipment required

  • High-voltage tool kit - VAS 6762-
  • Torque wrench, insulated - VAS 691 001-

DANGER

High voltage can cause fatal injury.

Danger of severe or fatal injuries from electric shock or electric arcs.

  • Suitable personal protective equipment (PPE) must be worn for the following work.
  • The following steps require a second suitably qualified person to be present to supervise.
  • Outside the danger zone, the second person may assist the high-voltage expert where required to the extent of his/her qualification.
  • The personal protective equipment (PPE) must be dry and undamaged.

Put on protective equipment ⇒ Electronic parts catalogue (ETKA) before performing the following work steps:

  • Clothing approved for working with electric arcs (minimum protection class 2, at least 318 kJ)
  • Helmet with visor approved for working with electric arcs (minimum protection class 2, at least 318 kJ)
  • Gloves approved for working with electric arcs with nitrile glove liners (minimum protection class 2, at least 318 kJ), minimum insulating effect up to 500 V
  • Safety shoes with ESD protection

Battery modules control unit - J1208- is referred to as battery modules control unit below.

Battery modules control unit 5 - J1212- is referred to as battery modules control unit below.

Battery modules control unit 9 - J1216- is referred to as battery modules control unit below.

Removing

  • ⇒ Rep. gr. 93 ; Open high-voltage battery 1 AX2 .
  • ⇒ Rep. gr. 93 ; Interrupt electrical circuit .

NOTICE

Risk of damage to high-voltage battery 1 - AX2- if components are interchanged.

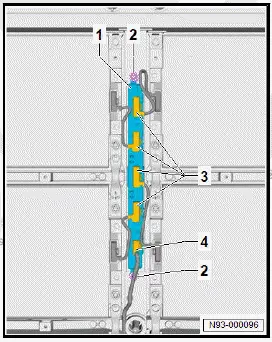

  • Mark installation position of electrical connectors, cable routing and installation position of battery modules control unit.
  • Unplug electrical connectors -3- and -4- and move electrical wire to one side.
  • Remove bolts -2-.
  • Remove battery modules control unit -1-.

Volkswagen ID.4. Removing and installing battery modules control unit

Installing

Installation is carried out in reverse order; note the following:

  • Perform "Controller configuration" function with ⇒ Vehicle diagnostic tester ⇒ Rep. gr. 00 ; Starting diagnosis .

Tightening torques

  •  Rep. gr. 93 ; Assembly overview - high-voltage battery, battery modules

Removing and installing connecting element, 48, 55 kWh

Removing and installing connector strip

Special tools and workshop equipment required

  • High-voltage tool kit - VAS 6762-
  • High-voltage tool kit - VAS 6883A-
  • Torque wrench - VAS 6883/1A-
  • contact protection - T10608-
  • contact protection - T10628-

DANGER

High voltage can cause fatal injury.

Danger of severe or fatal injuries from electric shock or electric arcs.

  • Suitable personal protective equipment (PPE) must be worn for the following work.
  • The following steps require a second suitably qualified person to be present to supervise.
  • Outside the danger zone, the second person may assist the high-voltage expert where required to the extent of his/her qualification.
  • The personal protective equipment (PPE) must be dry and undamaged.
  • Put on protective equipment ⇒ Electronic parts catalogue (ETKA) before performing the following work steps:
  • Clothing approved for working with electric arcs (minimum protection class 2, at least 318 kJ)
  • Helmet with visor approved for working with electric arcs (minimum protection class 2, at least 318 kJ)
  • Gloves approved for working with electric arcs with nitrile glove liners (minimum protection class 2, at least 318 kJ), minimum insulating effect up to 500 V
  •  Safety shoes with ESD protection

Switching unit for high-voltage battery, negative terminal - SX7- is referred to below as switching unit, negative terminal.

Removing

  • ⇒ Rep. gr. 93 ; Open high-voltage battery 1 AX2 .
  • ⇒ Rep. gr. 93 ; Interrupt electrical circuit .

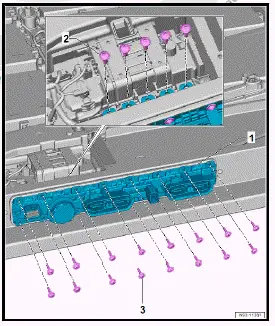

  • Fit contact protection - T10628- on battery module 2 - J992- .
  • Unscrew bolts -2- from high-voltage connecting brackets -1- on switching unit, negative terminal -3- and battery module 2 - J992- .
  • Remove high-voltage connecting bracket -1-.
  • Fit contact protection - T10608- on open high-voltage connection at battery module 2 - J992- .
  • Detach cap for switching unit, negative terminal -3-.

Volkswagen ID.4. Removing and installing connecting element, 48, 55 kWh

  • Remove bolts -2-.
  • Remove bolts -3-.
  •  Remove connector strip -1-.

Volkswagen ID.4. Removing and installing connecting element, 48, 55 kWh

Installing

Installation is carried out in reverse order; note the following:

Important

  • Have a second person check all torques.
  • Check that seal is not damaged.
  • Clean sealing surface with cleaning solution ⇒ Electronic parts catalogue (ETKA) .
  • Apply sealant ⇒ Electronic parts catalogue (ETKA) all around outside of connector strip next to existing seal.
  • Ensure lower part of battery housing makes contact with seal.
  • Install high-voltage connecting bracket and check it for short circuit to lower part of battery housing.

Tightening torques

  • ⇒ Rep. gr. 93 ; Assembly overview - switching unit for high-voltage battery
  • ⇒ Rep. gr. 93 ; Assembly overview - high-voltage battery, connector strip

Removing and installing connecting element, 62 kWh

Removing and installing connector strip

Special tools and workshop equipment required

  • igh-voltage tool kit - VAS 6762-
  • High-voltage tool kit - VAS 6883A-
  • Torque wrench - VAS 6883/1A-
  • accidental contact protection - T10608-
  • accidental contact protection insert - T10628-

DANGER

High voltage can cause fatal injury.

Danger of severe or fatal injuries from electric shock or electric arcs.

  • Suitable personal protective equipment (PPE) must be worn for the following work.
  • The following steps require a second suitably qualified person to be present to supervise.
  • Outside the danger zone, the second person may assist the high-voltage expert where required to the extent of his/her qualification.
  • The personal protective equipment (PPE) must be dry and undamaged.

Put on the required protective equipment for the subsequent work steps ⇒ Electronic parts catalogue (ETKA) :

  • Arc flash resistant clothing (at least APC 2, at least 318 kJ)
  • Helmet with arc flash resistant visor (at least APC 2, at least 318 kJ)
  •  Arc flash resistant gloves with nitrile glove liners (at least APC 2, at least 318 kJ), insulating up to at least 500 V
  • Safety shoes with ESD protection

Switching unit for high-voltage battery, negative terminal - SX7- is referred to hereafter as switching unit, negative terminal.

Removing

  • ⇒ Rep. gr. 93 ; Open high-voltage battery 1 [AX2] .
  • ⇒ Rep. gr. 93 ; Open electrical circuit .
  • Fit accidental contact protection insert - T10628- onto battery module 1 - J991- .
  • Unscrew bolts -3- from high-voltage connector -2- on switching unit, negative terminal -1- and battery module 1 - J991- .
  • Remove high-voltage connector -2-.
  • Fit accidental contact protection - T10608- onto exposed high-voltage connection on battery module 1 - J991- .
  • Detach cap for switching unit, negative terminal -1-.

Volkswagen ID.4. Removing and installing connecting element, 62 kWh

  • Unscrew bolts -2-.
  • Unscrew bolts -3-.
  • Remove connector strip -1-.

Volkswagen ID.4. Removing and installing connecting element, 62 kWh

Installing

Install in reverse order of removal, observing the following:

Important

  • Have an additional person observe all torque settings.
  • Make sure not to damage seal.
  • Clean sealing surface with cleaning solution ⇒ Electronic parts catalogue (ETKA) .
  • Apply sealant ⇒ Electronic parts catalogue (ETKA) all around on outer side of connector strip, next to existing seal.
  • Make sure that seal makes contact with lower part of battery housing.
  • Install high-voltage connector and check for short circuit to lower part of battery housing.

Tightening torques

  • ⇒ Rep. gr. 93 ; Assembly overview - switching unit for high-voltage battery
  • ⇒ Rep. gr. 93 ; Assembly overview - high-voltage battery, connector strip

Removing and installing connecting element, 82 kWh

Removing and installing connector strip

Special tools and workshop equipment required

  • High-voltage tool kit - VAS 6762-
  • High-voltage tool kit - VAS 6883A-
  • Torque wrench - VAS 6883/1A-
  • contact protection - T10608-
  • contact protection - T10628-

DANGER

High voltage can cause fatal injury.

Danger of severe or fatal injuries from electric shock or electric arcs.

  • Suitable personal protective equipment (PPE) must be worn for the following work.
  • The following steps require a second suitably qualified person to be present to supervise.
  • Outside the danger zone, the second person may assist the high-voltage expert where required to the extent of his/her qualification.
  • The personal protective equipment (PPE) must be dry and undamaged.

Put on protective equipment ⇒ Electronic parts catalogue (ETKA) before performing the following work steps:

  • Clothing approved for working with electric arcs (minimum protection class 2, at least 318 kJ)
  • Helmet with visor approved for working with electric arcs (minimum protection class 2, at least 318 kJ)
  • Gloves approved for working with electric arcs with nitrile glove liners (minimum protection class 2, at least 318 kJ), minimum insulating effect up to 500 V
  • Safety shoes with ESD protection

Switching unit for high-voltage battery, negative terminal - SX7- is referred to below as switching unit, negative terminal.

Switching unit for high-voltage battery, positive terminal - SX8- is referred to below as switching unit, positive terminal.

Removing

  • ⇒ Rep. gr. 93 ; Open high-voltage battery 1 AX2 .
  • ⇒ Rep. gr. 93 ; Interrupt electrical circuit .
  • Fit contact protection - T10628- on battery module 1 - J991- and battery module 2 - J992- .
  • Unscrew bolts -2- from high-voltage connecting brackets -1- on switching unit, negative terminal -3-, switching unit, positive terminal -3-, battery module 1 - J991- and battery module 2 - J992- .
  • Remove high-voltage connecting bracket -1-.
  •  Fit contact protection - T10608- on open high-voltage connection on battery module 1 - J991- and battery module 2 - J992- .
  • Detach caps for switching unit, negative terminal -3- and switching unit, positive terminal -3-.

Volkswagen ID.4. Removing and installing connecting element, 82 kWh

  • Remove bolts -2-.
  • Remove bolts -3-.
  • Remove connector strip -1-.

Volkswagen ID.4. Removing and installing connecting element, 82 kWh

Installing

Installation is carried out in reverse order; note the following:

Important

  • Have a second person check all torques.
  • Check that seal is not damaged.
  • Clean sealing surface with cleaning solution ⇒ Electronic parts catalogue (ETKA) .
  •  Apply sealant ⇒ Electronic parts catalogue (ETKA) all around outside of connector strip next to existing seal.
  • Ensure lower part of battery housing makes contact with seal.
  • Install high-voltage connecting bracket and check it for short circuit to lower part of battery housing.

Tightening torques

  • ⇒ Rep. gr. 93 ; Assembly overview - switching unit for high-voltage battery
  • ⇒ Rep. gr. 93 ; Assembly overview - high-voltage battery, connector strip

Removing and installing switching unit for high-voltage battery, negative terminal SX7

Installing

  • Battery regulation control unit - J840- , switching unit for high-voltage battery, negative terminal - SX7- and switching unit for high-voltage battery, positive terminal - SX8- must be renewed together ⇒ Rep. gr. 93 ; Removing and installing battery regulation control unit [J840] .

Removing and installing switching unit for high-voltage battery, positive terminal SX8

Installing

  • Battery regulation control unit - J840- , switching unit for high-voltage battery, negative terminal - SX7- and switching unit for high-voltage battery, positive terminal - SX8- must be renewed together ⇒ Rep. gr. 93 ; Removing and installing battery regulation control unit [J840] .

Volkswagen ID.4 (E21) 2021-2026  Service Manual

Volkswagen ID.4 (E21) 2021-2026 Service Manual

High-voltage battery components, edge of upper part of battery housing without wax

Explore more

Featured ID.4 Guides

Selected owner and service information from our Volkswagen ID.4 manual library.

Rear Cross MemberID.4 Guide

Rear Cross Member

Service information for the Volkswagen ID.4 rear cross member, including component location, attachment points and repair-oriented removal and installation guidance.

Read guide
