Volkswagen ID.4: High-voltage components, charging unit for high-voltage battery and voltage converter

• Overview of fitting locations - high-voltage components, all-wheel drive
• Overview of fitting locations - high-voltage components, rear-wheel drive

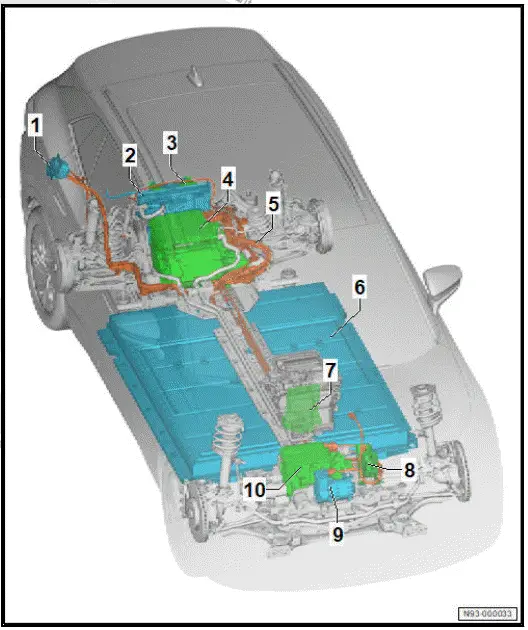

Overview of fitting locations - high-voltage components, all-wheel drive

Overview of fitting locations - high-voltage components

1. High-voltage battery charging socket 1 - UX4-

• ⇒ Rep. gr. 93 ; Assembly overview - charging socket
•  ⇒ Rep. gr. 93 ; Removing and installing high-voltage battery charging socket 1 [UX4]

2. Voltage converter - A19-

• ⇒ Rep. gr. 93 ; Assembly overview - voltage converter
• ⇒ Rep. gr. 93 ; Removing and installing voltage converter [A19]

3.  Charging unit 1 for highvoltage battery - AX4-

• ⇒ Rep. gr. 93 ; Assembly overview - charging unit for highvoltage battery
• ⇒ Rep. gr. 93 ; Removing and installing charging unit 1 for highvoltage battery [AX4]

4. Three-phase current drive - VX54-

• With power and control electronics for electric drive - JX1-
• ⇒ Rep. gr. 10 ; Assembly overview - motor
• ⇒ Rep. gr. 10 ; Removing motor
• ⇒ Rep. gr. 10 ; Installing motor
• ⇒ Rep. gr. 93 ; Removing and installing power and control electronics for electric drive

5. High-voltage cable
6. High-voltage battery 1 - AX2-

• ⇒ Rep. gr. 93 ; Assembly overview - high-voltage battery (installed)
• ⇒ Rep. gr. 93 ; Removing and installing high-voltage battery 1 [AX2]

7. High-voltage heater (PTC) - ZX17-

• With high-voltage heater (PTC) control unit - J848-
• With high-voltage heater (PTC) - Z115-
• ⇒ Heating, air conditioning; Rep. gr. 87 ; Front heater and air conditioning unit; Removing and installing high-voltage heater (PTC) [ZX17]

8. PTC heater element 3 - Z132-

•  ⇒ Heating, air conditioning; Rep. gr. 87 ; Coolant circuit; Removing and installing PTC heater element 3 [Z132]

9. Air conditioner compressor - VX81-

• With electrical air conditioner compressor - V470-
• With control unit for air conditioning compressor - J842-
• ⇒ Heating, air conditioning system; Rep. gr. 87 ; Air conditioner compressor; Assembly overview - air conditioner compressor
• ⇒ Heating, air conditioning; Rep. gr. 87 ; Air conditioner compressor; Removing and installing electrical air conditioner compressor [VX81]

10. Three-phase current drive 2 - VX97-

• With power and control electronics 2 for electric drive - JX4-
• ⇒ Rep. gr. 10 ; Assembly overview - motor
• ⇒ Rep. gr. 10 ; Removing motor
• ⇒ Rep. gr. 10 ; Installing motor
• ⇒ Rep. gr. 93 ; Removing and installing power and control electronics for electric drive

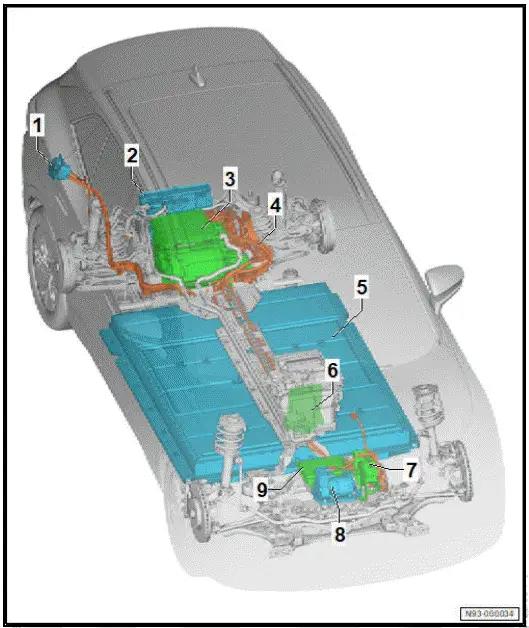

Overview of fitting locations - high-voltage components, rear-wheel drive

1. High-voltage battery charging socket 1 - UX4-

• ⇒ Rep. gr. 93 ; Assembly overview - charging socket
• ⇒ Rep. gr. 93 ; Removing and installing high-voltage battery charging socket 1 [UX4]

2. Charging unit 1 for highvoltage battery - AX4-

• ⇒ Rep. gr. 93 ; Assembly overview - charging unit for highvoltage battery
• ⇒ Rep. gr. 93 ; Removing and installing charging unit 1 for highvoltage battery [AX4]

3. Three-phase current drive - VX54-

• With power and control electronics for electric drive - JX1-
• ⇒ Rep. gr. 10 ; Assembly overview - motor
• ⇒ Rep. gr. 10 ; Removing motor
• ⇒ Rep. gr. 10 ; Installing motor
• ⇒ Rep. gr. 93 ; Removing and installing power and control electronics for electric drive

4. High-voltage cable
5. High-voltage battery 1 - AX2-

• ⇒ Rep. gr. 93 ; Assembly overview - high-voltage battery (installed)
• ⇒ Rep. gr. 93 ; Removing and installing high-voltage battery 1 [AX2]

6. High-voltage heater (PTC) - ZX17-

• With high-voltage heater (PTC) control unit - J848-
• With high-voltage heater (PTC) - Z115-
• ⇒ Heating, air conditioning; Rep. gr. 87 ; Front heater and air conditioning unit; Removing and installing high-voltage heater (PTC) [ZX17]

7. PTC heater element 3 - Z132-

• ⇒ Heating, air conditioning; Rep. gr. 87 ; Coolant circuit; Removing and installing PTC heater element 3 [Z132]

8. Air conditioner compressor - VX81-

• With electrical air conditioner compressor - V470-
• With control unit for air conditioning compressor - J842-
• ⇒ Heating, air conditioning system; Rep. gr. 87 ; Air conditioner compressor; Assembly overview - air conditioner compressor
• ⇒ Heating, air conditioning; Rep. gr. 87 ; Air conditioner compressor; Removing and installing electrical air conditioner compressor [VX81]

9. Voltage converter - A19-

• ⇒ Rep. gr. 93 ; Assembly overview - voltage converter
• ⇒ Rep. gr. 93 ; Removing and installing voltage converter [A19]
