Volkswagen ID.4: Lights in exterior mirror

• Removing and installing turn signal repeater bulb [L131]/[L132]
• Removing and installing entry light in exterior mirror [W52]/[W53]

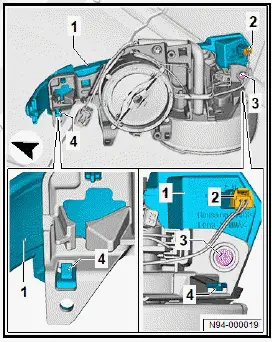

Removing and installing turn signal repeater bulb [L131]/[L132]

Driver side exterior mirror turn signal bulb - L131- and front passenger side exterior mirror turn signal bulb - L132- are referred to hereafter as turn signal.

Removal and installation are described for left side of vehicle as an example.

Removing

• Remove lower mirror cover ⇒ General body repairs, exterior; Rep. gr. 66 ; Exterior mirrors; Removing and installing lower mirror cover .
• Unscrew bolt -3-.
• Disconnect electrical connector -2-.
• Release locking devices -4-.
• Remove turn signal -1-.

Installing

Install in the reverse order of removal, observing the following:

Tightening torques

• ⇒ General body repairs, exterior; Rep. gr. 66 ; Exterior mirror; Assembly overview - exterior mirror

Removing and installing entry light in exterior mirror [W52]/[W53]

Entry light in exterior mirror, driver side - W52- and entry light in exterior mirror, passenger side - W53- will henceforth be referred to as "entry light".

Removal and installation are described for left side of vehicle as an example.

Removing

• Remove lower mirror cover ⇒ General body repairs, exterior; Rep. gr. 66 ; Exterior mirrors; Removing and installing lower mirror cover .
• Unscrew bolts -2-.
• Remove entry light -1-.

Installing

Install in the reverse order of removal, observing the following:

Tightening torques

•  ⇒ General body repairs, exterior; Rep. gr. 66 ; Exterior mirror; Assembly overview - exterior mirror
