Volkswagen ID.4: Tail lights

• Assembly overview - tail light cluster on body
• Removing and installing centre rear tail light cluster [MX13]
• Removing and installing tail light cluster [MX3]/[MX4]

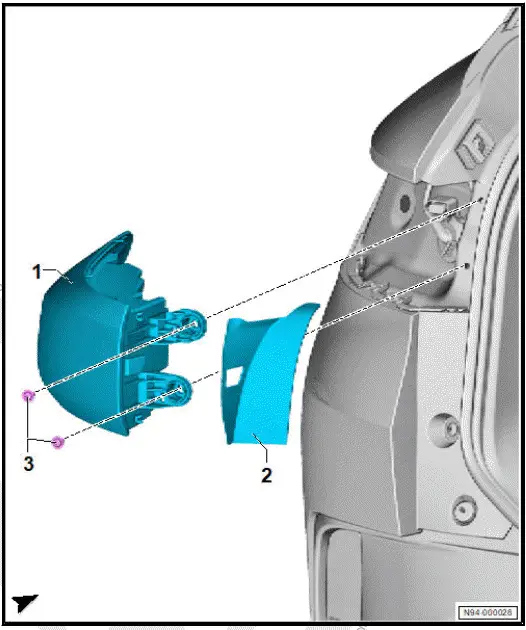

Assembly overview - tail light cluster on body

Overview shown for left side of vehicle as an example

1. Left tail light - MX3- / right tail light - MX4-

• ⇒ Rep. gr. 94 ; Removing and installing tail light cluster [MX3]/ [MX4]

2. Tail light cluster cover

• ⇒ Rep. gr. 94 ; Removing and installing tail light cluster [MX3]/ [MX4]

3. Bolt

• Qty. 2
• 3.5 Nm

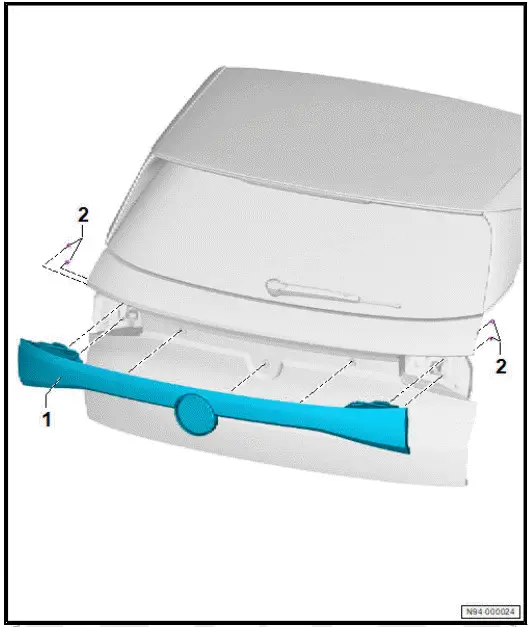

Assembly overview  tail lights in rear lid

1. Centre tail light cluster - MX13-

• ⇒ Rep. gr. 94 ; Removing and installing centre rear tail light cluster [MX13]

2. Nut

• qty. 4
• 4 Nm

Removing and installing centre rear tail light cluster [MX13]

Centre tail light cluster - MX13- is referred to hereafter as centre tail light cluster.

Removing

Renewing tail light cluster:

• Renew rear badge ⇒ General body repairs, exterior; Rep.gr. 66 ; Lettering and badges; Removing and installing rear badge .

All vehicles (continued)

Trim with service opening:

• Lever off caps -1- using commercially available plastic wedge.

All vehicles (continued)

Trim without service opening:

• Remove lower rear lid trim ⇒ General body repairs, interior; Rep. gr. 70 ; Luggage compartment trims; Removing and installing lower rear lid trim .

All vehicles (continued)

• Disconnect electrical connectors -3-.
• Unscrew nuts -2-.
• Remove centre tail light cluster -1-.

Installing

Install in the reverse order of removal, observing the following:

Tightening torques

• ⇒ Rep. gr. 94 ; Assembly overview - tail light cluster on rear lid

Removing and installing tail light cluster [MX3]/[MX4]

Left tail light cluster - MX3- and right tail light cluster - MX4- are referred to hereafter as tail light cluster.

Removal and installation are described for the left side of vehicle as an example.

Removing

• Release tail light cluster cover -1- in direction of -arrowusing commercially available plastic wedge.
• Remove tail light cluster cover -1- towards rear.

• Unscrew bolts -2-.
• Remove tail light cluster -1- enough to allow access to electrical connector.
• Disconnect electrical connector.
• Remove tail light cluster -1-.

Installing

Install in the reverse order of removal, observing the following:

Tightening torques

• ⇒ Rep. gr. 94 ; Assembly overview - tail light cluster on body

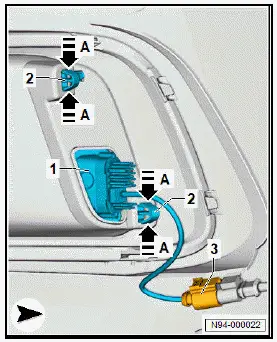

Removing and installing rear fog light [X3]

The rear fog light - X3- will henceforth be referred to as "rear fog light".

Removal and installation are described for the left vehicle side as an example.

Removing

• Remove bumper cover ⇒ General body repairs, exterior; Rep. gr. 63 ; Rear bumper; Removing and installing bumper cover .
• Disconnect electrical connector -3-.
• Release retaining clips -2- in direction of -arrow A-.
• Remove rear fog light -1-.

Installing

Install in reverse order of removal, observing the following:

• The rear fog light must engage audibly.

Tightening torques

• ⇒ General body repairs, exterior; Rep. gr. 63 ; Rear bumper; Assembly overview - rear bumper
