Volkswagen ID.4: Seat belt verification

• Assembly overview - seat occupied sensor
• Removing and installing rear seat occupied sensor [G177/G178/G1010]

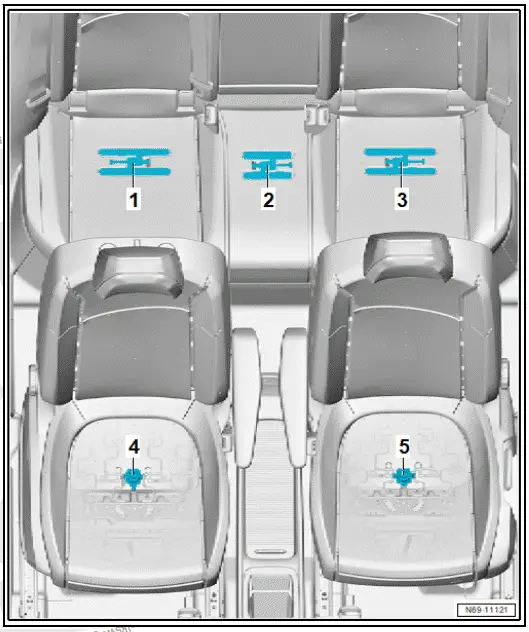

Assembly overview - seat occupied sensor

1. Rear seat occupied sensor

• Left-hand drive vehicles: rear seat occupied sensor on passenger side - G178-
• Right-hand drive vehicles: rear seat occupied sensor on driver side - G177-
• ⇒ Rep. gr. 69 ; Removing and installing rear seat occupied sensor [G177/ G178/G1010]

2. Rear seat occupied sensor, centre - G1010-

• ⇒ Rep. gr. 69 ; Removing and installing rear seat occupied sensor [G177/ G178/G1010]

3. Rear seat occupied sensor

• Left-hand drive vehicles: rear seat occupied sensor on driver side - G177-
• Right-hand drive vehicles: rear seat occupied sensor on passenger side - G178-
• ⇒ Rep. gr. 69 ; Removing and installing rear seat occupied sensor [G177/ G178/G1010]

4. Front seat occupied sensor

• Left-hand drive vehicles: seat occupied sensor on front passenger side - G128-
• Right-hand drive vehicles: seat occupied sensor on driver side - G1067-
• ⇒ Rep. gr. 69 ; Removing and installing front seat occupied sensor [G1067]/[G128]

5. Front seat occupied sensor

• Left-hand drive vehicles: seat occupied sensor on driver side - G1067-
• Right-hand drive vehicles: seat occupied sensor on front passenger side - G128-
• ⇒ Rep. gr. 69 ; Removing and installing front seat occupied sensor [G1067]/[G128]

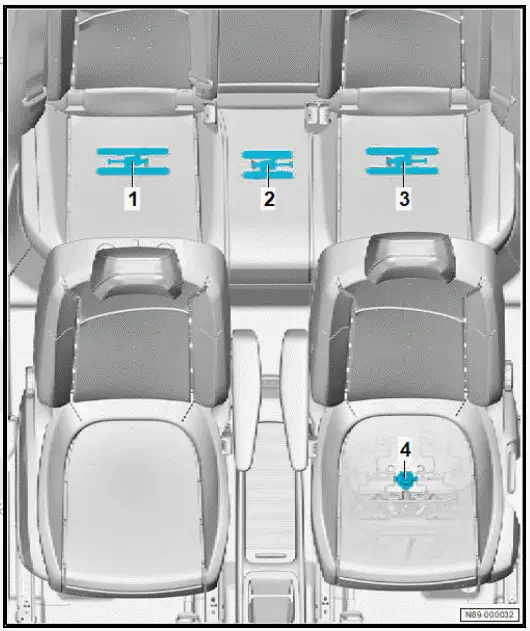

Assembly overview - seat occupied sensor, NAR

1. Rear seat occupied sensor

• Left-hand drive vehicles: rear seat occupied sensor on passenger side - G178-
• Right-hand drive vehicles: rear seat occupied sensor on driver side - G177-
• ⇒ Rep. gr. 69 ; Removing and installing rear seat occupied sensor [G177/ G178/G1010]

2. Rear seat occupied sensor, centre - G1010-

• ⇒ Rep. gr. 69 ; Removing and installing rear seat occupied sensor [G177/ G178/G1010]

3. Rear seat occupied sensor

• Left-hand drive vehicles: rear seat occupied sensor on driver side - G177-
• Right-hand drive vehicles: rear seat occupied sensor on passenger side - G178-
• ⇒ Rep. gr. 69 ; Removing and installing rear seat occupied sensor [G177/ G178/G1010]

4. Seat occupied sensor on driver side - G1067-

• ⇒ Rep. gr. 69 ; Removing and installing front seat occupied sensor [G1067]/[G128]

Removing and installing front seat occupied sensor [G1067]/[G128]

The seat occupied sensor on driver side - G1067- and seat occupied sensor on front passenger side - G128- will henceforth be referred to as "seat occupied sensor".

Removing

• Move front seat to rearmost and highest position.
• Disconnect electrical connector -2-.
• Unclip mounting -1- -arrows-.
• Detach seat occupied sensor -3-. To do this, push padding upwards slightly.

Installing

Install in reverse order of removal, observing the following:

• Connect electrical connector until it engages audibly.

Removing and installing rear seat occupied sensor [G177/G178/G1010]

Removing

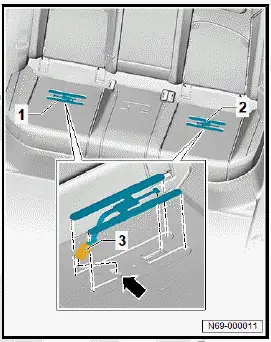

Removing rear seat occupied sensor [G177/G178]

The rear seat occupied sensor on driver side - G177- and rear seat occupied sensor on passenger side - G178- will henceforth be referred to as "rear seat occupied sensor".

• Remove cover and padding of rear bench seat ⇒ Rep.

  gr. 74 ; Removing and installing cover and padding of rear bench seat .

• Disconnect electrical connector -3-.
• Guide electrical wire through opening -arrow-.
• Remove rear seat occupied sensor -1- or -2-.

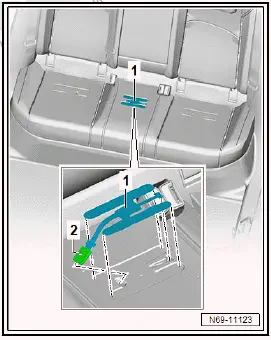

Removing rear seat occupied sensor [G1010]

• Remove cover and padding of rear bench seat ⇒ Rep.

  gr. 74 ; Removing and installing cover and padding of rear bench seat .

• Disconnect electrical connector -2-.
• Guide electrical wire through opening.
• Remove rear centre seat occupied sensor - G1010- -1-.

Installing

Install in reverse order of removal, observing the following:

• Make sure that identification plate of seat occupied sensor faces upwards in installed condition.
• Connect electrical connector until it engages audibly.
