Volkswagen ID.4: Side airbags

• Assembly overview  front side airbag, outer side
• Assembly overview - front side airbag, inner side
• Removing and installing front outer side airbag
• Removing and installing front inner side airbag

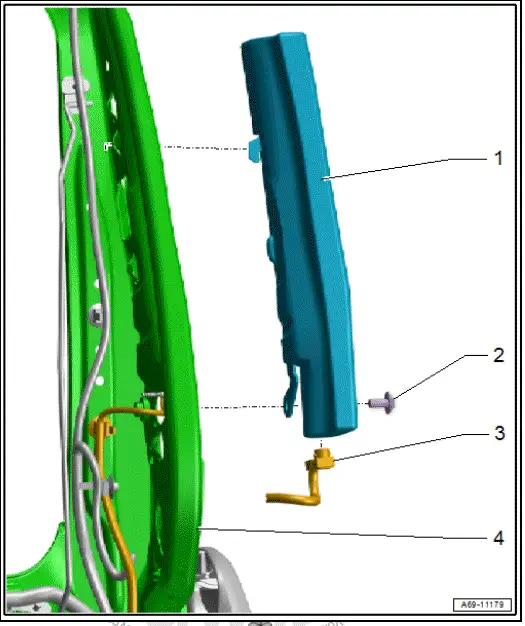

Assembly overview  front side airbag, outer side

The overview is shown for the left side of vehicle as an example.

1. Front side airbag

• With side airbag igniter on driver side - N199- or side airbag igniter on front passenger side - N200-
• ⇒ "8.3 Removing and installing front outer side airbag"

2. Bolt

• Renew after removing
• 8 Nm

3. Electrical connector
4. Front seat frame

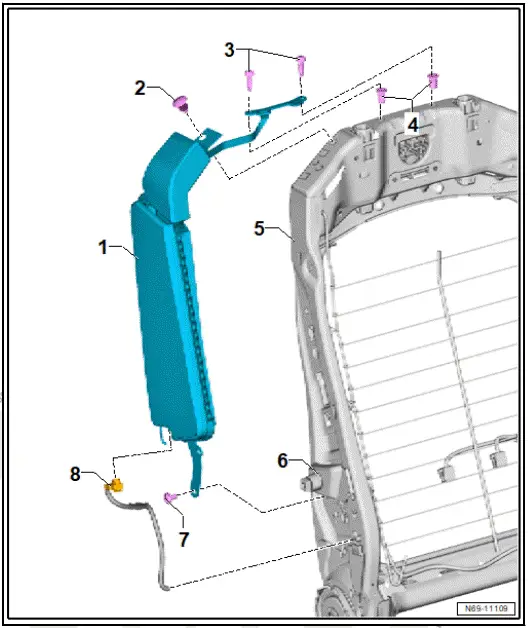

Assembly overview - front side airbag, inner side

Overview shows a left-hand drive vehicle as an example

1. Central airbag

• With igniter for central airbag for occupant collision protection, driver side - N737-
• Fitted on driver side
• ⇒ Rep. gr. 69 ; Removing and installing front side airbag, inner side

2. Clip

• If damaged, central airbag must be renewed.

3. Bolt

• Qty. 2
• 8 Nm

4. Pop rivet nut

• Qty. 2

5. Front seat frame
6. Armrest holder
7. Bolt

• Renew after removing
• 8 Nm

8. Electrical connector

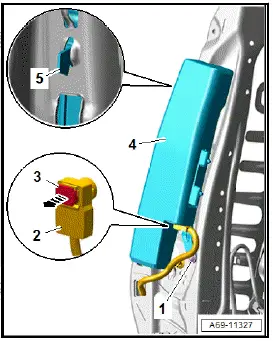

Removing and installing front outer side airbag

Side airbag with side airbag igniter on driver side - N199- or side airbag igniter on front passenger side - N200- are referred to hereafter as "side airbag".

Removal and installation are described for the left side of vehicle as an example.

Removing

• Disconnect battery earth cable ⇒ Electrical system; Rep.

  gr. 27 ; Battery; Disconnecting and connecting battery .

• Remove backrest padding in area of side airbag ⇒ Rep.

  gr. 74 ; Separating backrest cover from backrest padding .

CAUTION

It is possible to trigger pyrotechnic components unintentionally.

Risk of injury

• Discharge static electricity by briefly touching door striker plate.

• Release connector lock -3- in direction of -arrow-.
• Disconnect electrical connector -2-.
• Unscrew bolt -1-.
• Detach side airbag -4- from hook -5-, and remove it.

WARNING

Risk of injury due to unintended deployment of the airbag unit.

• Place the airbag unit with the airbag facing upwards.

• Place side airbag aside.

Installing

Install in reverse order of removal, observing the following:

CAUTION

It is possible to trigger pyrotechnic components unintentionally.

Risk of injury

• Discharge static electricity by briefly touching door striker plate.

• Connect electrical connector -1- in direction of -arrow A- until it engages audibly.
• Engage connector lock -2- in direction of -arrow B-.
• Make sure that electrical wire is not trapped.

• Connect battery earth cable ⇒ Electrical system; Rep.

  gr. 27 ; Battery; Disconnecting and connecting battery .

CAUTION

It is possible to trigger pyrotechnic components unintentionally.

Risk of injury.

• Stay as far back as possible from pyrotechnic components when switching on the ignition

• Switch on ignition.
• Read and clear event memory using ⇒ Vehicle diagnostic tester.

Tightening torques

• ⇒ "8.1 Assembly overview  front side airbag, outer side",

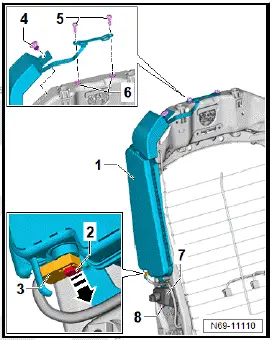

Removing and installing front inner side airbag

Special tools and workshop equipment required

• release tool - T10236-

Removing

Side airbag with igniter for central airbag for occupant collision protection, driver side - N737- will henceforth be referred to as "side airbag".

• Disconnect battery earth cable ⇒ Electrical system; Rep.

  gr. 27 ; Battery; Disconnecting and connecting battery .

• Remove cover and padding in area of backrest ⇒ Rep.

  gr. 74 ; Removing and installing backrest cover and padding .

CAUTION

It is possible to trigger pyrotechnic components unintentionally.

Risk of injury

• Discharge static electricity by briefly touching door striker plate.

• Release connector lock -2- in direction of -arrow-.
• Disconnect electrical connector -3-.
• Unscrew bolts -5-.

Important

• Removed bolts -5- must be coated with locking fluid. Locking fluid ⇒ Electronic parts catalogue (ETKA) .

• Remove clip -4- using release tool - T10236- .
• Unscrew bolt -8-.
• Guide side airbag -1- out of armrest holder -7-, and remove it.

WARNING

Risk of injury due to unintended deployment of the airbag unit.

• Place the airbag unit with the airbag facing upwards.

• Place side airbag aside

Installing

Install in reverse order of removal, observing the following:

CAUTION

It is possible to trigger pyrotechnic components unintentionally.

Risk of injury

• Discharge static electricity by briefly touching door striker plate.

• Connect electrical connector -1- in direction of -arrow A- until it engages audibly.
• Engage connector lock -2- in direction of -arrow B-.
• Make sure that electrical wire is not trapped.

• Connect battery earth cable ⇒ Electrical system; Rep.

  gr. 27 ; Battery; Disconnecting and connecting battery .

CAUTION

It is possible to trigger pyrotechnic components unintentionally.

Risk of injury.

• Stay as far back as possible from pyrotechnic components when switching on the ignition.

• Switch on ignition.
• Read and clear event memory using ⇒ Vehicle diagnostic tester.

Tightening torques
