Volkswagen ID.4: Technical data

Safety information and repair notes

Safety information

Observe safety information ⇒ Safety information and repair notes; Rep. gr. 00 ; Safety information .

Repair instructions

Observe repair instructions ⇒ Safety and repair instructions; Rep. gr. 00 ; Repair instructions

Electrical components

Access to diagnoses

• Renewing driver door control unit - J386- / front passenger door control unit - J387-
• 2 Renewing rear driver side door control unit - J926- / rear passenger side door control unit - J927-
• 3 Renewing roof system control unit - J1355-
• 4 Adapting roof system control unit - J1355-
• 5 Removing and installing windscreen
• 6 Renewing trailer detector control unit

1. Renewing driver door control unit - J386- / front passenger door control unit - J387-

• 0042/0052 - Driver door electronics, functions/Front passenger door electronics, functions
•  0042/0052 - Basic setting

2. Renewing rear driver side door control unit - J926- / rear passenger side door control unit - J927-

• 00BB/00BC - Rear driver side door electronics, functions/ Rear passenger side door electronics, functions
• 00BB/00BC - Basic setting

3. Renewing roof system control unit - J1355-

• 00CA - Sliding sunroof adjustment control unit, functions
•  00CA - Renew control unit

4. Adapting roof system control unit - J1355-

• 00CA - Sliding sunroof adjustment control unit, functions
• 00CA - Control unit, basic setting

5. Removing and installing windscreen Vehicles with control unit for head-up display - J898-

• ⇒ Electrical system; Rep. gr. 90 ; Dash panel insert; Calibrating control unit for head-up display [J898] Calibrating front camera for driver assist systems - R242-
• ⇒ Driver assist systems; Rep. gr. 98 ; Front camera for driver assist systems; Calibrating front camera for driver assist systems

6. Renewing trailer detector control unit

• 0069 - Trailer detector control unit, functions
• 0069 - Renew trailer detector control unit

Technical data

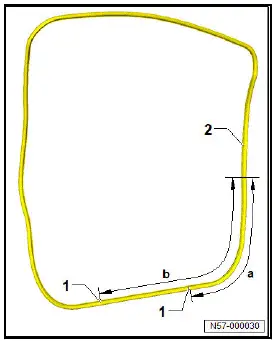

Dimensions of water drain holes in outer door seal

Rear door

1. Water drain hole of outer door seal -1-

• Dimension = 514 mm +-10 mm

2. Water drain hole of outer door seal -1-

• Dimension = 974 mm +-10 mm

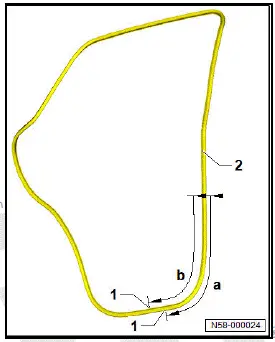

Rear door

1. Water drain hole of outer door seal -1-

• Dimension = 557 mm +-10 mm

2. Water drain hole of outer door seal -1-

• Dimension = 617 mm +-10 mm

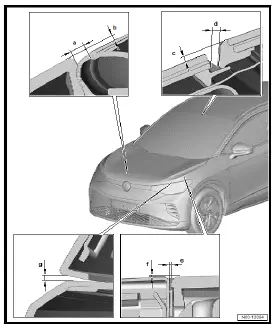

Gaps - front

Gaps/shut lines refer to specified areas.

1. Gap between bonnet and bumper

• Gap = 3.7 mm +- 0.7 mm

2. Height difference, bonnet to bumper

• Gap = 1.2 mm + 0.6 mm

3. Height difference, windscreen to roof

• Gap = 2.1 mm +- 0.8 mm

4. Gap between windscreen and roof

• Gap = 3.3 mm +- 0.5 mm

5. Gap between wing and bumper

• Gap = 0.5 mm + 0.5 mm

6. Height difference, wing to bumper

• Gap = 0.0 mm +- 0.5 mm

7. Gap between headlight and bumper

• Gap = 1.9 mm +- 0.5 mm

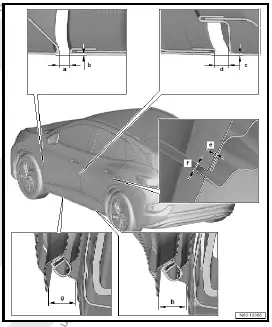

Gaps - centre

Gaps/shut lines refer to specified areas.

1. Gap between wing and front door

• Gap = 3.5 mm +- 0.5 mm

2. Height difference, wing to front door

• Gap = 0.0 mm +- 0.1 mm

3. Height difference, front door to rear door

• Gap = 0.0 mm +- 0.5 mm

4. Gap between front door and rear door

• Gap = 4.4 mm +- 0.5 mm

5. Height difference, rear door to side panel

• Gap = 0.0 mm +- 0.5 mm

6. Gap between rear door and side panel

• Gap = 3.5 mm +- 0.5 mm

7. Gap between front door and side member

• Gap = 7.3 mm +- 1.0 mm

8. Gap between rear door and side member

• Gap = 7.5 mm +- 1.0 mm

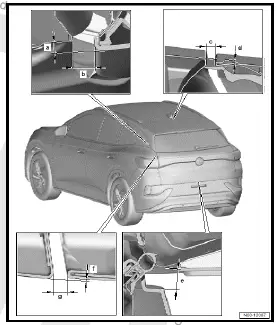

Gaps - rear

Gaps/shut lines refer to specified areas.

1. Height difference, C-pillar to rear spoiler

• Gap = -1.6 mm +- 0.8 mm

2. Gap between C-pillar and rear spoiler

• Gap = 6.1 mm +- 0.8 mm

3. Gap between roof and rear lid

• Gap = 5.0 mm +- 0.5 mm

4. Height difference, roof to rear lid

• Gap = -1.2 mm +- 0.8 mm

5. Gap between bumper and rear lid

• Gap = 13.5 mm

6. Height difference, side panel and rear lid

• Gap = -1.0 mm +- 0.5 mm

7. Gap between side panel and rear lid

• Gap = 4.0 mm +- 0.5 mm

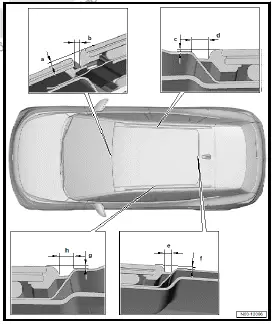

Gaps - roof

Gaps/shut lines refer to specified areas.

1. Height difference, windscreen to glass panel

• Gap = 2.1 mm +- 0.8 mm

2. Gap between windscreen and glass panel

• Gap = 3.3 mm +- 0.5 mm

3. Height difference, roof to glass panel

• Gap = 0.4 mm

4. Gap between roof and glass panel

• Gap = 4.8 mm

5. Gap between roof and glass panel

• Gap = 4.8 mm

6. Height difference, roof to glass panel

• Gap = 0.8 mm +- 1.0 mm

7. Height difference, roof to glass panel

• Gap = 0.4 mm

8. Gap between roof and glass panel

• Gap = 4.8 mm
