Volkswagen ID.4: Vehicle level sender

• Exploded view - front vehicle level senders
• Assembly overview - rear vehicle level senders
• Removing and installing front vehicle level senders [G78]/[G289]
• Removing and installing rear vehicle level senders [G76]/[G77]

Exploded view - front vehicle level senders

The exploded view here applies to the left side of the vehicle.

1. Front left vehicle level sender - G78- / front right vehicle level sender - G289-

• ⇒ Rep. gr. 43 ; Removing and installing front vehicle level senders G78/G289

2. Nut

• 2x
• 8 Nm

3. Wire retainer
4. Suspension link

• ⇒ Rep. gr. 40 ; Exploded view - suspension links, swivel joint
• ⇒ Rep. gr. 40 ; Removing and installing suspension link

5. Guide

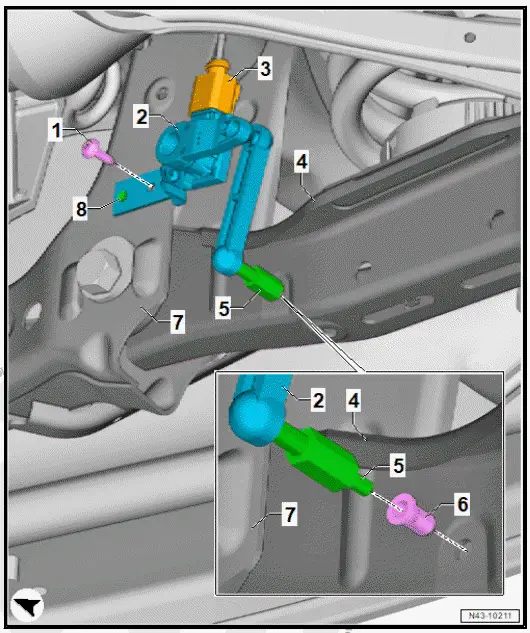

Assembly overview - rear vehicle level senders

Overview shown for left side of vehicle as an example

1. Bolt

• 5 Nm

2. Rear left vehicle level sender - G76-

• ⇒ Rep. gr. 43 ; Removing and installing rear vehicle level senders [G76]/[G77]

3.  Electrical connector
4.  Spring control arm

• ⇒ Rep. gr. 42 ; Assembly overview - spring control arm
• ⇒ Rep. gr. 42 ; Removing and installing spring control arm

5. Stud

• 3.5 Nm

6. Pop rivet nut
7. Subframe

• ⇒ Rep. gr. 42 ; Assembly overview - subframe
• ⇒ Rep. gr. 42 ; Fixing subframe in position
• ⇒ Rep. gr. 42 ; Taking up weight of subframe using scissor-type assembly platform
• ⇒ Rep. gr. 42 ; Removing and installing rear axle

8. Locating device

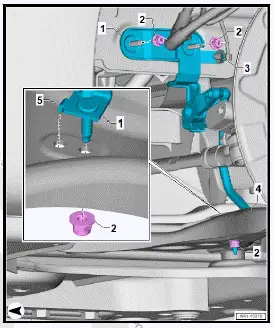

Removing and installing front vehicle level senders [G78]/[G289]

Removing

Front left vehicle level sender - G78- and front right vehicle level sender - G289- will henceforth be referred to as "front vehicle level sender".

Removal and installation are described for the left side of vehicle as an example.

• Remove front body acceleration sender ⇒ Rep. gr. 43 ; Removing and installing front body acceleration senders [G341]/[G342] .
• Remove stone deflector for suspension link ⇒ Rep. gr. 40 ; Removing and installing stone deflector for suspension link .
• Disconnect electrical connector -2-.

• Unscrew nuts -2-.
• Unclip wiring harness -3- from bracket -1-.
• Remove bracket -1- with front vehicle level sender.

Installing

Install in reverse order of removal, observing the following:

The lever of the front vehicle level sender -1- must point towards the outer side of the vehicle.

• Insert guide -5- of front vehicle level sender -1- into inner hole of suspension link -4-.
• Insert threaded end of front vehicle level sender -1- into outer hole of suspension link -4-.

• Carry out required function/functions using ⇒ Vehicle diagnostic tester ⇒ Rep. gr. 00 ; Access to diagnoses .

Tightening torques

• ⇒ Rep. gr. 43 ; Assembly overview - front vehicle level senders
•  ⇒ Rep. gr. 43 ; Assembly overview - electronically controlled damping

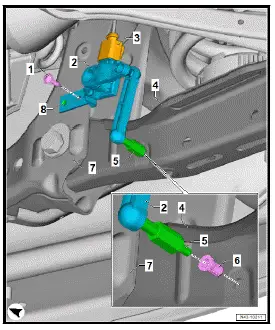

Removing and installing rear vehicle level senders [G76]/[G77]

Removing

Rear left vehicle level sender - G76- will henceforth be referred to as "rear vehicle level sender".

Removal and installation are described for the left side of vehicle as an example.

• Remove stone deflector for spring control arm ⇒ Rep.

  gr. 42 ; Removing and installing stone deflector for spring control arm .

• Disconnect electrical connector -3-.
• Unscrew bolt -1-.
• Unscrew stud -5- from spring control arm -4-.
• Remove rear vehicle level sender -2-.

Installing

Install in reverse order of removal, observing the following:

The lever of rear vehicle level sender must point to outer side of vehicle.

• Insert rear vehicle level sender -2- into guide -8- on subframe -7-.

• Carry out required function/functions using ⇒ Vehicle diagnostic tester ⇒ Rep. gr. 00 ; Access to diagnoses .

Tightening torques

• ⇒ Rep. gr. 43 ; Assembly overview - rear vehicle level senders
• ⇒ Rep. gr. 42 ; Assembly overview - spring control arm
