Volkswagen ID.4: Accelerator pedal

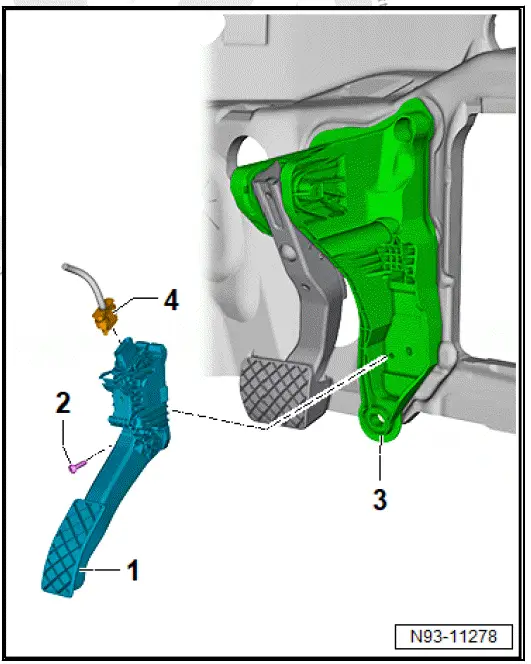

 Assembly overview - accelerator module

1. Accelerator pedal module - GX2-

• ⇒ Rep. gr. 93 ; Removing and installing accelerator pedal module [GX2]

2. Bolt

• 3.5 Nm

3. Mounting bracket
4. Electrical connector

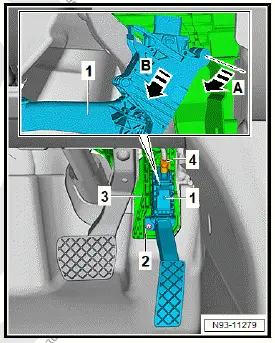

Removing and installing accelerator pedal module [GX2]

Removing

• Disconnect electrical connector -4-.
• Unscrew bolt -2-.
• Swing accelerator pedal module - GX2- -1- in direction of -arrow A-, and remove it from mounting -3- in direction of -arrow B-.

Installing

Install in reverse order of removal, observing the following:

Tightening torques

• ⇒ Rep. gr. 93 ; Assembly overview - accelerator module
