Volkswagen ID.4: Attaching a rear carrier system or bicycle rack to the ball mount

Rear carrier systems on the Volkswagen ID.4 include accessories such as bicycle racks or cargo storage boxes that are mounted directly onto the trailer hitch ball mount. These systems provide a practical solution for transporting additional equipment while maintaining interior space.

Only use rear carrier systems that are specifically approved for the Volkswagen ID.4 model, model year, and equipment configuration by the manufacturer → .

Volkswagen recommends using genuine Volkswagen accessories or certified components available from authorized Volkswagen dealers or service facilities, as these ensure proper compatibility and safety.

Always install the rear carrier system on the Volkswagen ID.4 in accordance with the manufacturer’s installation instructions to guarantee secure attachment and optimal performance.

Maximum load of the rear carrier system

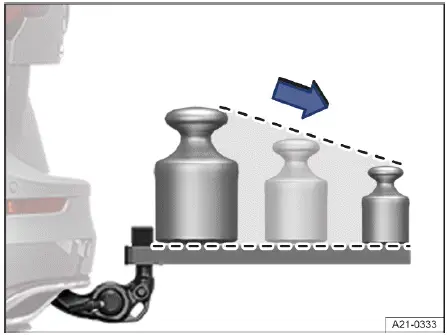

Fig. 1 Recommended weight distribution on the rear carrier system.

The total carrying load consists of both the weight of the rear carrier system itself and the cargo or bicycles placed on it.

The maximum permissible load for a rear carrier system attached to the Volkswagen ID.4 may differ from the specified trailer tongue weight rating of the vehicle.

However, the maximum allowable drawbar load of the trailer hitch must never be exceeded under any circumstances.

Due to leverage effects, the effective load increases the further the center of gravity of the carrier system extends away from the ball mount.

For optimal stability, always position heavier items as close as possible to the ball mount → fig. 1.

Vehicle-specific maximum carrying load

To determine the correct carrying capacity for your Volkswagen ID.4, refer to the vehicle’s trailer tongue weight specification.

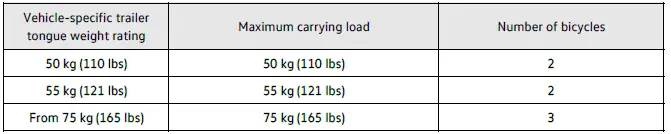

Based on this value, the allowable load for the rear carrier system can be determined using the reference table. In accordance with UN-R 55 regulations, Volkswagen recommends adhering to the specified number of bicycles permitted on the carrier system.

Maximum overhang of the rear carrier system

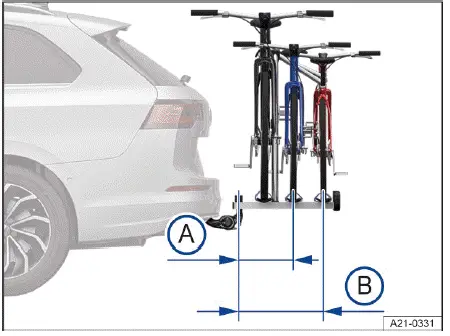

Fig. 2 General example of the maximum overhang on one bicycle rack for two or three bicycles.

1. For a carrying load up to 55 kg (121 lbs): 500 mm (approx. 19.7 inches).
2. For a carrying load of 75 kg (165 lbs): 700 mm (approx. 27.6 inches).

For bicycle racks carrying two bicycles, the maximum overhang from the center of the ball mount to the center of the outermost rack must not exceed 500 mm (approx. 19.7 inches) → fig. 2 A.

For systems designed to carry three bicycles, the maximum overhang must not exceed 700 mm (approx. 27.6 inches) → fig. 2 B.

WARNING

Incorrect use of a rear carrier system on the Volkswagen ID.4 ball mount can lead to accidents, serious injuries, or even fatal consequences.

• Ensure that the rear carrier system is approved and suitable for the Volkswagen ID.4.
• Always carefully follow the installation and safety instructions provided by the manufacturer.
• Never mount a rear carrier system below the coupling ball, as it may slip due to the shape of the ball mount.

The Volkswagen ID.4 is engineered to support modern transport solutions such as bicycle racks and cargo carriers, but correct installation, proper load distribution, and adherence to safety limits are essential for safe driving.

Volkswagen recommends removing all unnecessary attachments from items placed on the rear carrier system of the Volkswagen ID.4 before starting your journey. This includes accessories such as bicycle baskets, panniers, child seats, and removable batteries.

Reducing excess components helps improve aerodynamic efficiency and lowers the center of gravity of the rear carrier system, which enhances driving stability and safety when using the Volkswagen ID.4.

Introduction

Depending on the equipment and configuration, the Volkswagen ID.4 may be designed to support the installation of a roof rack system.

With an approved roof rack installed, the Volkswagen ID.4 allows for the transportation of bulky or oversized items such as luggage, sports equipment, or outdoor gear on the roof.

If you are unsure whether your specific Volkswagen ID.4 model is approved for roof rack installation, consult an authorized Volkswagen dealer or service facility. Volkswagen recommends seeking professional advice to ensure compatibility and safety.

Only use roof rack systems that are officially approved by Volkswagen for the Volkswagen ID.4 to guarantee proper fitment and safe operation.

Never install or retrofit a roof rack on the Volkswagen ID.4 if it is not explicitly approved for your vehicle configuration.

WARNING

Transporting large, heavy, long, or flat objects on a roof rack affects the driving dynamics of the Volkswagen ID.4 by raising the center of gravity and increasing aerodynamic drag. This can lead to reduced stability and an increased risk of accidents, including serious or fatal injuries.

• Always secure cargo using appropriate and undamaged securing equipment such as straps or tensioning belts.
• Avoid sudden steering inputs, harsh braking, or abrupt acceleration.
• Continuously adapt your speed and driving style to road, weather, and traffic conditions.

WARNING

Using an unapproved or incompatible roof rack on the Volkswagen ID.4 can result in the rack detaching while driving, potentially causing severe accidents and life-threatening injuries.

• Only install roof racks that are specifically approved for the Volkswagen ID.4.
• Do not install any roof rack system that is not designed for your vehicle.

NOTICE

Installing a roof rack on a vehicle that is not designed or approved for such equipment may cause serious structural damage.

• Never fit a roof rack to the Volkswagen ID.4 unless it is officially approved for use.

Driving the Volkswagen ID.4 with a roof rack installed increases aerodynamic resistance, which in turn raises energy consumption of the electric drivetrain. As a result, the overall driving range of the Volkswagen ID.4 can be significantly reduced. This effect applies to both the roof rack itself and any items transported on it, such as bicycles, skis, or cargo boxes.

For optimal efficiency and maximum range in the Volkswagen ID.4, it is recommended to remove the roof rack when it is not in use.
