Volkswagen ID.4: Dimensions and mounting points for retrofitting a trailer hitch

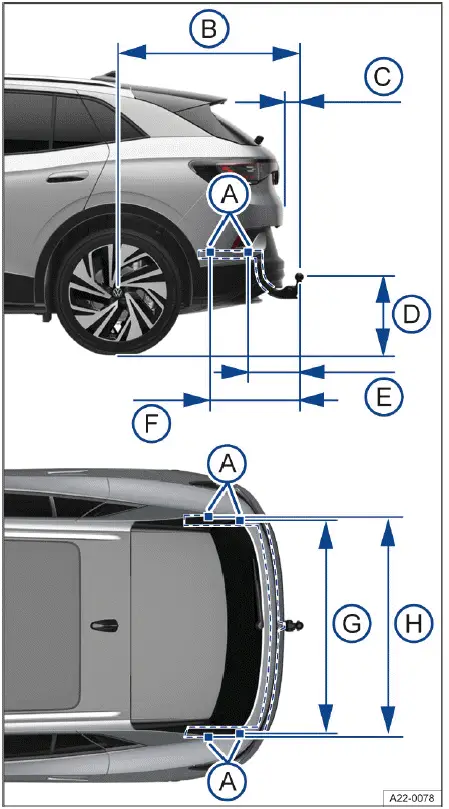

Fig. 1 Dimensions and mounting points for retrofitting a trailer hitch.

When retrofitting a trailer hitch on the Volkswagen ID.4, it is essential to strictly follow the specified dimensions shown in → fig. 1. These measurements ensure proper alignment, safe towing performance, and compliance with technical standards.

The minimum specified dimension from the center of the ball mount to the road surface (dimension D) must neither be exceeded nor fall below the required value. This requirement also applies when the Volkswagen ID.4 is fully loaded, including the maximum permissible tongue weight.

1. Mounting points.
2. 1045 mm (approx. 41.1 in)
3. Min. 65 mm (approx. 2.6 in)
4. 350 to 420 mm (approx. 13.8 to 16.5 in)
5. 357 mm (approx. 14 in)
6. 577 mm (approx. 22.7 in)
7. 994 mm (approx. 39.1 in)
8. 998 mm (approx. 39.3 in)

For optimal safety and correct installation, Volkswagen strongly recommends that the trailer hitch on the Volkswagen ID.4 be retrofitted by an authorized Volkswagen dealer or qualified service facility. In some cases, additional modifications—such as adjustments to the cooling system or installation of protective heat shields—may be required.

Always install the trailer hitch in accordance with the manufacturer’s installation instructions.

A permanently mounted trailer hitch must not obstruct the rear lighting system or cover any official labels on the Volkswagen ID.4.

Always observe country-specific regulations regarding trailer hitch installation and use.

Depending on regional legal and technical requirements, certain Volkswagen ID.4 models may not be approved for towing. In such cases, retrofitting a trailer hitch is not permitted.

If you are unsure about compatibility or installation requirements, consult qualified specialists. Volkswagen recommends contacting an authorized Volkswagen dealer or service center for expert guidance.

WARNING

Incorrectly connected electrical wiring can cause malfunctions in the Volkswagen ID.4 electrical system, potentially leading to accidents, serious injuries, or death.

• Never connect the trailer’s electrical system directly to taillight connectors or unsuitable power sources.
• Use only approved connectors and wiring systems designed for the Volkswagen ID.4.
• Always have electrical installation work carried out by qualified professionals or authorized Volkswagen service facilities.

WARNING

Improper installation or the use of an unsuitable trailer hitch may result in the trailer detaching during operation, causing severe accidents and potentially fatal injuries.

• All work related to trailer hitch installation on the Volkswagen ID.4 must be performed by authorized specialists.

Only use trailer hitches specifically approved for the Volkswagen ID.4 model, model year, and equipment configuration by the manufacturer.

Volkswagen recommends using genuine Volkswagen parts or approved accessories, which are available from authorized Volkswagen dealers and service facilities. These components are designed to ensure perfect compatibility and long-term reliability.

Troubleshooting

Ball mount of the trailer hitch not secured

If the yellow indicator light illuminates, this indicates that the ball mount on the Volkswagen ID.4 is not properly locked.

1. Do not use the trailer hitch. Inspect the locking mechanism of the ball mount (→ Electric ball mount).

2. If the issue persists, contact an authorized Volkswagen dealer or service facility immediately for inspection and repair.

Volkswagen recommends having any faults diagnosed and resolved only by qualified professionals to ensure safe operation of the Volkswagen ID.4 towing system.

The Volkswagen ID.4 is engineered with precise mounting specifications to guarantee safe and efficient towing, making professional installation and correct setup essential for long-term reliability and safety.
