Volkswagen ID.4: Battery tray

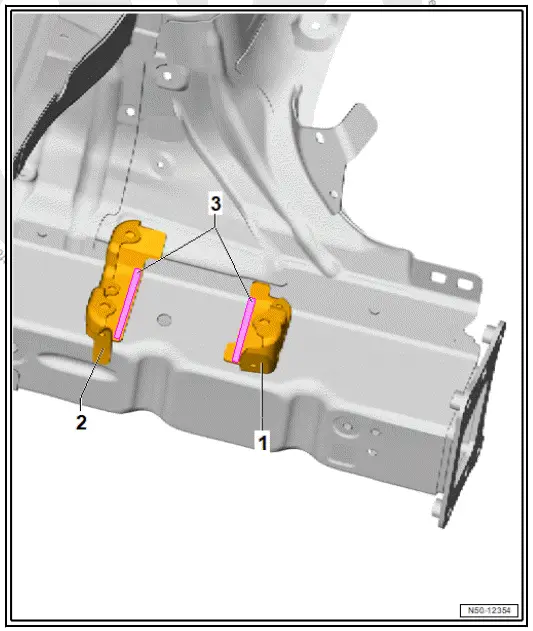

Assembly overview - battery tray

1. Front battery tray
2. Rear battery tray
3. Bonded areas

• Cannot be restored

Renewing battery tray

WARNING

Gases/vapours hazardous to health are generated when welding, soldering or cutting using tools which produce sparks in foam-treated areas.

• Do not weld, solder or cut closer than 15 mm to moulded foam inserts.
• Use an extraction system during work.

Observe safety information ⇒ Rep. gr. 00; Safety information Only tools and workshop equipment authorised by Volkswagen AG may be used ⇒ 2.1

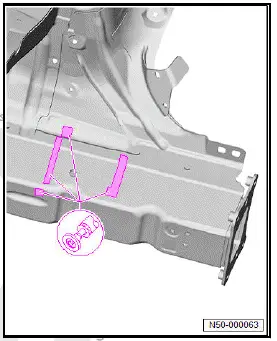

Removing

• Separate original joint.

• Remove front battery tray -1-.
• Remove rear battery tray -2-.
• Remove remaining material.

• Completely remove remaining adhesive.
• Grind welding surfaces back to bare metal and clean.

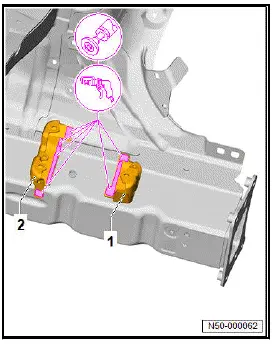

Installing

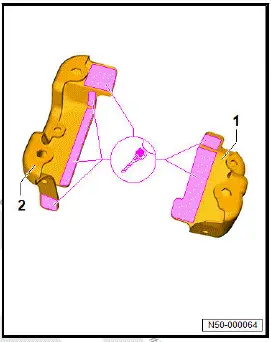

• Drill holes (8 mm diameter) for SG plug weld seam in new part -1- and -2-.

• Adjust new part -1- and -2- to fit and fix in position.

• Check fit with add-on parts.

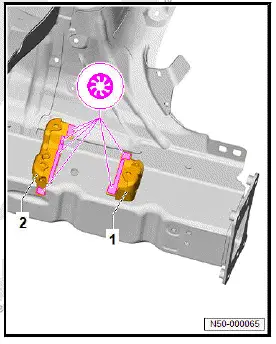

• Weld in new part -1- and -2-, SG plug weld seam.
