Volkswagen ID.4: Cavity sealing
Volkswagen ID.4 (E21) 2021-2026 Service Manual / Vehicle-specific paint information / Cavity sealing
Cavity sealing, body - overview
The marked areas have been treated with cavity sealant and must be resealed following repairs.
Cavity sealing, front body
The overview is shown for the left side of vehicle as an example.

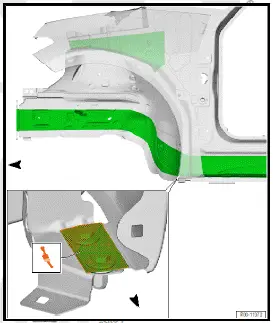

Front wheel housing
The marked areas have been treated with cavity sealant and must be resealed following repairs.
Brush on cavity sealant in area of bracket and wing; spray wax may be used alternatively.
Cavity sealant/spray wax in the marked area must be brushed following application.
Cavity sealing, rear body
The overview is shown for the left side of vehicle as an example.
Rear wheel housing
The marked areas have been treated with cavity sealant and must be resealed following repairs.
Cavity sealing, doors
The overview is shown for the left side of vehicle as an example.

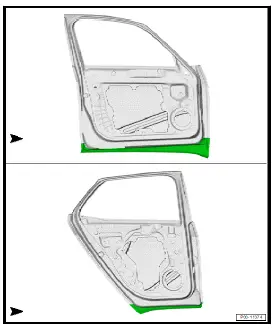

Front and rear door
The marked areas have been treated with cavity sealant and must be resealed following repairs.
Paintwork repair
Paintwork repair, radar sensor cover
The radar sensor cover -1- must not be painted or covered with adhesive film and must be ordered using the respective colour code ⇒ Electronic parts catalogue (ETKA).
Volkswagen ID.4 (E21) 2021-2026 Service Manual
