Volkswagen ID.4: Underseal

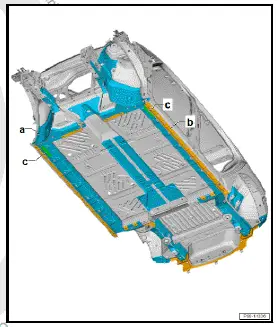

Underseal, body - overview

Important

• When performing repair work, the underseal should be restored to match the original appearance and layer thickness.
• Water drainage holes must remain clear.
• All threaded studs and welded nuts with metric threads as well as all other studs and contact surfaces must be functional following the application of the underseal.

1. Underseal thickness = 0.3 mm
2. Underseal thickness = 0.5 mm
3. Underseal thickness = 0.8 mm

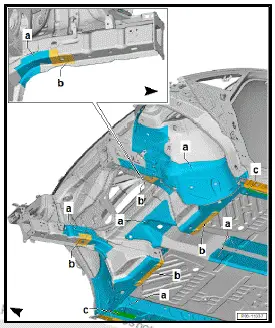

Underseal, front body

Important

• When performing repair work, the underseal should be restored to match the original appearance and layer thickness.
• Water drainage holes must remain clear.
• All threaded studs and welded nuts with metric threads as well as all other studs and contact surfaces must be functional following the application of the underseal.

1. Underseal thickness = 0.3 mm
2. Underseal thickness = 0.5 mm
3. Underseal thickness = 0.8 mm

Underseal, centre body

Important

• When performing repair work, the underseal should be restored to match the original appearance and layer thickness.
• Water drainage holes must remain clear.
• All threaded studs and welded nuts with metric threads as well as all other studs and contact surfaces must be functional following the application of the underseal.

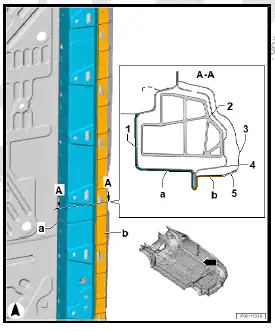

Side member, front

1. Underseal thickness = 0.3 mm
2. Underseal thickness = 0.5 mm,1)

1. Inner side member
2. Aluminium side member reinforcement insert
3. Side panel, exterior
4. Reinforcement of web plate for side member
5. Underseal

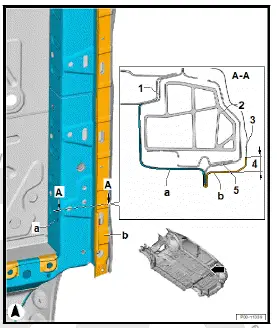

Side member, rear

1. Underseal thickness = 0.3 mm
2. Underseal thickness = 0.5 mm

1. Corner reinforcing
2. Aluminium side member reinforcement insert
3. Side panel, exterior
4. Dimension = 45 mm2)
5. Rear web plate

1) Surface coating can also be produced via flat stream application.

2) Surface coating can also be produced via flat stream application.

Underseal, rear body

Important

• When performing repair work, the underseal should be restored to match the original appearance and layer thickness.
• Water drainage holes must remain clear.
• All threaded studs and welded nuts with metric threads as well as all other studs and contact surfaces must be functional following the application of the underseal.

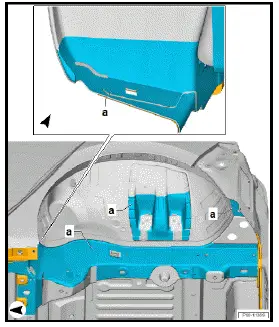

Wheel housing

The overview is shown for the left side of vehicle as an example.

1. Underseal thickness = 0.3 mm

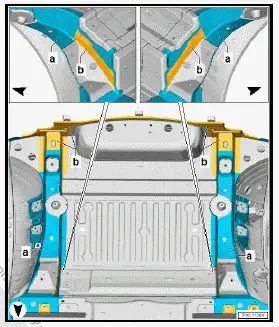

Underbody, rear

1. Underseal thickness = 0.3 mm
2. Underseal thickness = 0.5 mm
