Volkswagen ID.4: Changing a wheel

Removing a wheel

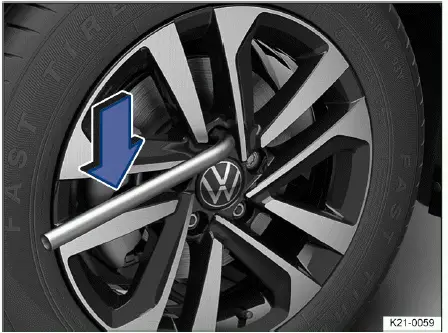

Fig. 1 Wheel change: removing wheel bolts with the lug wrench.

When performing a wheel change on the Volkswagen ID.4, follow all safety instructions carefully to ensure a smooth and secure process.

1. Follow the recommended preparation checklist for the Volkswagen ID.4 (→ Wheel change).

2. Loosen the wheel bolts slightly before lifting the vehicle (→ Wheel bolts).

3. Raise the Volkswagen ID.4 using the approved vehicle jack (→ Vehicle jack).

4. Fully remove the loosened wheel bolts using the lug wrench → fig. 1 and place them on a clean, stable surface to avoid contamination.

5. Carefully remove the wheel from the hub.

Two-piece wheel bolts

The Volkswagen ID.4 is equipped with two-piece wheel bolts, where the bolt and head are loosely connected to ensure proper seating.

Never substitute these with single-piece wheel bolts. If there is any uncertainty about the correct type, consult an authorized Volkswagen dealer or authorized Volkswagen Service Facility. Volkswagen strongly recommends using only approved components for safety and compatibility.

Installing a spare wheel or compact spare wheel

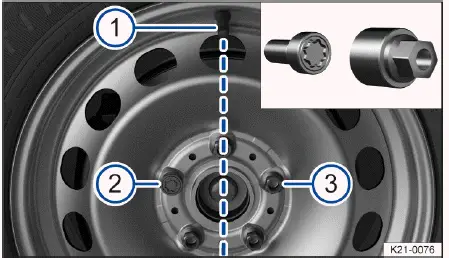

Fig. 2 Changing a tire: tire valve 1 and locations of the anti-theft wheel bolt 2 or 3.

1. Check the direction of rotation of the tire before installation (→ Tire labeling and tire classifications).

2. Carefully position the replacement wheel onto the hub of the Volkswagen ID.4.

3. Install the anti-theft wheel bolt using the adapter and tighten it lightly in a clockwise direction.

On wheels equipped with full covers, ensure the anti-theft bolt is installed in the correct position → fig. 2 -2- or -3-, relative to the tire valve 1. Incorrect positioning may prevent proper installation of the wheel cover.

4. Insert the remaining wheel bolts and tighten them slightly in a clockwise direction.

5. Lower the Volkswagen ID.4 carefully using the vehicle jack.

6. Tighten all wheel bolts securely using the lug wrench → . Always tighten in a crisscross pattern rather than sequentially around the wheel to ensure even pressure distribution.

7. Reinstall the wheel caps or hubcap (→ Wheel covers) (→ Hubcap) (→ Wheel bolt caps).

After a wheel change

1. Clean the vehicle tool kit and store it properly in its designated foam holder in the luggage compartment of the Volkswagen ID.4.

2. Securely store the removed wheel in the luggage compartment to prevent movement during driving.

3. Have the tightening torque of the wheel bolts checked as soon as possible by an authorized Volkswagen dealer or authorized Volkswagen Service Facility. Volkswagen recommends professional verification for optimal safety.

4. Replace any damaged tires promptly to maintain safe driving conditions and optimal performance of the Volkswagen ID.4.

Wheel bolt tightening specification

The correct tightening torque for wheel bolts on the Volkswagen ID.4, whether using steel or aluminum alloy rims, is:

- 120 Nm (88 ft-lbs).

Wheel bolts that are corroded, difficult to turn, or damaged must be replaced. Additionally, ensure that the threads in the wheel hub are clean before torque verification.

Never apply grease or oil to the wheel bolts or hub threads, as this may affect tightening accuracy and lead to loosening during operation.

Always use a calibrated torque wrench to check the tightening torque immediately after changing a wheel.

WARNING

If the wheel bolts on the Volkswagen ID.4 are not tightened to the specified torque, they may loosen while driving. Over-tightening can also damage the bolts and threads.

Incorrectly secured wheel bolts can result in loss of vehicle control, leading to serious accidents or fatal injuries.

• Always tighten wheel bolts to the specified torque value.
• If a torque wrench is unavailable, tighten using a lug wrench and have the torque checked as soon as possible by qualified professionals.
• Never drive with missing or loose wheel bolts.
• Only use wheel bolts that are specifically designed for the Volkswagen ID.4 and the installed rims.
• Never lubricate wheel bolts or hub threads, as this can cause them to loosen.
• Ensure all threads are clean, dry, and free of contaminants.
• Do not loosen bolts on rims equipped with a bolted rim ring.

WARNING

Using incorrect wheel bolts may cause them to loosen during driving, increasing the risk of accidents and serious injuries.

• Always use the correct wheel bolts for the specific rim and Volkswagen ID.4 model.
• Never mix different types of wheel bolts.
• Vehicles equipped with two-piece wheel bolts must only use two-piece bolts.

Proper wheel replacement procedures help maintain the safety, stability, and long-term reliability of your Volkswagen ID.4, especially during emergency roadside situations.

The Tire Pressure Monitoring System (TPMS) indicator in the Volkswagen ID.4 may illuminate after a wheel has been replaced, indicating that the system requires recalibration or that a temporary malfunction has been detected (→ Tire Pressure Monitoring System).

Introduction

The tire mobility set supplied with the Volkswagen ID.4 provides a practical and temporary solution for sealing minor tire damage caused by punctures or foreign objects up to approximately 4 mm in diameter. It is important not to remove objects such as screws or nails from the tire, as they may help limit air loss until the sealant is applied.

After the sealant has been injected into the tire, the Volkswagen ID.4 should be driven for approximately 10 minutes to allow the sealant to distribute evenly. Afterward, the tire pressure must be checked and adjusted if necessary to ensure safe driving conditions.

If more than one tire on the Volkswagen ID.4 is damaged, do not attempt to use the tire mobility set. Instead, contact an authorized Volkswagen dealer or authorized Volkswagen Service Facility, as the system is designed to repair only a single tire.

Only use the tire mobility set when the Volkswagen ID.4 is safely parked and you are confident in performing the procedure and following all required safety precautions. If unsure, professional assistance is strongly recommended.

Do not use the tire sealant:

• When the wheel rim on the Volkswagen ID.4 is damaged.
• At ambient temperatures below -20 ºC (-4 ºF).
• If the tire damage exceeds 4 mm in size.
• If the vehicle has been driven with extremely low tire pressure or a completely flat tire.
• If the tire sealant has expired.
• If the foreign object has already been removed from the tire.
• When using AirStop tires (identified by the marking "Seal" on the tire sidewall).

WARNING

Using the tire mobility set at the roadside with the Volkswagen ID.4 can be hazardous.

If proper safety precautions are not followed, serious accidents or fatal injuries may occur.

• Only use the tire mobility set if you are familiar with the procedure. Otherwise, seek professional assistance from an authorized Volkswagen dealer or authorized Volkswagen Service Facility.
• Stop the Volkswagen ID.4 immediately when it is safe to do so.
• Park the vehicle at a safe distance from traffic (→ In case of an emergency) (→ Parking).
• Ensure the vehicle is positioned on firm, level ground.
• Keep all passengers, especially children, away from the working area.
• Activate the hazard warning lights and place a warning triangle to alert other road users.
• Never lift the Volkswagen ID.4 with a jack when using the tire mobility set.

WARNING

A tire repaired using sealant will not perform the same as an undamaged tire.

Excessive stress on a repaired tire may result in tire failure, accidents, and serious injuries.

• Do not exceed 80 km/h (50 mph) when driving with a repaired tire on the Volkswagen ID.4.
• Avoid sudden acceleration, heavy braking, and sharp cornering.
• Drive no more than 10 minutes at reduced speed, then check the tire pressure again.
• Replace the repaired tire as soon as possible. The tire mobility set is intended only for emergency use to reach the nearest service facility.

CAUTION

The sealing compound may cause skin irritation or harm upon contact.

• If sealant comes into contact with skin, clean it immediately using a cloth or suitable material.
• Keep the tire mobility set out of reach of children.

Dispose of used or expired sealant from the Volkswagen ID.4 in accordance with local environmental regulations.

A replacement tire inflation bottle for the Volkswagen ID.4 can be obtained from an authorized Volkswagen dealer or authorized Volkswagen Service Facility.

Always read and follow the detailed operating instructions provided by the tire mobility set manufacturer before use.

Proper use of the tire mobility set ensures that your Volkswagen ID.4 remains mobile in emergency situations while maintaining a high level of safety until a permanent repair can be carried out.
