Volkswagen ID.4: Raising the vehicle with the vehicle jack

Lift points

Fig. 1 Mounting points for the vehicle jack.

The vehicle jack for the Volkswagen ID.4 must only be positioned at designated reinforced lift points on the underbody, located behind specific markings → fig. 1. Always choose the lift point closest to the wheel being replaced → .

Positioning the vehicle jack

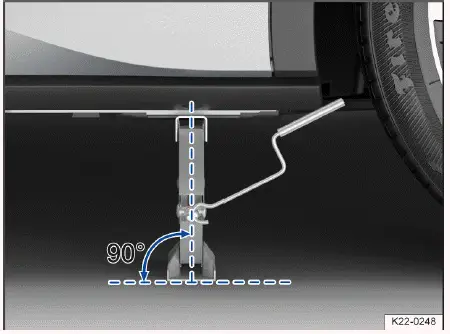

Fig. 2 Correct jack setup.

Fig. 3 Jack is positioned on the left side of the vehicle at the rear.

Checklist

For maximum safety when lifting the Volkswagen ID.4, follow the steps below in the correct sequence → :

1. Insert the hand crank into the jack mount.

2. Locate the correct lift point under the Volkswagen ID.4 nearest to the wheel being replaced → fig. 1.

3. Raise the jack slightly so it is positioned just below the lift point.

4. Ensure the jack base sits firmly and evenly on the ground, directly beneath the lift point → fig. 2 and → fig. 3.

5. Align the jack vertically and continue raising it until the support head engages securely with the vehicle’s lift point.

6. Continue lifting the Volkswagen ID.4 until the wheel is fully clear of the ground.

WARNING

Failure to follow this checklist when lifting the Volkswagen ID.4 may result in serious accidents or injuries.

• Always follow each step carefully and in order.
• Observe all general safety precautions when working with the jack.

WARNING

Incorrect use of the vehicle jack can cause the Volkswagen ID.4 to slip or fall, resulting in serious or fatal injuries.

• Never raise the vehicle if more than one tire is damaged.
• Always position the jack only at the designated lift points. The jack bracket must securely engage the sill.
• Use only jacks approved for the Volkswagen ID.4. Using incompatible jacks may cause instability.
• Ensure the surface is level and firm. Use a stable base if necessary.
• On slippery surfaces, place a non-slip material under the jack.
• Never place any part of your body under the vehicle when it is supported only by the jack.
• If work under the vehicle is required, always use additional support stands.

Correct handling of wheel bolts and proper use of the jack are essential for safe maintenance and reliable operation of the Volkswagen ID.4.
