Volkswagen ID.4: Fuse table for fuses in the hood space
Volkswagen ID.4 2021-2026 (E21) Owner's Manual / Fuse table for fuses in the hood space
The table below shows fuse assignments relevant to the driver in the Volkswagen ID.4. The first column indicates the fuse position, while additional columns describe the current rating, fuse type, and protected system.
Please note that fuse layouts in the Volkswagen ID.4 may vary depending on country specifications and optional equipment. For precise fuse allocation, consult qualified specialists. Volkswagen recommends contacting an authorized Volkswagen dealer or service facility.
Fuse assignment

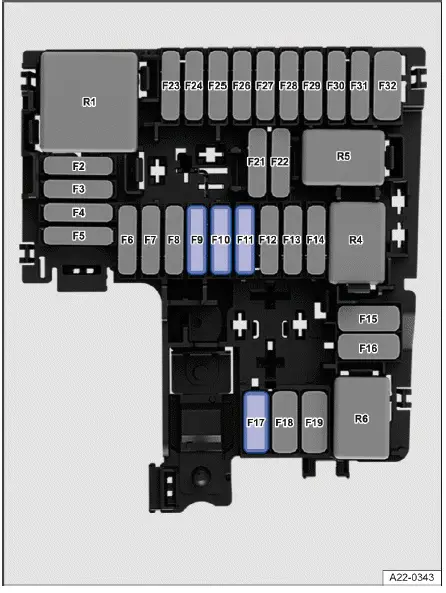

Fig. 1 In the hood space: Fuse locations.
Fuse location → fig. 1 :
F9 15 A, ATO, horn.
F10 30 A, ATO, front left windshield wiper.
F11 7.5 A, ATO, air conditioning system.
F17 40 A, MAXI+, windshield defroster.
Volkswagen ID.4 2021-2026 (E21) Owner's Manual
