Volkswagen ID.4: Headlight range control

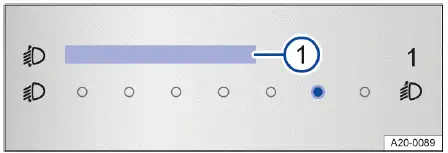

Fig. 1 In the Infotainment system: Touch control for headlight range control.

1. Touch control for the headlight range control.

In the Volkswagen ID.4, the headlight range control system allows precise adjustment of the dipped beam angle according to the current vehicle load. This ensures optimal road illumination for the driver while preventing glare for oncoming traffic, which is especially important for safety during night driving.

Depending on the configuration of your Volkswagen ID.4, the headlight range can be conveniently adjusted through the Infotainment system → fig. 1 -1-, → .

Manual headlight range control

Adjustment using the touch interface in the Infotainment system of the Volkswagen ID.4:

1. Tap the Vehicle function keys.

2. Select the Low beam headlight function to access the Headlight range control menu → fig. 1 -1-.

3. Choose the appropriate setting based on the current load condition of the vehicle.

Setting options in the Infotainment system

Front seat occupied and luggage compartment empty.

All seats occupied and luggage compartment empty.

All seats occupied and luggage compartment fully loaded.

Trailer mode with low drawbar load.

Only driver seat occupied and luggage compartment fully loaded.

Trailer mode with maximum drawbar load.

Dynamic headlight range control

In Volkswagen ID.4 models equipped with dynamic headlight range control, manual adjustment is not required. The system automatically adapts the headlight beam to changes in vehicle load when the headlights are switched on → . This ensures consistent visibility and maximum safety without driver intervention.

WARNING

Incorrect load distribution in the Volkswagen ID.4 may alter the vehicle’s angle, causing the headlights to dazzle other road users. This can result in serious accidents or fatal injuries.

• Always adjust the headlight beam according to the vehicle load to avoid blinding other drivers.

WARNING

If the headlight range control system in the Volkswagen ID.4 is faulty or not functioning correctly, it may lead to dangerous glare for other road users.

• Have the system inspected immediately by an authorized Volkswagen dealer or qualified service center.
