Volkswagen ID.4: High-level brake light

High-level brake light ID4

Removing and installing high-level brake light

High-level brake light bulb - M25- is integrated in rear spoiler and cannot be renewed individually.

Important

• Must be renewed along with spoiler trim.
• ⇒ General body repairs, exterior; Rep. gr. 66 ; Spoiler; Removing and installing spoiler trim

High-level brake light ID5

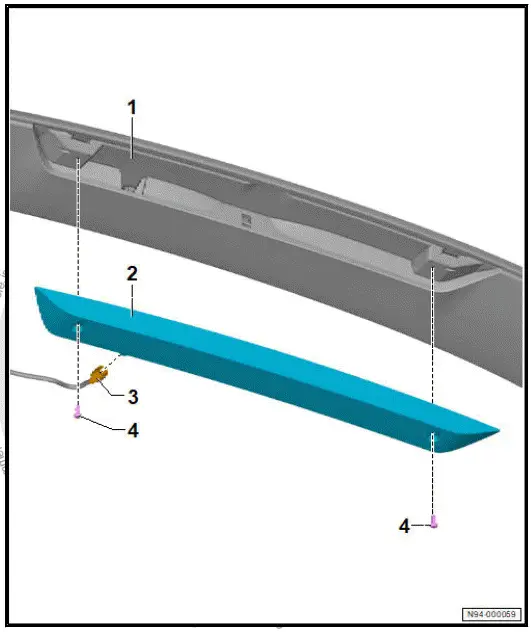

Assembly overview - high-level brake light

1. Spoiler
2. High-level brake light bulb - M25-

• With wiring harness
• ⇒ Rep. gr. 94 ; Removing and installing high-level brake light bulb [M25]

3. Electrical connector
4. Bolt

• Qty. 2
• 2.5 Nm

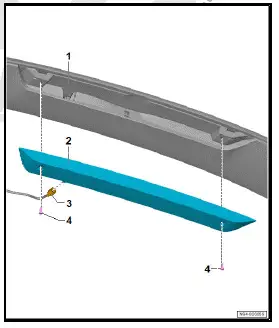

Removing and installing high-level brake light bulb [M25]

High-level brake light bulb - M25- will be referred to hereafter as "high-level brake light".

Removing

• Remove carrier for spoiler trim ⇒ General body repairs, exterior; Rep. gr. 66 ; Spoiler; Removing and installing carrier for spoiler trim .
• Unscrew bolts -4-.
• Remove high-level brake light -2- from spoiler -1-.

Installing

Install in the reverse order of removal, observing the following:

NOTICE

Risk of damage to high-level brake light from water ingress.

• When installing high-level brake light, make sure it is correctly seated.

• ⇒ Rep. gr. 94 ; Assembly overview - high-level brake light
