Volkswagen ID.4: Horn
Volkswagen ID.4 (E21) 2021-2026 Service Manual / Electrical system / Gauges, instruments / Horn

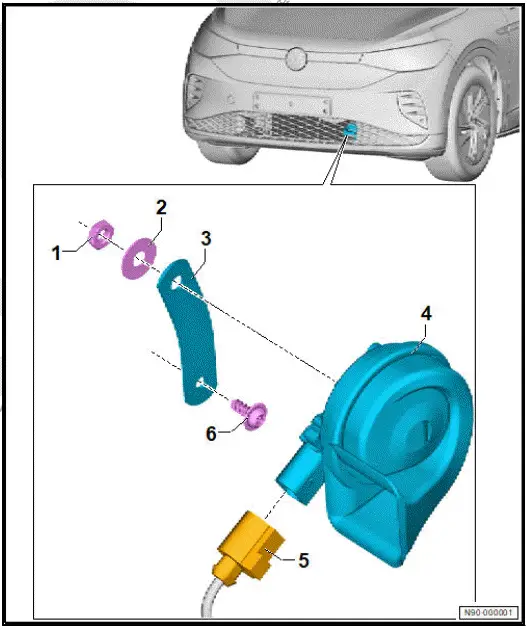

Assembly overview - horn
- Nut
- 14 Nm
- Washer
- Bracket for horn or dual tone horn - H1-
- Horn or dual tone horn - H1-
- ⇒ Rep. gr. 90 ; Removing and installing horn or dual tone horn [H1]
- Electrical connector
- Bolt
- 6 Nm
Removing and installing horn or dual tone horn [H1]
The horn or dual tone horn - H1- will henceforth be referred to as "horn".
Removing
- Remove bumper cover ⇒ General body repairs, exterior; Rep. gr. 63 ; Front bumper; Removing and installing bumper cover .
- Unscrew bolt -3-.
- Remove horn -2-.
- Disconnect electrical connector -1-.
- Remove horn -2-.
![Volkswagen ID.4. Removing and installing horn or dual tone horn [H1]](images/manuals/353/volkswagen_id_4_horn_2464.webp)
Installing
Install in reverse order of removal, observing the following:
Tightening torques
- ⇒ Rep. gr. 90 ; Assembly overview - horn
Volkswagen ID.4 (E21) 2021-2026 Service Manual
