Volkswagen ID.4: Overhead view camera

Calibrating overhead view camera system

Special tools and workshop equipment required

• Calibration system -VAS 721 001-

Preparation

Important

• Observe ⇒ Rep. gr. 98; Necessity of calibration.
• There must be no entries in the event memory that would hinder calibration.

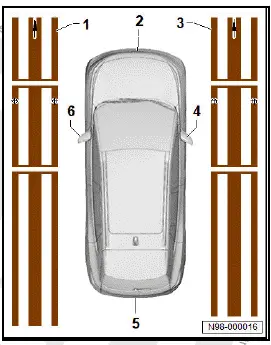

Overview of assembled calibration unit -VAS 721 001-

1. Left calibration panel from calibration system -VAS 721 001-
2. Front overhead view camera -R243-
3. Right calibration panel from calibration system -VAS 721 001-
4. Right overhead view camera -R245-
5. Rear overhead view camera -R246-
6. Left overhead view camera -R244-

• Check camera images on display unit.
• Check cameras, holders and fasteners for damage, manipulation and secure fit.
• Read and clear event memory using ⇒ Vehicle diagnostic tester.
• Roll out calibration fields on left and right next to vehicle.

Important

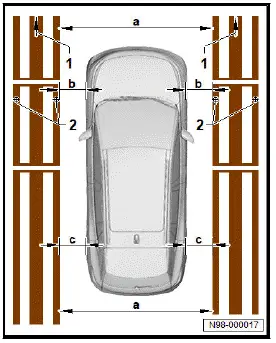

• Arrows -1- must point in direction of travel.

• Install end strips to front and rear of calibration fields.
• Align calibration fields on left and right next to vehicle.

Important

• Crosshair -2- must be centred to the front wheel on both sides of the vehicle.
• Dimension -a- = 2000 mm - 2500 mm +-5 mm must be the same at front and rear.
• Dimension -b- must be the same on both sides.
• Dimension -c- must be the same on both sides.

Calibrating

Important

• ⇒ Vehicle diagnostic tester connected.

• Carry out function "Calibrate overhead view camera system" using ⇒ Vehicle diagnostic tester ⇒ Rep. gr. 00; Access to diagnoses.
