Volkswagen ID.4: Overview of fitting locations

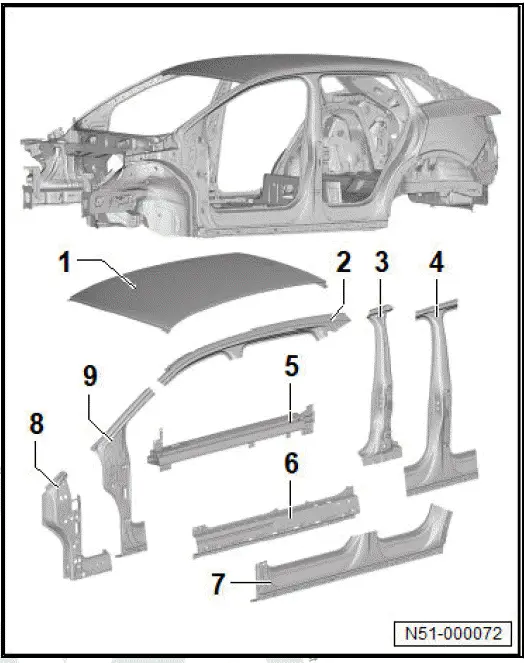

Overview of fitting locations - centre of body

1. Roof

• ⇒ o3.1 verview - vehicle without glass panel"
• ⇒ o3.2 verview - vehicle with glass panel"
• ⇒ Rep. gr. 51; Renewing roof - vehicle without glass panel
• ⇒ Rep. gr. 51; Renewing roof - vehicle with glass panel

2. Roof side member

• ⇒ o3.3 verview - roof side member"
• ⇒ Rep. gr. 51; Renewing roof side member

3. B-pillar reinforcement

• ⇒ Rep. gr. 51; Assembly overview - B-pillar reinforcement
• ⇒ Rep. gr. 51; Renewing B-pillar reinforcement

4. B-pillar

• ⇒ o5.1 verview - B-pillar"
• ⇒ Rep. gr. 51; Renewing B-pillar

5. Side panel reinforcement (crash bar)

• ⇒ o6.3 verview - side panel reinforcement (crash bar)"
• ⇒ Rep. gr. 51; Renewing side member reinforcement (crash bar)

6. Side member reinforcement

• ⇒ o6.2 verview - side member reinforcement"
• ⇒ Rep. gr. 51; Renewing side member reinforcement

7. Outer side member

• ⇒ o6.1 verview - outer side member"
• ⇒ Rep. gr. 51; Renewing outer side member

8. A-pillar reinforcement

• ⇒ o4.2 verview - A-pillar reinforcement"
• ⇒ Rep. gr. 51; Renewing A-pillar reinforcement, part section

9. A-pillar

• ⇒ o4.1 verview - A-pillar"
• ⇒ Rep. gr. 51; Renewing A-pillar
