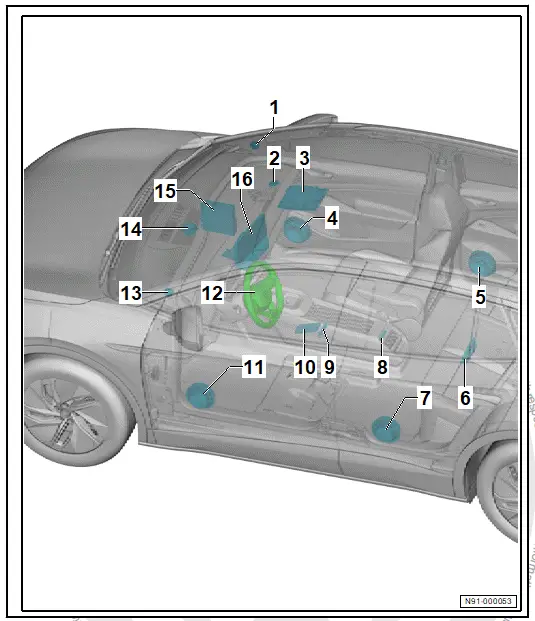

Volkswagen ID.4: Overview of fitting locations - components/control units in centre section of vehicle

Overview shows left-hand drive vehicle as an example

1. Front right treble loudspeaker - R22-

• ⇒ Rep. gr. 91 ; Removing and installing front treble loudspeakers [R20]/[R22]

2. External vehicle communication aerial 2 - R394- Data transmission aerial - R180-

•  ⇒ Rep. gr. 91 ; Removing and installing data transmission aerial

3. Front roof module - WX3-

• Depending on equipment/ version
• With telephone microphone - R38-
• With emergency assistance call button - E276-
• Can only be renewed together with front roof module - WX3-
• ⇒ Electrical system; Rep. gr. 96 ; Controls; Removing and installing front roof module [WX3]

4. Bass loudspeaker, front right - R23-

• ⇒ Rep. gr. 91 ; Removing and installing front bass loudspeakers

5. Rear right broadband loudspeaker - R386-

• ⇒ Rep. gr. 91 ; Removing and installing rear bass loudspeakers

6. Emergency call module control unit and communication unit - J949-

• With emergency battery, telematics - A16-
• ⇒ Rep. gr. 91 ; Removing and installing emergency battery, telematics [A16]
• ⇒ Rep. gr. 91 ; Removing and installing emergency call module control unit and communication unit [J949]

7. Rear left broadband loudspeaker - R385-

• ⇒ Rep. gr. 91 ; Removing and installing rear bass loudspeakers

8. USB charging socket 1 - U37-

• ⇒ Rep. gr. 91 ; Removing and installing USB charging socket 1 [U37]

9. USB connection 1 - U41-

• ⇒ Rep. gr. 91 ; Removing and installing USB connection 1 [U41]

10. Charging unit 1 for mobile devices - J1146-

• ⇒ Rep. gr. 91 ; Removing and installing charging unit 1 for mobile devices [J1146]

11. Bass loudspeaker, front left - R21-

• ⇒ Rep. gr. 91 ; Removing and installing front bass loudspeakers

12. Multifunction steering wheel

• Depending on equipment/version
• With multifunction buttons on left in steering wheel - E440- with multifunction steering wheel control unit - J453-
• With multifunction buttons on right in steering wheel - E441-
• With control unit for steering wheel contact detection - J1158-
• ⇒ Rep. gr. 91 ; Assembly overview - multifunction steering wheel
• ⇒ Rep. gr. 91 ; Removing and installing multifunction buttons [E440]/[E441]
• ⇒ Rep. gr. 91 ; Removing and installing control unit for steering wheel contact detection [J1158]

13. Front left treble loudspeaker - R20-

• ⇒ Rep. gr. 91 ; Removing and installing front treble loudspeakers [R20]/[R22]

14. Centre loudspeaker

• With loudspeaker for emergency call module - R335-
• ⇒ Rep. gr. 91 ; Removing and installing loudspeaker for emergency call module [R335]

15. Information electronics control unit 1 - J794-

• ⇒ Rep. gr. 91 ; Removing and installing control unit 1 for information electronics [J794]
• ⇒ "4.2.2 Removing and installing bracket for control unit 1 for information electronics [J794]",

16. Display unit for front information display and operating unit control unit - J685-

•  ⇒ Rep. gr. 91 ; Removing and installing control unit for front display and information control panel [J685]
