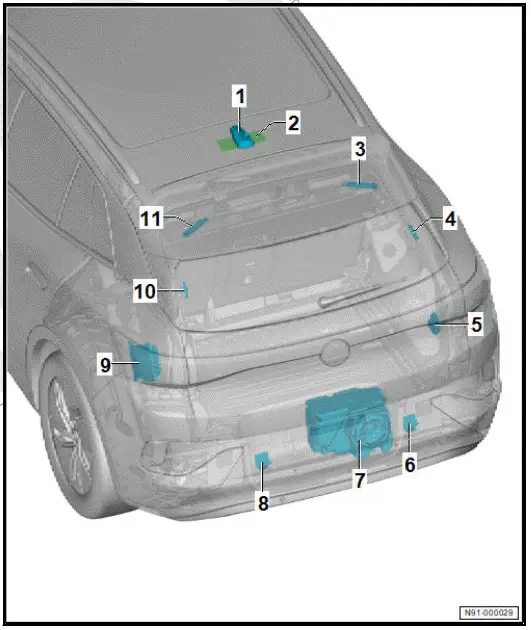

Volkswagen ID.4: Overview of fitting locations - components/control units in rear section of vehicle

The overview shows a left-hand drive vehicle as an example

1. Roof aerial - RX5-

• Depending on equipment/ version
• With external vehicle communication aerial - R387-
• With GPS aerial - R50-
• With LTE aerial 1 - R297-
•  ⇒ Rep. gr. 91 ; Removing and installing roof aerial [RX5]

2. Internet access control unit - J666-

• ⇒ Rep. gr. 91 ; Removing and installing internet access control unit [J666]

3. Radio aerial 2 - R93-

• ⇒ Rep. gr. 91 ; Removing and installing aerial module

4. Frequency modulation (FM) frequency filter in negative wire - R178-

• ⇒ Rep. gr. 91 ; Removing and installing frequency modulation (FM) frequency filters [R178/R179]

5. Aerial amplifier for mobile telephone - R86-

• ⇒ Rep. gr. 91 ; Removing and installing aerial amplifier for mobile telephone [R86]

6. LTE aerial 2 - R306-

• ⇒ Rep. gr. 91 ; Removing and installing LTE aerial

7. Subwoofer - R211-

• Depending on equipment/version
• ⇒ Rep. gr. 91 ; Removing and installing subwoofer [R211]

8.  LTE aerial 1 - R297-

• Depending on equipment/version
• ⇒ Rep. gr. 91 ; Removing and installing LTE aerial

9. Digital sound package control unit - J525-

• Depending on equipment/version
• ⇒ Rep. gr. 91 ; Removing and installing digital sound package control unit [J525]

10. Frequency modulation (FM) frequency filter in positive wire - R179-

• ⇒ Rep. gr. 91 ; Removing and installing frequency modulation (FM) frequency filters [R178/R179]

11. Aerial - R11- / aerial amplifier - R24-

• ⇒ Rep. gr. 91 ; Removing and installing aerial module
