Volkswagen ID.4: Potential equalisation lines

• Overview of fitting locations - potential equalisation lines, all-wheel drive
• Overview of fitting locations - potential equalisation lines, rear-wheel drive

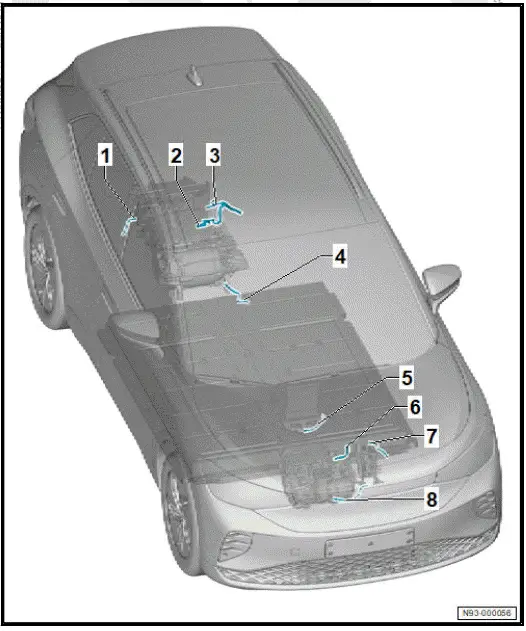

Overview of fitting locations - potential equalisation lines, all-wheel drive

Overview of fitting locations - potential equalisation lines, all-wheel drive

Overview of fitting locations - potential equalisation lines

1. Potential equalisation voltage converter - A19-

• ⇒ Rep. gr. 93 ; Assembly overview - voltage converter

2. Potential equalisation three-phase current drive - VX54-

• ⇒ Rep. gr. 93 ; Assembly overview - electric drive motor, rear motor

3. Potential equalisation charging unit 1 for high-voltage battery - AX4-

• ⇒ Rep. gr. 93 ; Assembly overview - charging unit for highvoltage battery

4. Potential equalisation of high-voltage battery 1 - AX2-

• ⇒ Rep. gr. 93 ; Assembly overview - high-voltage battery, removed

5. Potential equalisation high-voltage heater (PTC) - ZX17-

• ⇒ Heating, air conditioning; Rep. gr. 87 ; Front heater and air conditioning unit; Removing and installing high-voltage heater (PTC) [ZX17]

6. Potential equalisation three-phase current drive 2 - VX97-

• ⇒ Rep. gr. 93 ; Assembly overview - electric drive motor, front motor

7. Potential equalisation heater element (PTC) 3 - Z132-

• ⇒ Heating, air conditioning; Rep. gr. 87 ; Coolant circuit; Removing and installing PTC heater element 3 [Z132], all-wheel drive

8. Potential equalisation air conditioner compressor - VX81-

• ⇒ Heating, air conditioning system; Rep. gr. 87 ; Air conditioner compressor; Assembly overview - air conditioner compressor

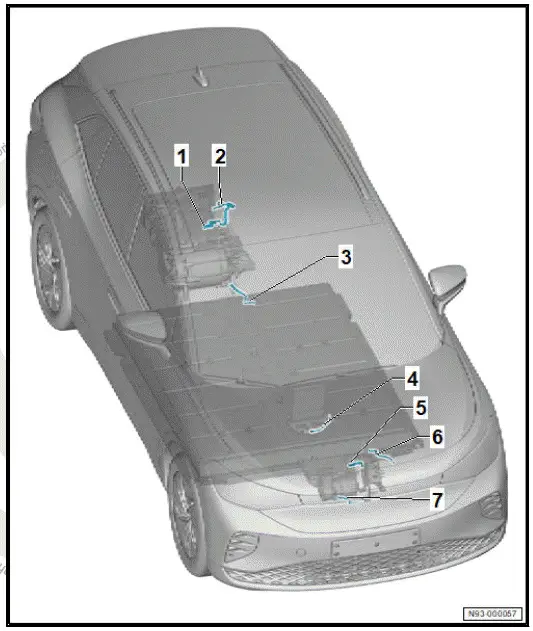

Overview of fitting locations - potential equalisation lines, rear-wheel drive

Overview of fitting locations - potential equalisation lines

1. Potential equalisation three-phase current drive - VX54-

• ⇒ Rep. gr. 93 ; Assembly overview - electric drive motor, rear motor

2. Potential equalisation charging unit 1 for high-voltage battery - AX4-

• ⇒ Rep. gr. 93 ; Assembly overview - charging unit for highvoltage battery

3. Potential equalisation of high-voltage battery 1 - AX2-

• ⇒ Rep. gr. 93 ; Assembly overview - high-voltage battery, removed

4. Potential equalisation high-voltage heater (PTC) - ZX17-

• ⇒ Heating, air conditioning; Rep. gr. 87 ; Front heater and air conditioning unit; Removing and installing high-voltage heater (PTC) [ZX17]

5. Potential equalisation voltage converter - A19-

• ⇒ Rep. gr. 93 ; Assembly overview - voltage converter

6. Potential equalisation heater element (PTC) 3 - Z132-

• ⇒ Heating, air conditioning; Rep. gr. 87 ; Coolant circuit; Removing and installing PTC heater element 3 [Z132], rear-wheel drive

7. Potential equalisation air conditioner compressor - VX81-

• ⇒ Heating, air conditioning system; Rep. gr. 87 ; Air conditioner compressor; Assembly overview - air conditioner compressor
