Volkswagen ID.4: Replacing bulbs in LED headlights

Preparations

Carry out the following steps in sequence when working on the lighting system of the Volkswagen ID.4:

1. Refer to the bulb replacement instructions and complete all preparatory steps.

2. Open the hood of the Volkswagen ID.4.

The headlight unit does not need to be removed to replace certain bulbs.

Replacing a bulb in a turn signal

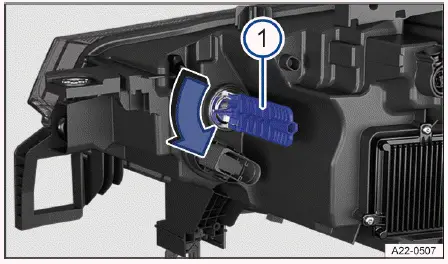

Fig. 1 In the right-side of the hood space: rear side of the headlights.

1. Turn signal bulb holder.

1. To remove the bulb holder, turn it in the direction of the arrow → fig. 1 -1-.

2. Replace the defective bulb with a new bulb of identical type and specification suitable for the Volkswagen ID.4.

3. Carefully reinstall the bulb holder into the headlight and turn it in the opposite direction of the arrow until secured → fig. 1 -1-.

4. Close the hood after completing the procedure.

The illustration shows the rear of the right headlight. The left headlight on the Volkswagen ID.4 is designed as a mirrored version.

Introduction

Due to ongoing development of the Volkswagen ID.4, equipment-specific fuse configurations and shared protection across multiple electrical systems, a complete fuse layout may not be fully documented at the time of publication.

For detailed and up-to-date fuse information, consult qualified professionals. Volkswagen recommends contacting an authorized Volkswagen dealer or service center.

In many cases, several electrical components in the Volkswagen ID.4 may be protected by a single fuse, while some systems may require multiple fuses for operation.

Only replace a fuse after the cause of the fault has been identified and resolved. If a new fuse blows shortly after replacement, the electrical system must be inspected by qualified specialists.

Fuses for emergency responders

One of the high-voltage fuses in the instrument panel fuse box of the Volkswagen ID.4 is marked with a special flag. This allows emergency responders to quickly disconnect power in critical situations. Never attempt to remove or replace this fuse yourself → . If this fuse fails, it must be serviced by qualified professionals.

WARNING

The high-voltage system in the Volkswagen ID.4 carries dangerous voltage that can cause electric shock, severe burns, or death.

• Never touch high-voltage wiring in the engine compartment.
• Do not attempt to repair or replace high-voltage fuses yourself.
• Always have such work carried out by authorized Volkswagen service specialists.

WARNING

Using incorrect fuses, repairing damaged fuses, or bypassing fuse protection can lead to electrical fires and severe damage to the Volkswagen ID.4.

• Replace fuses only with identical types in terms of rating, size, and color.
• Never repair or reuse damaged fuses.
• Do not use makeshift substitutes such as metal objects or wires.

NOTICE

High-voltage fuses marked with a special flag are strictly reserved for emergency use. Improper handling may damage the Volkswagen ID.4 electrical system.

• Do not remove or tamper with these marked fuses.
• If the high-voltage system shuts down, contact an authorized Volkswagen service facility immediately.

NOTICE

Replacing a fuse while the Volkswagen ID.4 is powered on or while electrical systems are active may result in serious damage.

• Always switch off the drive system and all electrical consumers before replacing a fuse.
• Ensure the vehicle cannot enter drive-ready mode during the procedure.

NOTICE

Installing a fuse with a higher current rating than specified can damage other components in the electrical system.

• Never use a fuse with a higher amperage rating than recommended.

NOTICE

Dirt or moisture entering the fuse box can lead to malfunctions in the Volkswagen ID.4 electrical system.

• Keep fuse boxes clean and dry at all times.
• Avoid creating short circuits.
• Ensure all fuse box covers are securely closed and undamaged.

There are additional fuses in the Volkswagen ID.4 that are not listed in this section. These should only be serviced or replaced by authorized Volkswagen technicians to ensure safety and system integrity.
