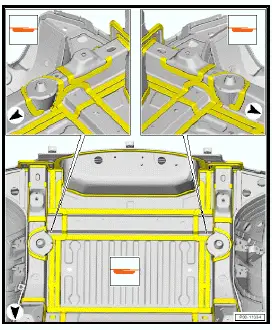

Volkswagen ID.4: Seam seals, underbody

Coarse seam seals:

Coarse seam seals require that the sealant be applied at least 20 mm wide and 2 mm high.

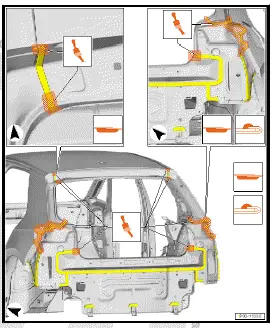

Seam seals, rear cross panel

Coarse seam seals:

Coarse seam seals require that the sealant be applied at least 20 mm wide and 2 mm high.

Fine seam seals: Fine seam seals require that the sealant extend at least 3 mm from the seam in each direction and must have a height of 2 mm.

Brushing and smoothing seals: Sealant in the marked areas must first be brushed and then smoothed following application.

When smoothing and brushing the sealing seam, ensure that the sheet metal edges which are to be protected are not exposed.

The metal must be covered with a sufficiently thick layer of PVC.
