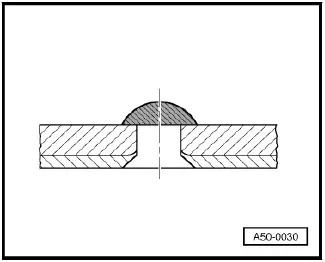

Volkswagen ID.4: Solid rivet

Important

• For all work, adjust the riveting tool to the respective material thickness. Insert staples into the punched holes to prevent the flanges from opening up after punching

Opening solid rivet

Perform separating cuts, as necessary.

♦ Grind off clinched head, and use riveting tool to push out solid rivet.

♦ Remove damaged part. Use a chisel for separating if necessary.

Inserting solid rivet

• Adapt new parts, apply adhesive, position new part on body, and fix it in position.

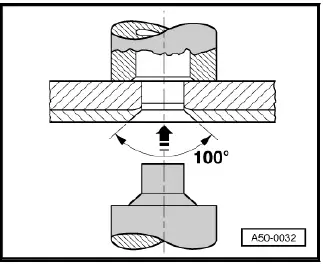

• Use the riveting tool to punch the flanges.
• During the punching process, perforation and embossing are done in a single step.

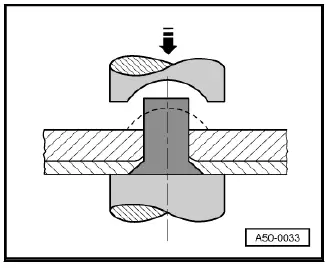

• Insert solid rivet and make clinched head using riveting tool.
• The riveting tool is equipped with the corresponding inserts for the different rivet diameters.
