Volkswagen ID.4: Technical data

Safety information and repair notes

Safety information

Observe safety information ⇒ Safety information and repair notes; Rep. gr. 00 ; Safety information .

Repair instructions

Observe repair instructions ⇒ Safety and repair instructions; Rep. gr. 00 ; Repair instructions .

Electrical components

Starting diagnosis

• 1. Front left vehicle level sender - G78/G289- / front right vehicle level sender - G76/G77- : basic setting

Designation in Workshop Manual/ Designation in vehicle diagnostic tester

Front left vehicle level sender - G78-/ Rotation angle sensor (front left) - G208-

Front right vehicle level sender - G289-/ Rotation angle sensor 2 (front right) - G1085-

Rear vehicle level sender - G76/G77-/ Rotation angle sensor 3 (rear) - G1086-

• 2. Electronically controlled damping control unit - J250- : renewing
• 3. Steering column electronics control unit - J527- : renewing
• 4. Wheel damping electronics: basic setting
• 5. Steering angle sender - G85- : basic setting
• 6. Power steering control unit - J500- /steering rack: renewing
• 7. Power steering control unit - J500- : calibrating end stops

1. Front left vehicle level sender - G78/G289- / front right vehicle level sender - G76/G77- : basic setting

• Diagnostic capable system
• 0014 - Wheel damping electronics
• 0014 - Wheel damping electronics, functions
• 0014 - Basic setting

2. Electronically controlled damping control unit - J250- : renewing

• Diagnostic capable system
• 0014 - Wheel damping electronics
• 0014 - Wheel damping electronics, functions
• 0014 - Replace control module

3. Steering column electronics control unit - J527- : renewing

• Diagnostic capable system
• 0016 - Steering column electronics - J527
• 0016 - Steering column electronics, functions
• 0016 - Replace control module

4. Wheel damping electronics: basic setting

• Diagnostic capable system
• 0014 - Wheel damping electronics
• 0014 - Wheel damping electronics, functions
• 0014 - Basic setting

5. Steering angle sender - G85- : basic setting

• Diagnostic capable system
• 0044 - Power Steering Control Module - J500
• 0044 - Power steering control module, functions
• 0044 - Basic setting

6. Power steering control unit - J500- /steering rack: renewing

• Diagnostic capable system
• 0044 - Power Steering Control Module - J500
• 0044 - Power steering control module, functions
• 0044 - Replace control module

7. Power steering control unit - J500- : calibrating end stops

• Diagnostic capable system
• 0044 - Power Steering Control Module - J500
• 0044 - Power steering control module, functions
• 0044 - Basic setting
• => Adapt end stops

Technical data

Test and adjustment values

42 - Rear axle

Important

• The correct suspension height must be assigned based on the PR number specified in the ⇒ ELSA vehicle data .

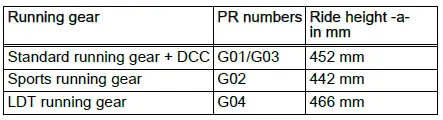

Adjustment figures (unladen position), ID.4

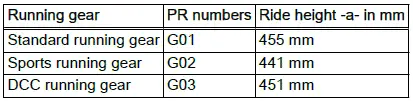

Adjustment figures (unladen position), ID.5

Control unitsFront suspension
