Volkswagen ID.4: Cleaning and changing wiper blades

The Volkswagen ID.4 is equipped from the factory with high-quality windshield wiper blades featuring a graphite coating. This special coating ensures smooth and quiet movement across the glass surface. If the graphite layer becomes worn or damaged, it may result in increased noise and reduced wiping efficiency, which can affect visibility during driving.

Regularly inspect the condition of the wiper blades on your Volkswagen ID.4. If the blades leave streaks, produce noise, or show visible signs of wear, they should either be cleaned or replaced immediately → .

Damaged or heavily worn wiper blades must be replaced without delay to maintain optimal safety. Replacement parts for the Volkswagen ID.4 are available from qualified professionals. Volkswagen recommends contacting an authorized Volkswagen dealer or service center to ensure proper compatibility and installation.

Cleaning the wiper blades

Windshield wiper: Before cleaning, move the windshield wiper arms of the Volkswagen ID.4 into the service position to allow safe access.

1. Carefully lift the wiper arms, holding them only at the point where they connect to the wiper blade.

2. Clean the wiper blades gently using a damp sponge or soft cloth to remove dirt and debris → .

3. After cleaning, carefully place the wiper arms back onto the windshield of your Volkswagen ID.4.

Changing the windshield wiper blades

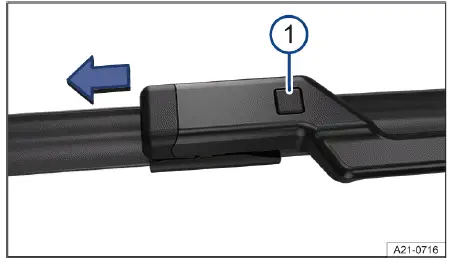

Fig. 1 Changing the windshield wiper blades.

1. Wiper blade release button.

1. Move the windshield wiper arms of the Volkswagen ID.4 into the service position before lifting them.

2. Lift the wiper arms carefully, holding them only at the attachment point.

3. Press and hold the release button while simultaneously removing the wiper blade in the direction indicated by the arrow → fig. 1 -1-.

4. Install a new wiper blade of the same type and length onto the wiper arm until it clicks securely into place.

5. Gently return the wiper arms to the windshield surface.

Changing the rear window wiper blade

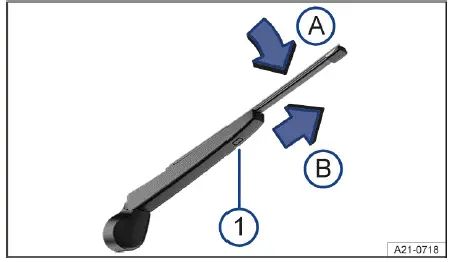

Fig. 2 Changing the rear window wiper blade.

1. Wiper blade release button.

1. To lift the rear wiper arm on the Volkswagen ID.4, hold it only at the connection point with the blade.

2. Carefully lift and fold out the wiper arm.

3. Press and hold the release button → fig. 2 -1-.

4. Tilt the wiper blade toward the arm → fig. 2 A and remove it in the direction of arrow B. Slight additional force may be required.

5. Install a new wiper blade of identical size and design by sliding it onto the arm in the opposite direction of the arrow until it locks into place → fig. 2 B. Ensure the blade is properly aligned.

6. Carefully lower the wiper arm back onto the rear window.

WARNING

Worn, damaged, or dirty wiper blades significantly reduce visibility and increase the risk of accidents when driving the Volkswagen ID.4.

• Always clean contaminated wiper blades promptly.
• Replace wiper blades immediately if they no longer provide a clear wiping pattern.

NOTICE

Improper handling of the wiper system in the Volkswagen ID.4 may result in damage to the windshield, wiper arms, or blade mechanism.

• Never operate the wipers on a dry windshield.
• Always use suitable washer fluid to reduce friction and wear.
• Ensure correct installation of replacement wiper blades to avoid malfunction.

Using unsuitable cleaning agents on the Volkswagen ID.4 wiper blades or window surfaces can lead to material damage and reduced performance.

• Never clean the wiper blades, windshield, or windows of your Volkswagen ID.4 using fuel, nail polish remover, paint thinner, or similar aggressive chemicals.
• Avoid using rough sponges, abrasive pads, or sharp objects when cleaning the wiper blades, as this may damage the graphite coating and reduce wiping efficiency.

If wax residue remains on the windshield or rear window of your Volkswagen ID.4 after using automatic car washes or polishing products, the wiper blades may produce noise or leave streaks. Remove such residue using a suitable glass cleaner or specialized cleaning cloths to restore proper visibility.

Introduction

Before replacing any bulbs in the Volkswagen ID.4, it is essential to determine whether the vehicle is equipped with traditional incandescent bulbs or modern LED lighting. In many cases, standard bulbs can be replaced independently. However, LED lighting systems in the Volkswagen ID.4 are integrated and cannot be serviced or replaced individually by the user.

If one or more LEDs fail, this may indicate a broader issue within the lighting module. In such cases, the lighting system of the Volkswagen ID.4 should be inspected and serviced by qualified professionals. Volkswagen recommends contacting an authorized Volkswagen dealer or service center for proper diagnosis and repair.

Operating the Volkswagen ID.4 with faulty exterior lighting may violate legal requirements and significantly reduce driving safety.

Additional bulb specifications

Some bulbs installed in the Volkswagen ID.4 may have manufacturer-specific specifications that differ from standard bulbs. The exact designation can typically be found on the bulb base or glass housing, ensuring the correct replacement part is selected.

WARNING

If the lighting system of the Volkswagen ID.4 is not used correctly according to weather and visibility conditions, the road may not be adequately illuminated. Additionally, the vehicle may not be visible to other road users, increasing the risk of accidents and serious or fatal injuries.

• Regularly inspect all exterior lights and turn signals on your Volkswagen ID.4.
• Immediately repair or replace any faulty lighting components.

WARNING

Improper handling during bulb replacement in the Volkswagen ID.4 engine compartment can lead to accidents and serious injuries.

• Always follow the specified procedures and observe all safety precautions.
• Do not attempt bulb replacement if you are unfamiliar with the required steps.
• If in doubt, have the work carried out by a qualified specialist. Volkswagen recommends visiting an authorized Volkswagen service facility.

WARNING

During bulb replacement, sharp edges within the housing and hot or pressurized bulbs may cause serious injuries.

• Only replace bulbs once they have completely cooled down.
• Wear protective gloves to prevent injury while working on the Volkswagen ID.4 lighting system.

NOTICE

Ingress of water into the headlight housing of the Volkswagen ID.4 can damage sensitive electrical components.

• After replacing a bulb, always reinstall all protective covers on the headlight housing correctly.
• Ensure that all covers are securely fastened to maintain proper sealing and protection.
