Volkswagen ID.4: Exiting a parking space

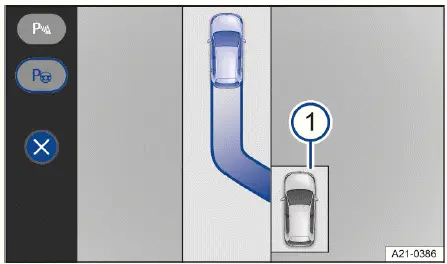

Fig. 1 Infotainment system: exiting procedure (general example).

1. Volkswagen ID.4 positioned in a parallel parking space.

1. Activate the drive system of the Volkswagen ID.4.

2. Press and hold the brake pedal securely.

3. Activate Park Assist Plus in the Volkswagen ID.4 via the Infotainment system.

4. Turn on the indicator for the side in which the Volkswagen ID.4 should exit the parking space.

5. Tap on the Infotainment system screen.

6. Release the steering wheel to allow the Volkswagen ID.4 to steer automatically.

7. Release the brake pedal.

8. Carefully monitor the instructions and visual cues displayed in the Infotainment system.

Park Assist Plus in the Volkswagen ID.4 will guide the vehicle safely out of the parking space.

A notification message and an audible signal confirm that the Volkswagen ID.4 has successfully exited the parking space.

Control of the Volkswagen ID.4 is then returned to the driver in neutral (N).

9. Take full control of the Volkswagen ID.4 and continue driving in the intended direction → .

WARNING

When exiting a parking space with the Volkswagen ID.4, there is a risk of entering moving traffic. This can result in accidents, serious injuries, or even fatalities.

• Only leave the parking space when traffic conditions allow safe maneuvering.

WARNING

Park Assist Plus in the Volkswagen ID.4 does not support exiting perpendicular parking spaces, as surrounding traffic and obstacles may not be fully detected.

• Exit perpendicular parking spaces manually and remain highly attentive to surrounding traffic.

The path displayed in the Infotainment system during the maneuver is only a general representation and may differ from the actual movement of the Volkswagen ID.4.

Introduction

Park Assist (Park Assist Plus) with memory function in the Volkswagen ID.4 enables automated parking in frequently used locations such as garages or driveways by storing and replaying a previously driven route.

The availability of this advanced function in the Volkswagen ID.4 depends on the specific equipment level.

System function

Park Assist Plus with memory function extends the capabilities of the standard Park Assist system in the Volkswagen ID.4.

The system uses the front camera to analyze the surroundings and record a parking path over a distance of up to approximately 50 m (164 ft). Once saved, the Volkswagen ID.4 can autonomously follow this route to enter or exit the parking space.

The driver must continuously supervise the environment around the Volkswagen ID.4 → .

Automatic braking support in the Volkswagen ID.4 may activate if obstacles are detected or in potentially hazardous situations.

Fully automated parking using the memory function may be restricted or prohibited in certain regions. Always follow local regulations when using this feature in the Volkswagen ID.4.

For optimal operation, ensure that all sensors and cameras of the Volkswagen ID.4 are clean and unobstructed, and always remain attentive even when using automated parking systems.

Requirements

✓ For the Volkswagen ID.4, accurate geocoordinates must be available to determine the precise vehicle position.

✓ There must be sufficient space for maneuvering the Volkswagen ID.4. In some cases, the vehicle may need to move a few meters in order to align with the previously calibrated driving path.

Driving with a trailer

Park Assist Plus with memory function in the Volkswagen ID.4 cannot be activated if a trailer is connected to the electrical system.

If the trailer hitch was not installed at the factory, the Park Assist Plus memory function in the Volkswagen ID.4 must be manually switched off before towing a trailer.

WARNING

Park Assist Plus with memory function in the Volkswagen ID.4 is an assistance feature and does not replace the driver’s awareness. The system operates only within its technical limits and may not detect all situations, may react with delay, or may respond in an unintended way. Improper use can lead to accidents, serious injuries, or even fatal outcomes.

• Always remain attentive and never rely solely on the Volkswagen ID.4 assistance system. The driver retains full responsibility.
• Operate the Volkswagen ID.4 only if you hold a valid driving license.
• Follow all applicable traffic regulations in your region.
• Do not leave the driver’s seat while the automatic parking process is active.
• Continuously monitor both the parking maneuver and surrounding traffic conditions.
• In dangerous situations, immediately apply the brake pedal to regain control of the Volkswagen ID.4.
• Do not use the memory parking function in areas without clear structural boundaries, such as near water edges or steep inclines without protection.

WARNING

The Volkswagen ID.4 system has limited ability to react to rapidly changing environmental conditions. This limitation may result in collisions, vehicle damage, or serious and fatal injuries.

• Do not use Park Assist Plus in moving traffic at speeds exceeding 80 km/h (50 mph).
• Maintain a safe distance of at least one vehicle length from intersections.
• Avoid parking on the opposite side of the road or across multiple lanes with the Volkswagen ID.4.

WARNING

During automatic parking, the Volkswagen ID.4 may swing outward or enter adjacent lanes, increasing the risk of accidents and severe injuries.

• Closely observe the surroundings and be prepared to brake immediately if necessary.

WARNING

If road conditions are icy or slippery, the Volkswagen ID.4 may not complete the parking maneuver safely and could lose traction. This may result in accidents or vehicle damage.

• Do not use Park Assist Plus with memory function under such conditions.

Park Assist Plus with memory function in the Volkswagen ID.4 may not be available in certain regions, even within the same country.

• Always check the Infotainment system display in the Volkswagen ID.4 for system availability and current status.

For reliable operation, ensure that all sensors and cameras of the Volkswagen ID.4 are clean and unobstructed, and always use the system as a support tool alongside attentive driving.
