Volkswagen ID.4: Changing the camera perspective

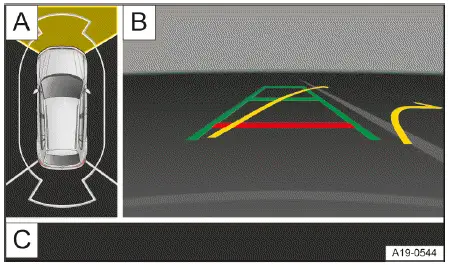

Fig. 1 Infotainment system: Area View in the "Front angled parking" mode (general example).

1. Bird's-eye view of the Volkswagen ID.4 with selectable screen zones.
2. Live camera image display.
3. Area for Area View function keys in the Volkswagen ID.4 Infotainment system.

Switching between camera images

1. Tap the function keys located along the edge of the display to switch between different camera perspectives in the Volkswagen ID.4 → fig. 1 C.

Sections of the screen

The Infotainment display in the Volkswagen ID.4 is divided into two main sections → fig. 1 :

Left screen A

The Volkswagen ID.4 is shown from a bird’s-eye perspective. Selecting a highlighted area allows you to change the corresponding camera view on the right side.

Right screen B

Depending on the selected section from the left display, a detailed camera image is shown, helping the driver of the Volkswagen ID.4 better understand the surroundings.

Screen display

Front perpendicular parking view for precise maneuvering.

Rear perpendicular parking view in the Volkswagen ID.4.

Front cross traffic monitoring view for improved safety.

Rear cross traffic camera view for detecting approaching vehicles.

Switch to trailer or off-road support mode depending on equipment and region.

Introduction

Park Assist (Park Assist Plus) in the Volkswagen ID.4 identifies suitable parking spaces and can automatically control the steering and vehicle movement during the parking process, making parking significantly easier and safer.

The availability of Park Assist Plus in the Volkswagen ID.4 depends on the specific equipment and configuration.

System function

Park Assist Plus in the Volkswagen ID.4 takes control of steering, gear selection, acceleration, and braking → , → .

Available functions

• Detection and display of suitable parking spaces for the Volkswagen ID.4.
• Selection or adjustment of the parking scenario via the Infotainment system.
• Automatic parking into parallel spaces or perpendicular parking bays.
• Assistance when exiting a parallel parking space (perpendicular exit is not supported).

The driver must always monitor the surroundings of the Volkswagen ID.4 during operation → .

Automatic braking support in the Volkswagen ID.4 may activate if obstacles are detected or in potentially dangerous situations.

Automatic hands-free parking with Park Assist Plus may be restricted or prohibited in certain regions. Always comply with local regulations when using the Volkswagen ID.4 parking systems.

Driving with a trailer

Park Assist Plus in the Volkswagen ID.4 cannot be used when a trailer is connected to the electrical system.

If the trailer hitch was not factory-installed, the Park Assist Plus function must be manually switched off before towing.

WARNING

Park Assist Plus in the Volkswagen ID.4 is an assistance feature and does not replace driver attention. The system may not detect all situations or may respond incorrectly or with delay. Improper use can lead to accidents, serious injuries, or death.

• Always stay attentive and maintain full control of the Volkswagen ID.4.
• Ensure you hold a valid driving license when operating the vehicle.
• Follow all applicable traffic regulations.
• Do not leave the driver’s seat during automatic parking.
• Continuously monitor the parking process and surrounding traffic.
• Manually activate the turn signals when required.
• Brake immediately using the brake pedal in hazardous situations.
• Avoid parking near dangerous areas such as open edges or steep drops without barriers.

WARNING

The Volkswagen ID.4 parking system has limited ability to react to rapidly changing conditions. This may result in collisions or serious injury.

• Do not use Park Assist Plus at speeds exceeding 80 km/h (50 mph).
• Maintain a safe distance from intersections.
• Avoid parking across multiple lanes or on the opposite side of the road.

WARNING

During automatic parking, the Volkswagen ID.4 may swing outward or enter adjacent lanes, creating potential hazards.

• Monitor the surroundings carefully and intervene if necessary.

WARNING

On icy or slippery surfaces, the Volkswagen ID.4 may not complete parking maneuvers safely and could slide.

• Avoid using Park Assist Plus under such conditions.

NOTICE

Park Assist Plus in the Volkswagen ID.4 may suggest unsuitable parking spaces due to missing boundaries or surrounding obstacles, increasing the risk of damage.

• Avoid parking near overhanging objects such as loading docks or trailers.
• Exercise extra caution in parking garages, especially near pillars.

Park Assist Plus may not be available in certain regions even within the same country.

• Always check the Infotainment system display in the Volkswagen ID.4 for system availability and status.

For optimal results, always keep cameras and sensors of the Volkswagen ID.4 clean and use assistance systems only as a support to attentive driving.
