Volkswagen ID.4: Fuse table for fuses in the instrument panel
The fuse table for the Volkswagen ID.4 instrument panel provides an overview of important electrical circuits and their protection. The first column lists fuse positions, while additional columns specify ratings and functions.
Fuse allocation may vary depending on the configuration of your Volkswagen ID.4. For detailed information, consult an authorized Volkswagen dealer or service specialist.
Fuse assignment

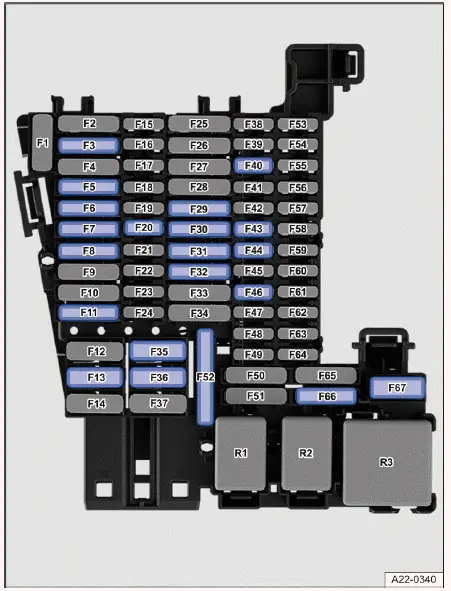

Fig. 1 Fuse assignment in the instrument panel.
Fuse location → fig. 1 :
F5 25 Amp, ATO, exterior lighting on the left side.
F6 30 Amp, ATO, interior lighting system.
F7 30 Amp, ATO, seat heating.
F13 40 A, MAXI+, central locking system.
F20 10 Amp, MINI, telephone system.
F30 20 A, ATO, infotainment system functions.
F32 25 Amp, ATO, exterior lighting on the right side.
F35 40 A, MAXI+, rear seat heating.
F36 40 A, MAXI+, blower control unit.
F40 10 Amp, MINI, anti-theft alarm system.
F43 7.5 Amp, MINI, climate control interface, rear window defroster relay.
F44 7.5 A, MINI, light switch (low beam), rain/light sensor, ambient lighting, ID. Light system.
F46 10 Amp, MINI, display and infotainment control panel.
F52 20 Amp, ATO, power sockets.
F66 15 Amp, ATO, rear window wiper.
F67 30 A, MAXI+, rear window heating system.
Fuse locations in Volkswagen ID.4 vehicles equipped with a factory-installed trailer hitch:
F3 25 A, ATO, left trailer detection control module.
F11 15 A, ATO, trailer detection control module.
F29 15 A, ATO, trailer detection control module.
F31 25 A, ATO, right trailer detection control module.
Power windows and seat systems in the Volkswagen ID.4 may be protected by circuit breakers or control modules that automatically reset after overload conditions, such as when windows are frozen.
